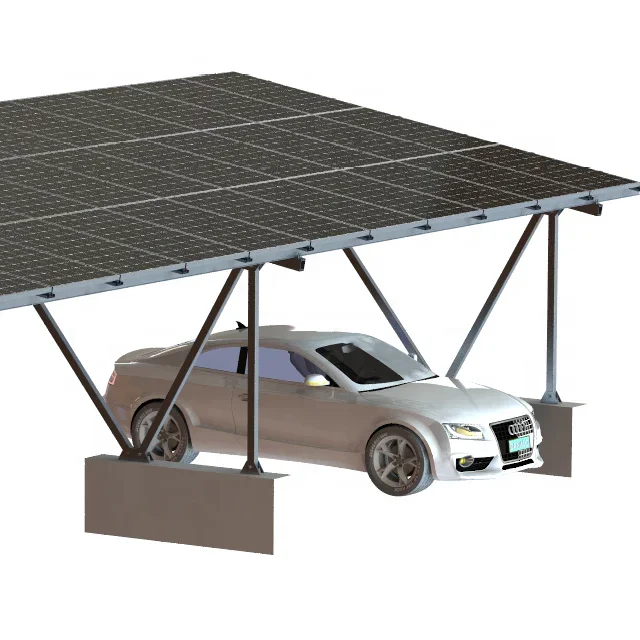

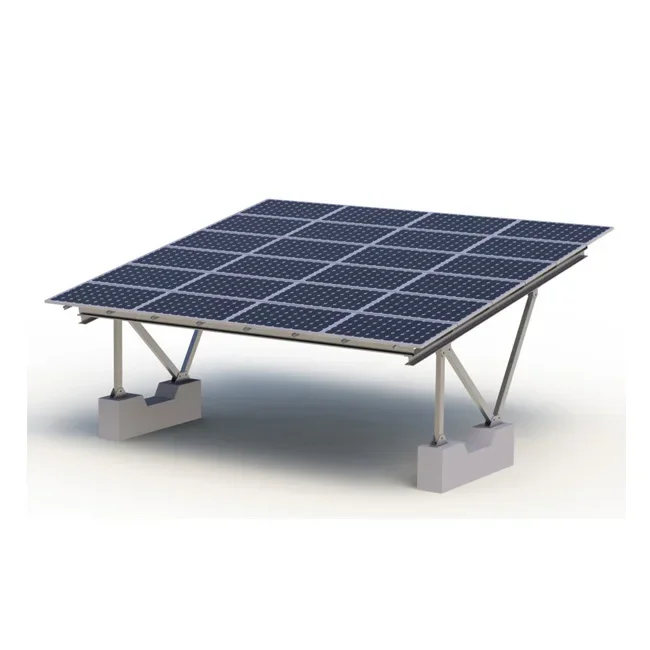

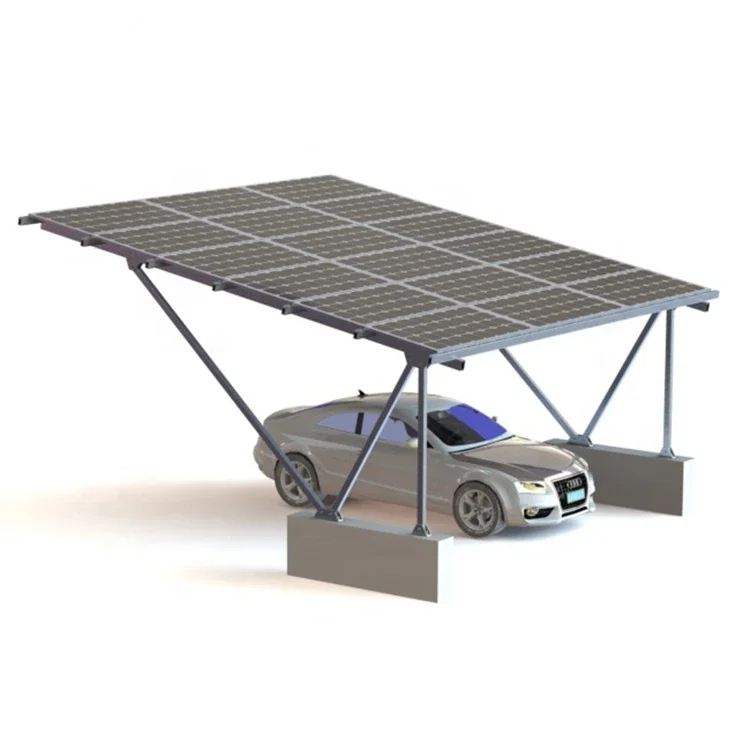

SFS-CP-05 SunRack Carport Mounting System

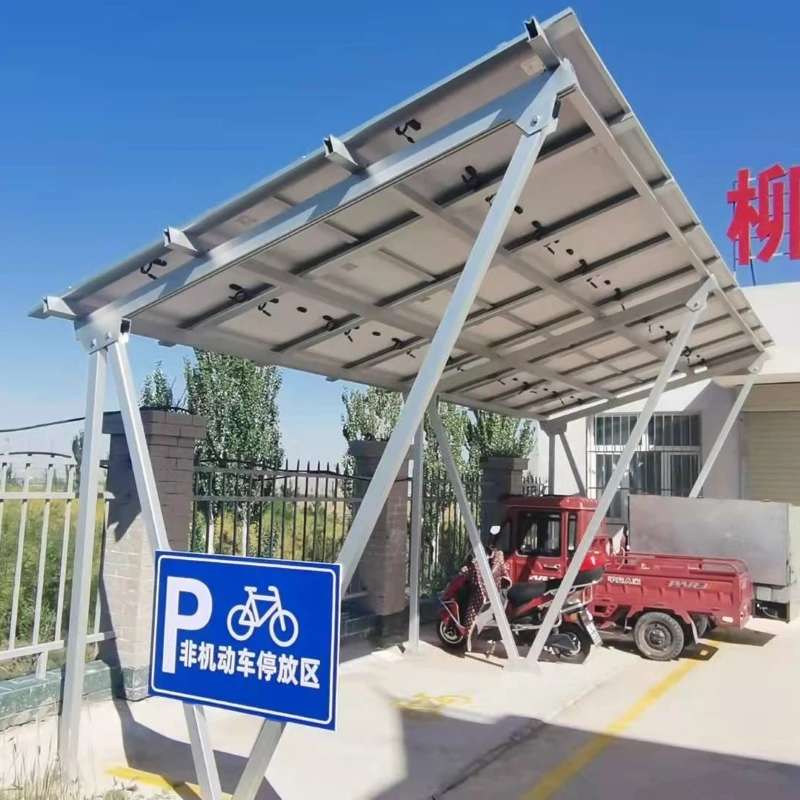

Sunforson's SFS-CP-05 single row carport mounting adopts triangle supporting structure technology, which is very strong and secure. With full aluminum alloy and SS 304 bolts&nuts material,it is with concise and beautiful appearance.It is quite easy and fast installation without any welding in the site.

Mount Type	SFS-CP-05 solar panel carport mounting structure
Installation Site	Open ground
Installation Angle	5° or 10° or 15°
Panels	Solar panel for any size
Structural materials	Aluminum, stainless steel
Survival wind speed	Up to130mph (60m/s)
Design snow pressure	Up to 30psf (1.4KN/m2)
Inclination	Customizable
Module Orientation	Vertical or horizontal
Design Standards	CE&AS / NZS 1170
Warranty	Design Life for 25 years, quality assurance for 10 years

Products Strengths of Sunforson technology

1. Quick installation, saving schedule:

Sunforson PV systems have produced the assembly parts in advance with the professional design,so they can be quickly assembled no drilling or welding on site.
2. Professional design, lower costs:

Products were designed by the experienced designers which have the systematic design,stable structure,mature technology,can meet the BS 6399-2-1997and save cost for the customers..
3. Load design, Safety Guarantee:

Sunforson PV bracket system design take full account of component weight,combine factors of wind,snow and earthquake load,dynamic load and static load,they have long-term performance and high load capacity in practical applications.
4. Beautiful Appearance:

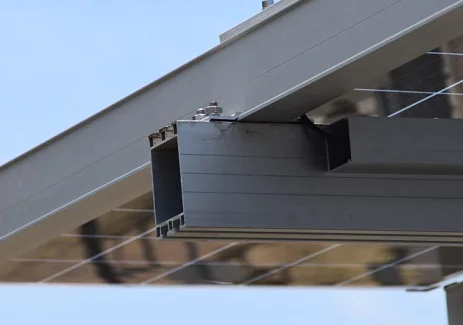

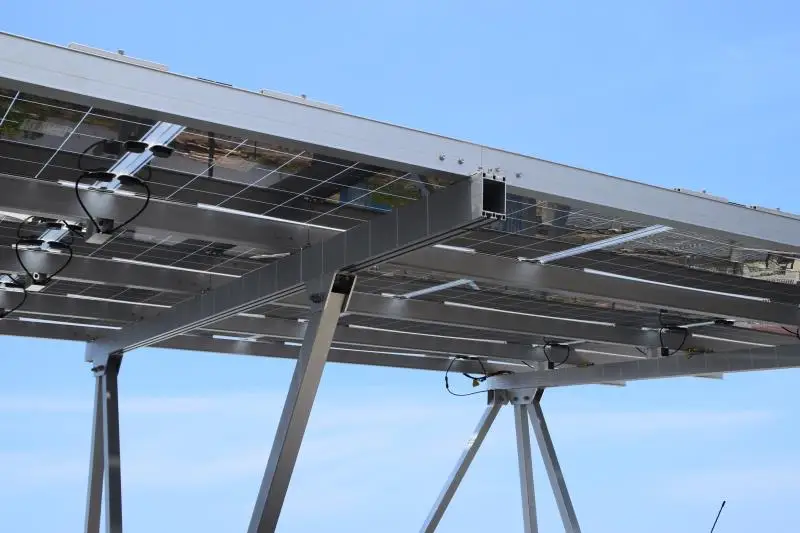

In order to make SunRack Carport become a beautiful building,the bracket system adopt the unique rail design can come up to the unique appearance design,they also have a good rain proof performance.
5. High reliability, 10-year quality Assurance:

All components are made of quality extruded aluminium and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
