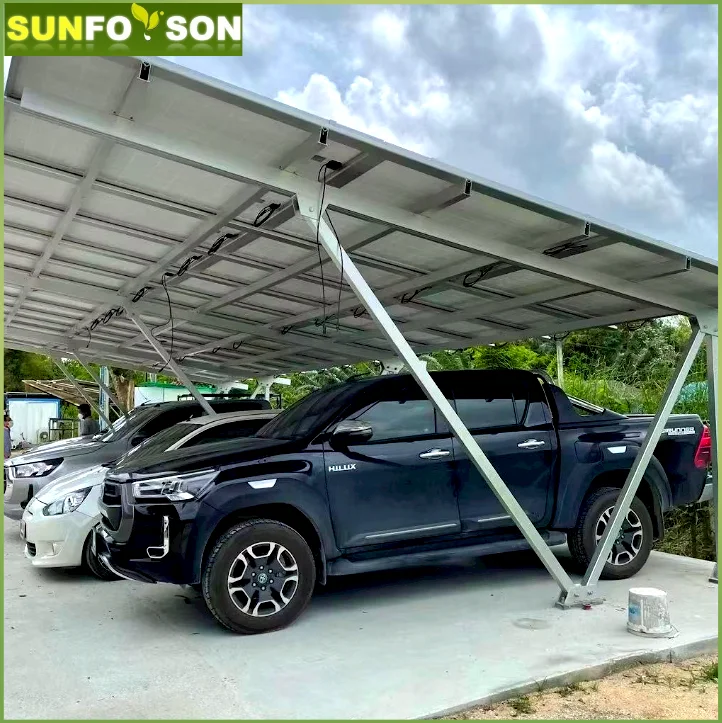

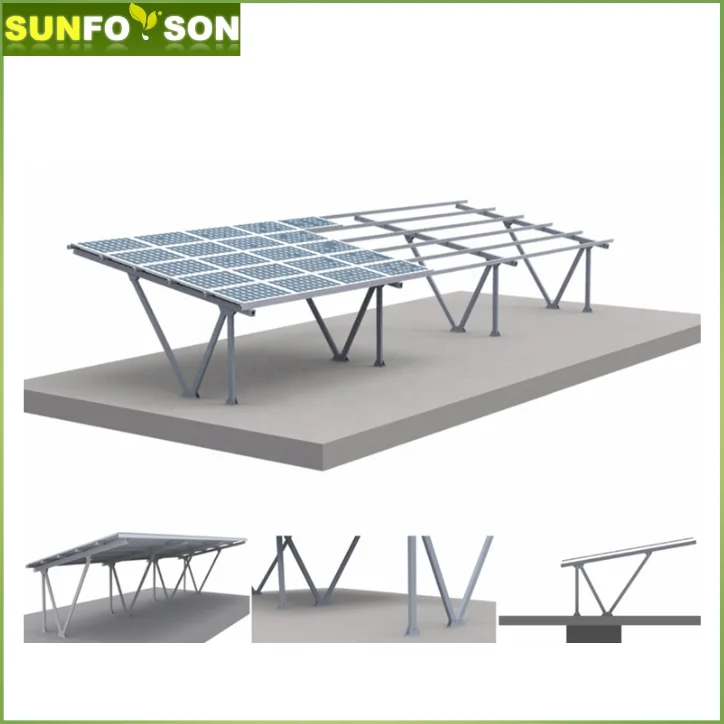

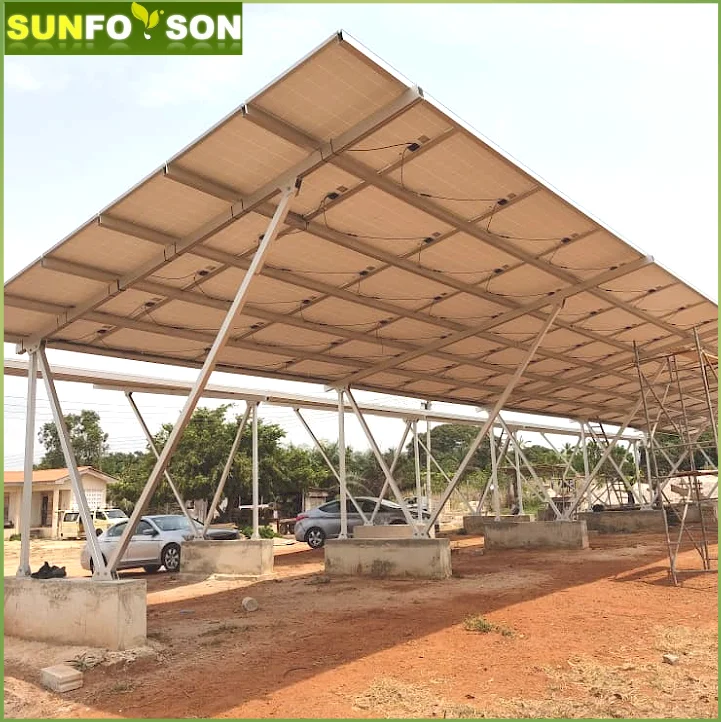

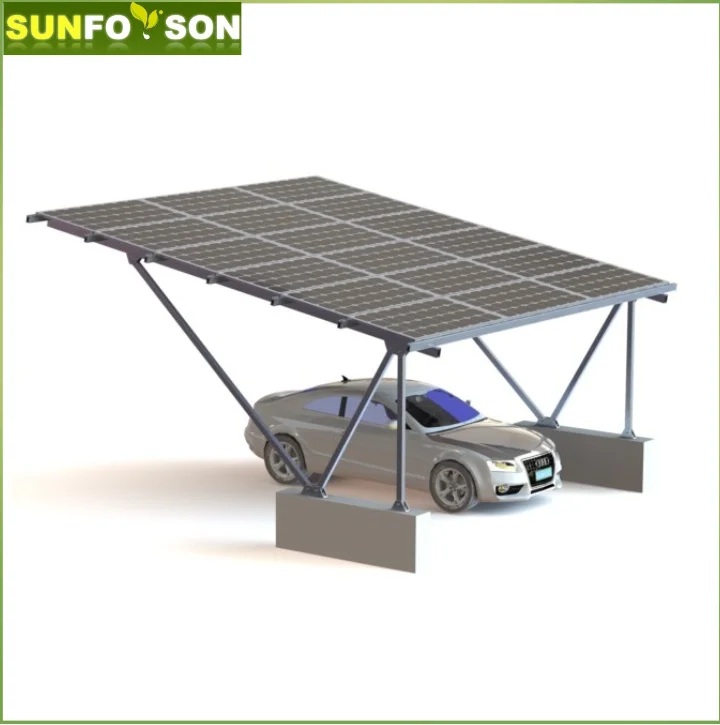

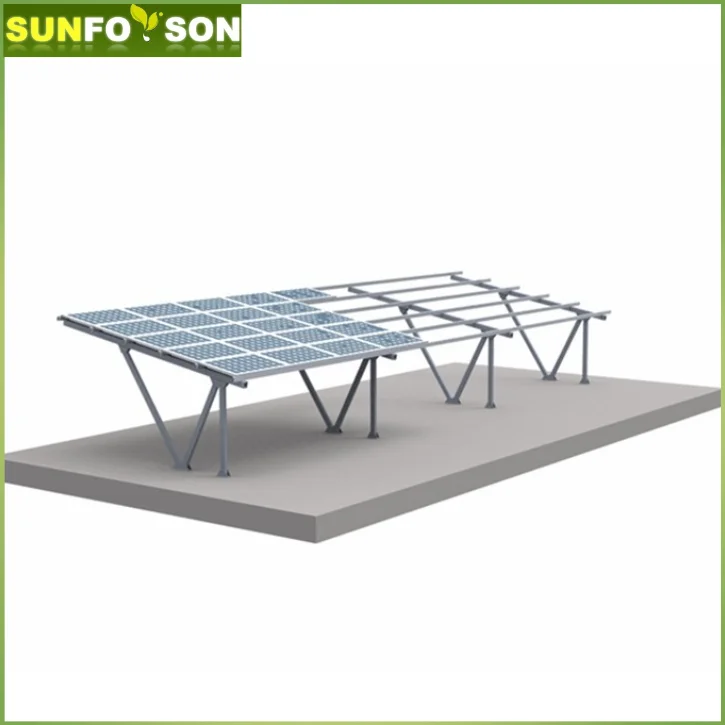

SFS-CP-05 Single row solar panel carport mounting structure
Sunforson's SFS-CP-05 single row carport mounting adopts triangle supporting structure technology, which is very strong and secure. With full aluminum alloy and SS 304 bolts & nuts material,it is with concise and beautiful appearance.It is quite easy and fast installation without any welding in the site.
Solar carport Structure solar energy system carports for parking solar related products solar panel installation solar carport bracket
1. Widely used for residential or commercial projects
2. Superior quality with competitive price
3. Compatible with standard framed and frameless module type
1. Widely used for residential or commercial projects
2. Superior quality with competitive price
3. Compatible with standard framed and frameless module type
Mount Type |
SFS-CP-05 Single row solar panel carport mounting structure |
||||||
Installation Site |
Open ground |
||||||
Panels |
Solar panel for any size |
||||||
Structural materials |
Aluminum, stainless steel |
||||||
Survival wind speed |
Up to130mph (60m/s) |
||||||
Design snow pressure |
Up to 30psf (1.4KN/m2) |
||||||
Inclination |
Customizable |
||||||
Vertical or horizontal |
Vertical or horizontal |
||||||
Design Standards |
CE&AS / NZS 1170 |
||||||
Warranty |
Design Life for 25 years, quality assurance for 10 years |
||||||
Necessary info. for Sunforson to design and quote the solar mounting structures:
1.Solar Panels Dimension: __mm (Length) x__mm (Width) x__mm (Thickness)
2.The layout of the solar panels __Rows x__columns, horizontal or vertical orientation
3.How many panel are you going to install? __Nos
4.Maximum Wind load: __m/s or __km/h or __mph
5.Maximum Snow Load: __KN/m²(if have)
6.Ground clearance (Height of panel lowest end off ground): __mm
7.Solar mount tilt angle: __degree
