Transparent Waterproof Solar Mount Integrated Photovoltaic Solar Panel Frame Mounting Solar Structure Solar Bipv Bracket

SFS-BIPV mounting system

1.Product Value Proposition：

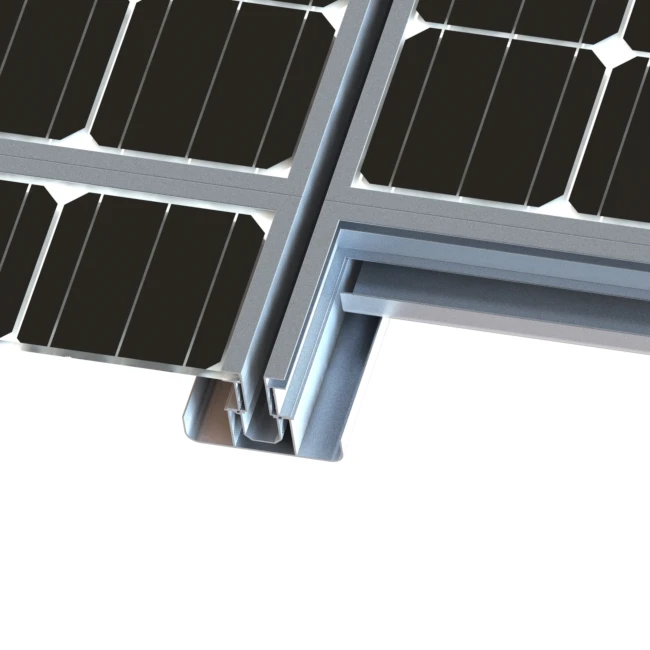

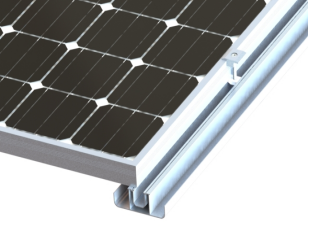

SFS-BIPV-01 is a waterproof bracket with frame photovoltaic panels, which can be

used for the waterproof of roof, car shed, sunshine shed and other supports. With

excellent waterproofing property, it is popular with customers

2.Features：

1)Architecturally-Invisible Design: Engineered for a sleek, low-profile finish that blends with building materials, enhancing curb appeal without compromising on solar efficiency.

2)Weather-Tight Integration:Proprietary waterproof rail ensure a completely watertight and wind-resistant building envelope, meeting the highest construction standards.

3)Unmatched Structural Resilience: Independently certified to withstand extreme wind loads up to 160 mph and heavy snow loads, ensuring long-term durability and safety.

4)Universal Compatibility: Designed to work harmoniously with a wide range of building-integrated photovoltaic modules (glass-glass, solar tiles, cladding panels) from major manufacturers.

3.Product Description:

4. Application Scenarios

1）Solar Roof

Product Compatibility & Advantages:

Key Benefit: Weatherproof & Beautiful. Replaces conventional roofing materials, providing a dual function as a protective layer and power generator.

2）Solar Carport

Product Compatibility & Advantages:

Key Benefit:Creates covered parking while generating on-site power, maximizing land use efficiency.

3）Solar Sunshed

Product Compatibility & Advantages:

Key Benefit:Modern BIPV SunSheds are designed as sleek, integrated architectural elements, not afterthoughts. They can use frameless glass-glass modules for a premium look.

5. Installation&Maintenance Guide

1)Simplified Installation Workflow:

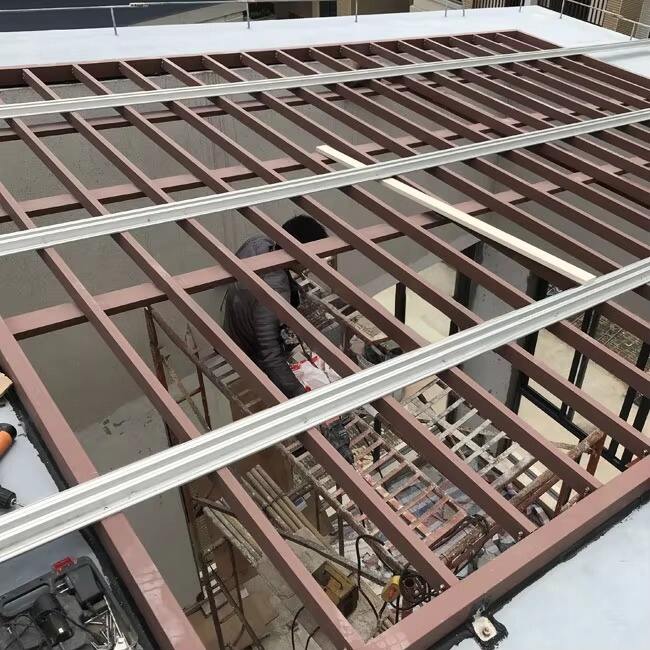

Substrate Preparation: Ensure roof deck or building structure is ready per engineering drawings.

Waterproofing： Ensure the waterproof main beams and secondary beams are installed correctly.

Mounting Frame Assembly: Secure the main aluminum framing channels to the structure.

BIPV Module Installation: Click or fasten pre-wired BIPV panels into the framing system.

Electrical Integration & Flashing: Connect modules, run wiring in integrated channels, and install perimeter flashings and sealants.

2)Final Inspection & Commissioning.

Required Tools: Standard roofing tools, torque wrench, laser level, weatherproof sealant gun.

Critical Notes: Must be installed by certified roofing and solar professionals. Adhere strictly to provided torque specs and sealing instructions. A detailed Installation Manual (IM) is supplied with every order.

Maintenance: Requires minimal upkeep. Bi-annual visual inspections recommended to check sealant integrity and clear debris. Electrical performance monitoring is done via the inverter/system monitoring platform.

6.FAQ – Frequently Asked Questions

Q1: What types of BIPV modules is this system compatible with?

A: For both frame solar panel and frameless solar panel

Q2: Do installers need special training?

A: Yes. We require installers to complete our accredited BIPV system training program, covering both structural integration and electrical safety, to ensure warranty validity and optimal performance.

Q3: What is the product and performance warranty?

A:  The standard warranty period is 10 years, with a design service life of up to 25 years.

Q4 How does it handle thermal expansion and building movement?

A: The framing design includes integrated expansion joints and flexible attachment points to accommodate thermal cycling and minor structural shifts without stress transfer to the modules.

Q5: Can it be installed in cold climates or on flat roofs?

A: Absolutely. The system is rated for extreme temperatures. For low-slope or flat roofs, we provide engineered tilt-up solutions to optimize energy yield and facilitate self-cleaning.

Q6: How do I request a project-specific structural calculation?

A: Submit your project details (location, building height, wind zone, module specs) via our engineering portal. Our team will provide stamped calculations for permit submission.

Q7: What is the lead time for a custom commercial project?

A:  The production lead time is  3-4 weeks.

7.Customer Cases

Case 1: Rooftop Solar Project – Sri Lanka

• Location: Sri Lanka
• Project Scale:165KW Rooftop BIPV Mount System
• Application: Commercial Rooftop

Performance & Results:

The system provides over 30% of the building's base electricity load. Its integrated design eliminated the need for separate cladding, saving on material costs. It has performed flawlessly through multiple storm seasons

Case 2: Solar Carport Project--Thailand

• Location: Thailand
• Project Scale: 800KW Carport BIPV Mount System
• Application: Large shopping mall parking lot

Performance & Results:

The electricity generated by the photovoltaic system can be used directly by the shopping mall, offsetting the high commercial electricity prices during peak hours (daytime business hours coincide with peak power generation), significantly reducing operating costs. It also provides a shaded and dry parking environment during sunny and rainy/snowy days, greatly enhancing the customer experience and leading to a significant increase in customer satisfaction.

Case 3: Solar Sunshed Project--Singapore

• Location: Singapore
• Project Scale: 30KW Sunshed
• Application: Personal Sunshed

Performance & Results:

Instantly transform your open-air balcony into an all-weather indoor space. Whether used as a casual tea room, a small gym, a children's play area, a green garden, or a laundry and drying area, it will no longer be affected by the weather (scorching sun, rain, or wind and sand). The electricity generated by the solar canopy can be used directly by the household, significantly reducing monthly electricity bills.
