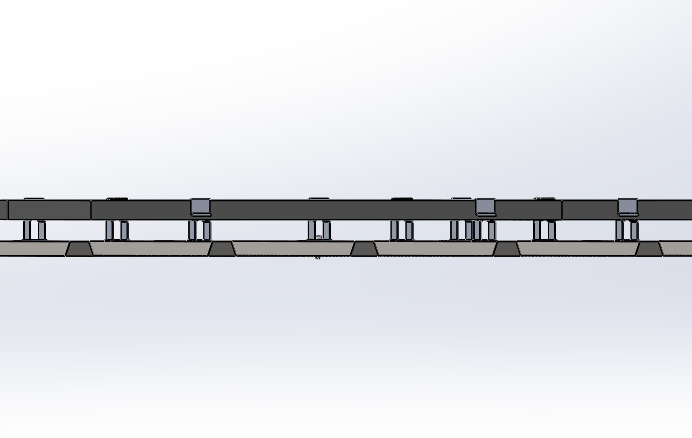

Short Rail Solar Mounting System

Specification

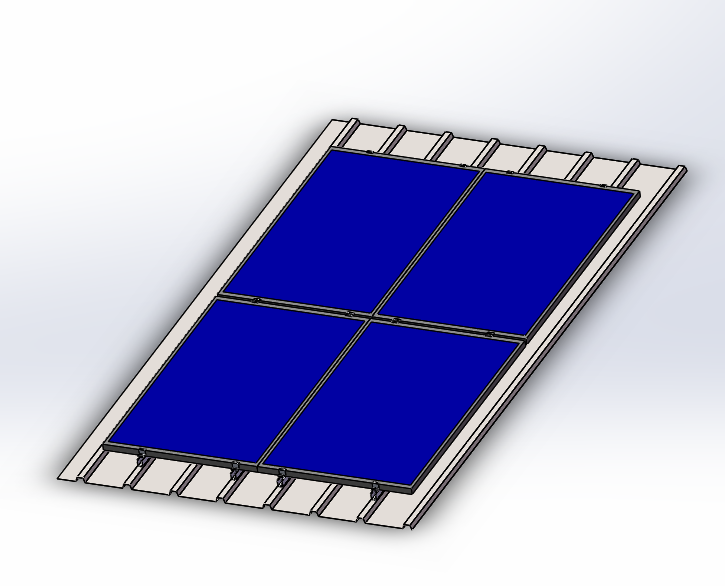

Installation site: Tin roofs

Application: Framed solar panel for any size

Structural materials: aluminum, stainless steel

Survival wind speed: up to 60m / s

Design snow pressure: up to 1.4KN / m2

Inclination: 0 degree (the same angle as roof)

Panel direction: vertical or landscape

Design Standards: CE&AS / NZS 1170

Life: Design Life for 25 years, quality assurance for10 years

Products Strengths of Sunforson technology

The Sunforson solar mounting system represents a revolutionary leap in photovoltaic installation technology. Designed as an integrated, all-in-one solar racking system, its core innovation lies in a solar panel structure engineered for unprecedented speed, precision, and adaptability. At the heart of the system is a patented solar mount design that redefines the installation workflow.

1. Effortless, Tool-Limited Installation
Our solar mounting system dramatically simplifies the entire assembly process. The genius of the design is its unparalleled level of pre-assembly. The primary solar mounting brackets and rail components arrive in pre-configured kits, drastically reducing on-site labor and decision-making. An installer requires only a single hex key and basic, standard tools to complete the entire solar panel rack assembly. The proprietary rail extension mechanism—a key feature of our solar racking system—eliminates complex measurements and manual cutting. This allows for rapid, sequential linking of rails to the exact required length, directly on the roof. The result is a solar panel structure that can be mounted in a fraction of the time required by conventional systems, significantly lowering installation costs and minimizing rooftop exposure for work crews.

2. Unmatched Flexibility and Universal Compatibility
The Sunforson solar mounting system is architected for universal application. Its solar mounting brackets are designed with a versatile clamping mechanism that securely accommodates framed PV modules from all leading manufacturers, making it a truly agnostic solar racking system. This flexibility extends to the rooftop itself. The system features a comprehensive suite of mounting accessories tailored for virtually every type of pitched roof cladding—from concrete and clay tiles to metal seam and asphalt shingles. The robust yet adaptable solar panel structure ensures a perfect fit and secure attachment regardless of the underlying roof material. This design philosophy guarantees that our solar panel rack is not a one-size-fits-all compromise but a universally optimized solution.

3. Precision Engineering for Flawless Alignment
Accuracy is engineered into every component of the Sunforson solar mount. By removing the need for on-site cutting and drilling of main components, we eliminate a major source of human error and dimensional inconsistency. The precision-machined, extruded aluminum rails connect with a patented interlocking system that ensures millimeter-perfect alignment across the entire array. This built-in accuracy of the solar mounting system is critical. It guarantees a perfectly level and planar solar panel structure, which is essential for optimal energy yield, long-term structural integrity, and a sleek, uniform aesthetic appearance. Installers can achieve professional, factory-like precision in the field, every time.

4. Superior Adaptability to Complex Roofs
One of the most challenging aspects of solar installation is compensating for an uneven roof surface. Sunforson’s solar mounting brackets are ingeniously designed with a wide-range, micro-adjustable height feature. This allows installers to fine-tune the vertical position of each mounting point independently. Consequently, even on roofs with significant undulations, dips, or irregularities, the solar racking system can be calibrated to establish a perfectly level plane for the PV modules. This exceptional adaptability ensures maximum energy production and prevents undue stress on the panels. The entire solar panel structure is engineered to the highest international standards, with a design certified to comply with rigorous wind and snow load codes such as AS/NZS 1170, ensuring safety and resilience in all environments.

5. Maximum Lifespan with Premium Materials
Durability is non-negotiable for a system exposed to the elements for decades. Every element of the Sunforson solar mount, from the main rails to the smallest solar mounting brackets, is fabricated from high-grade, anodized aluminum alloys and A2/A4 stainless steel fasteners. This material selection provides exceptional corrosion resistance, crucial for withstanding coastal salt spray, industrial pollution, and harsh weather. The inherent strength of the solar panel structure protects the investment in PV modules. Furthermore, at the end of its multi-decade service life, the entire solar racking system is fully recyclable, aligning with the sustainable principles of the solar industry itself.

6. Guaranteed Durability and Long-Term Performance
Our confidence in the system's robustness is backed by a comprehensive 10-year product warranty on all structural components of the solar mounting system. This guarantee covers the solar mounting brackets, rails, and hardware against material defects and performance failure. When integrated with the 25 to 30-year performance warranties of modern PV modules, the Sunforson solar panel rack provides a complete, worry-free energy solution. It is more than just hardware; it is the reliable, long-term foundation for your solar investment, engineered to last for the entire lifecycle of the power plant it supports.
