PV Solar Panel Ballasted Flat Roof & Ground Mount Flat Roof Solar Racking Structure for Photovoltaic Mounting

Product Compatibility & Advantages:

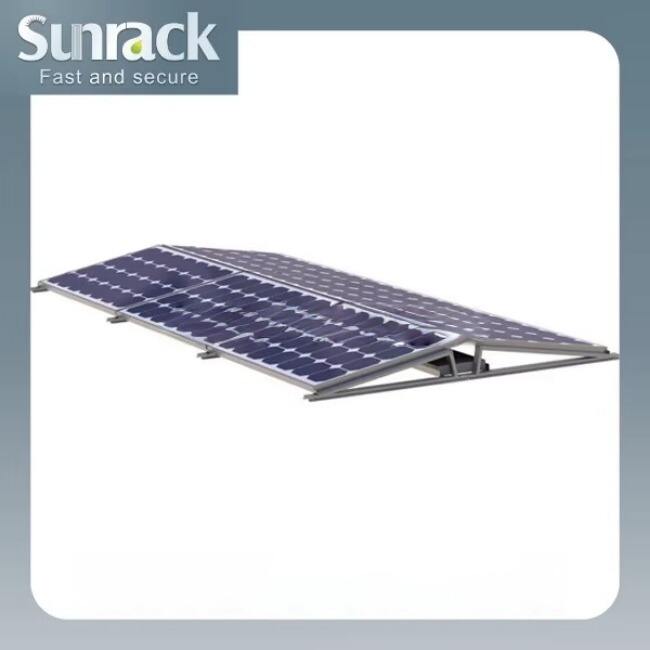

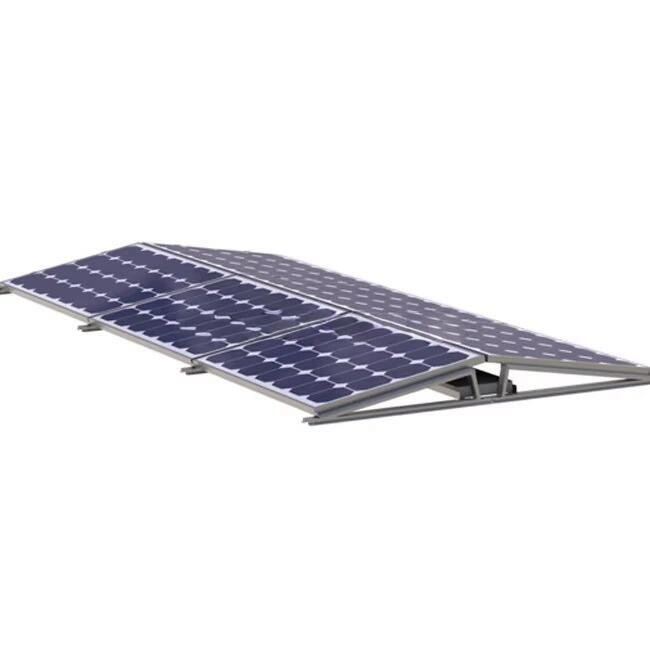

SunRack SFS-FR-02 Solar PV Ballast Mounting System – Product Strengths

The SunRack SFS-FR-02 is a premium solar PV mounting structure engineered for flat commercial rooftops. This photovoltaic support system integrates innovative design with robust engineering to deliver a high-performance solar panel racking solution. Key strengths include:

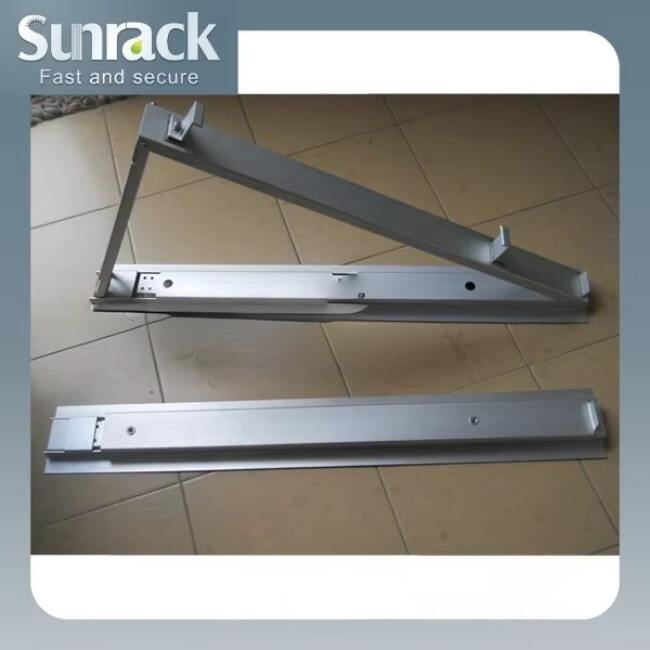

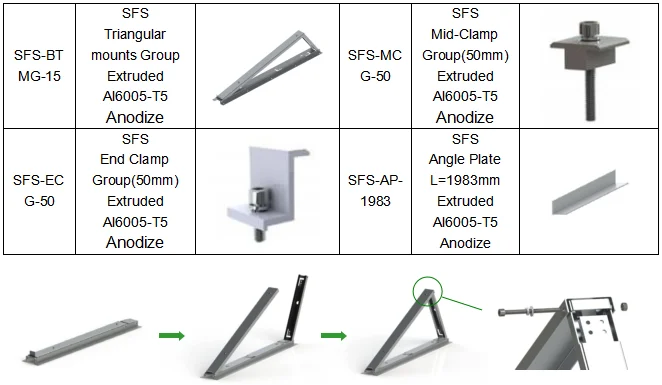

1. Foldable Triangular Solar Mounts
This solar PV mounting system features unique triangular solar module supports with a foldable design. These photovoltaic brackets provide exceptional strength while collapsing flat for transport, drastically reducing shipping volume. On-site, the solar panel mounts unfold quickly into rigid PV support structures, accelerating installation and cutting logistics costs.

2. No-Rails PV Support for Roof Protection
Eliminating traditional rails, this solar panel racking system uses a direct-to-mount architecture. The photovoltaic support structure reduces components and, crucially, minimizes roof penetration. By distributing weight evenly, the solar PV mounts protect the membrane and preserve roof warranties. This solar module support design ensures a secure installation without permanent alterations.

3. Cost-Effective Solar Panel Racking
Optimized for landscape-oriented modules, this solar mounting system achieves maximum economic return. The photovoltaic support accommodates tilt angles from 5° to 15°, balancing energy yield with wind load management. This fixed-tilt solar racking structure eliminates moving parts, while precision-engineered solar panel brackets ensure consistent module alignment, delivering more watts per dollar.

4. Modular PV Mounting Structure
Scalability is central to this solar PV racking system. The modular design allows the photovoltaic support structure to expand seamlessly from small installations to large industrial arrays. Each solar mount integrates precisely with adjacent solar panel supports, enabling installers to maximize roof utilization without compromising the integrity of the existing solar module racking.

5. Customized Solar Ballast Engineering
This solar PV mounting structure features intelligent ballast management. Sunforson engineers analyze project-specific conditions—wind zone, building height, and local codes—to design precise ballast configurations. This tailored approach ensures the photovoltaic support system achieves stability without overloading the roof, minimizing material costs while securing every solar panel bracket against wind uplift.

6. Versatile PV Component Compatibility
Designed for universal fit, this solar racking system accommodates standard module frames. The solar panel mounts and modular photovoltaic brackets secure modules firmly without inducing stress, making the PV support structure adaptable for retail, industrial, and institutional projects.

Conclusion
The SunRack SFS-FR-02 solar PV ballast mounting system delivers exceptional value through intelligent design. With its foldable triangular solar module supports, no-rails photovoltaic support structure, and customized ballast engineering, this solar panel racking system offers the reliability and adaptability demanded by modern commercial projects. Choose this advanced solar mounting structure for your next PV installation.

Application Scenario：

Application Scenarios of SunRack SFS-FR-02 Solar PV Mounting System

The SunRack SFS-FR-02 is a versatile solar mounting solution designed for various installation environments with flexible fixation options.

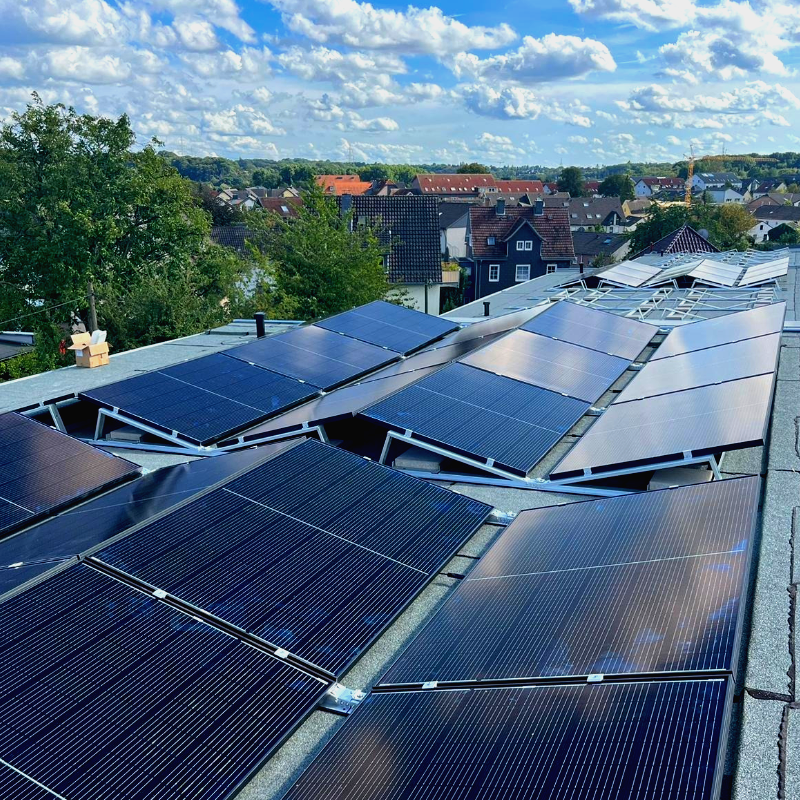

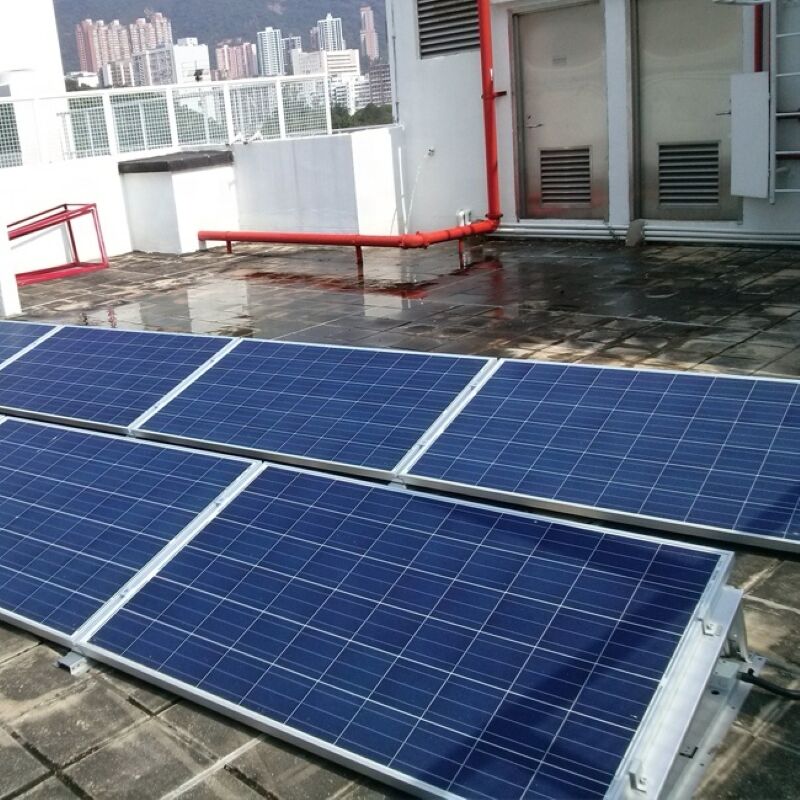

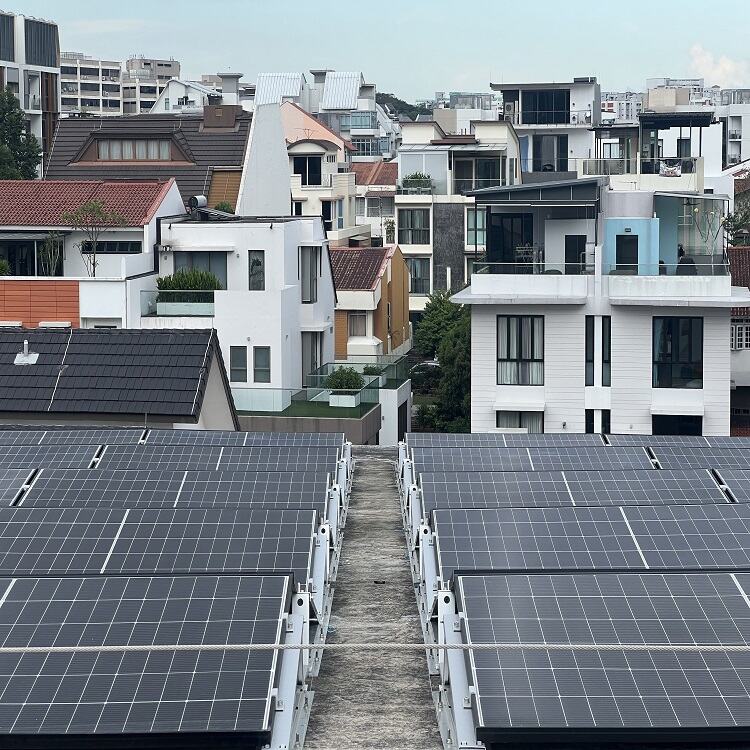

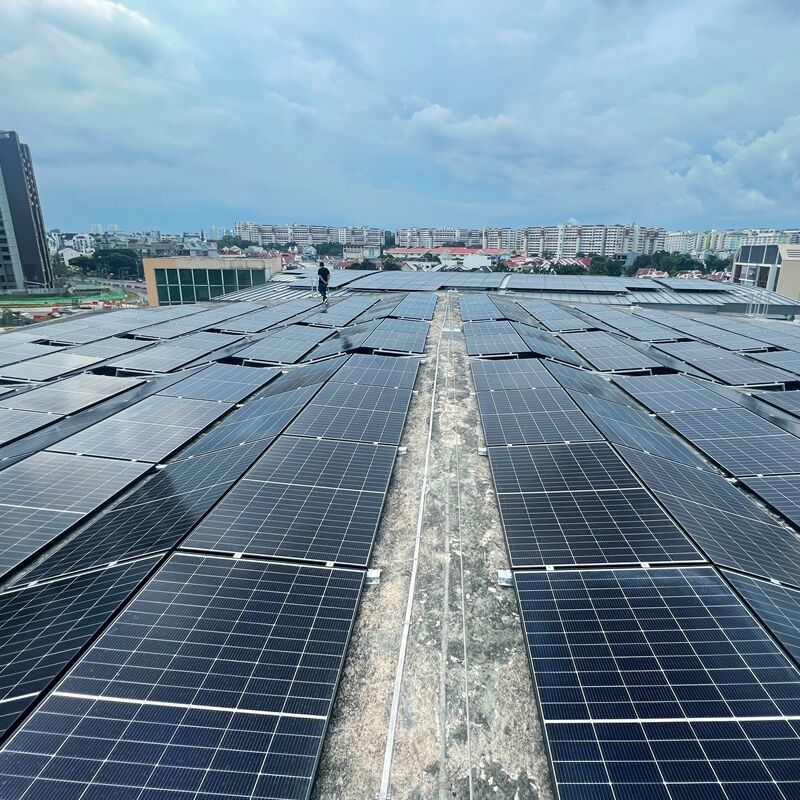

1. Flat Commercial Roofs

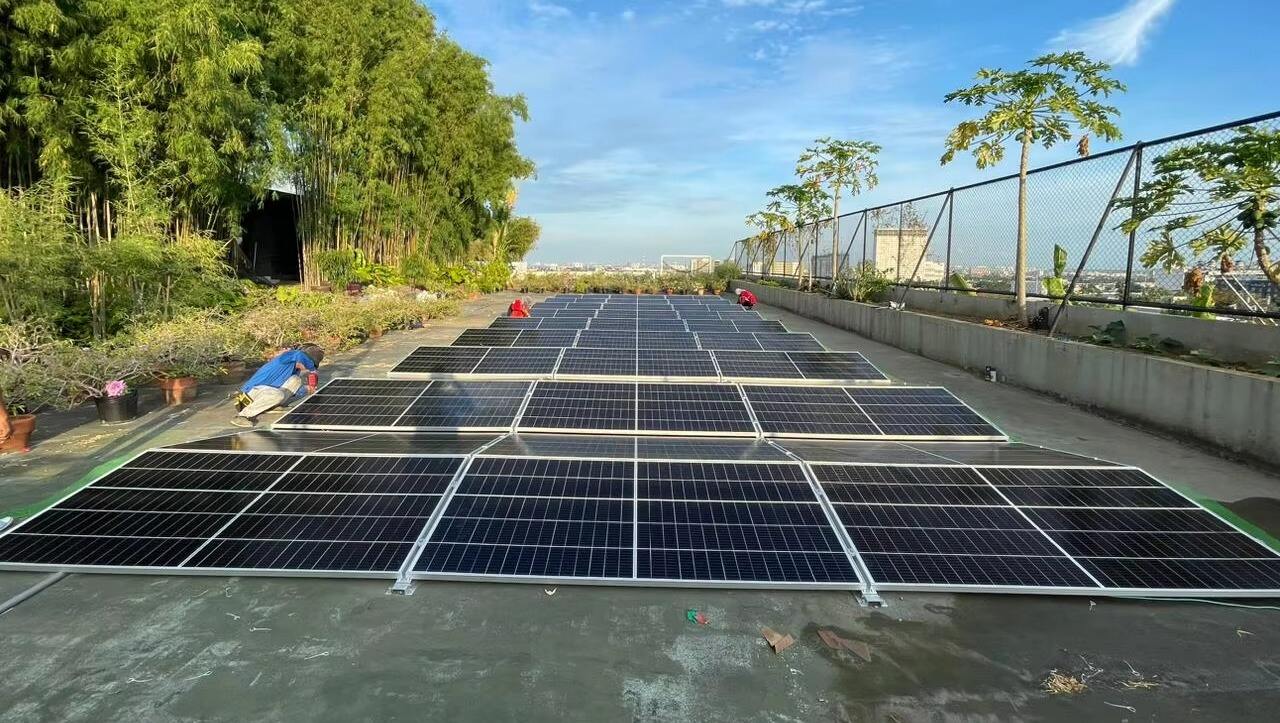

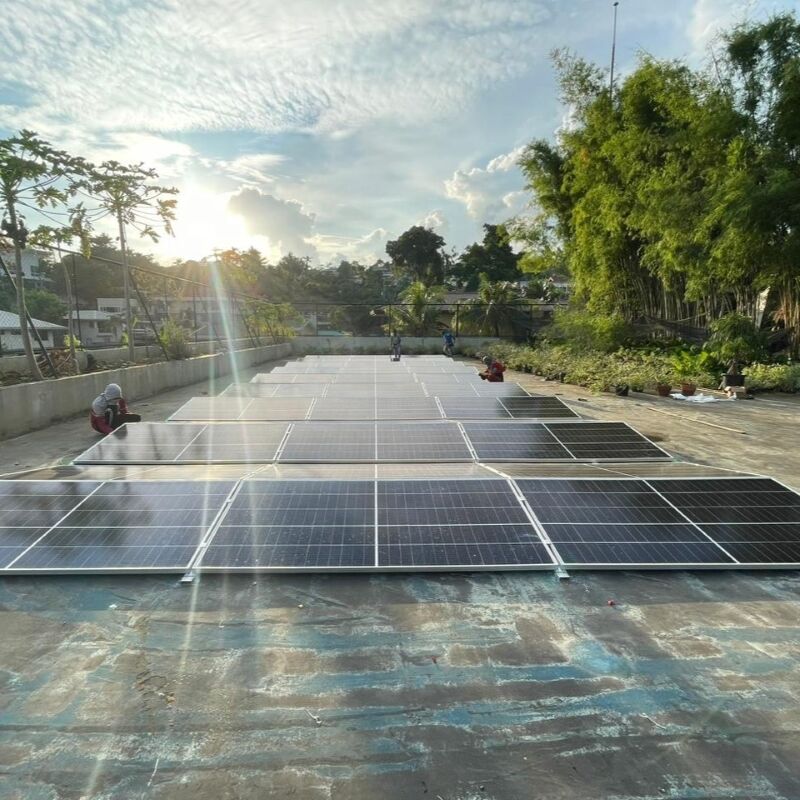

Ideal for warehouses, factories, and office buildings, this solar PV support structure uses concrete ballast blocks to secure the photovoltaic mounts without any roof penetration. This non-invasive method preserves the waterproof membrane and maintains roof warranties.

2. Flat Open Ground Areas
The solar panel racking system performs excellently on agricultural land, industrial plots, or commercial campuses. For ground installations, expansion bolts can fasten the solar mounts directly to concrete foundations, reducing material costs and installation time.

3. Flexible Fixation Methods

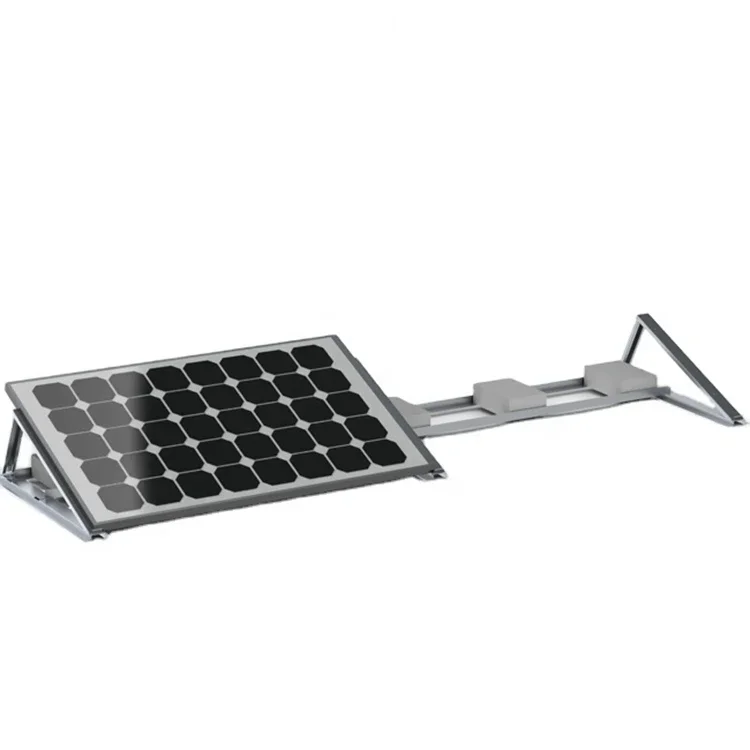

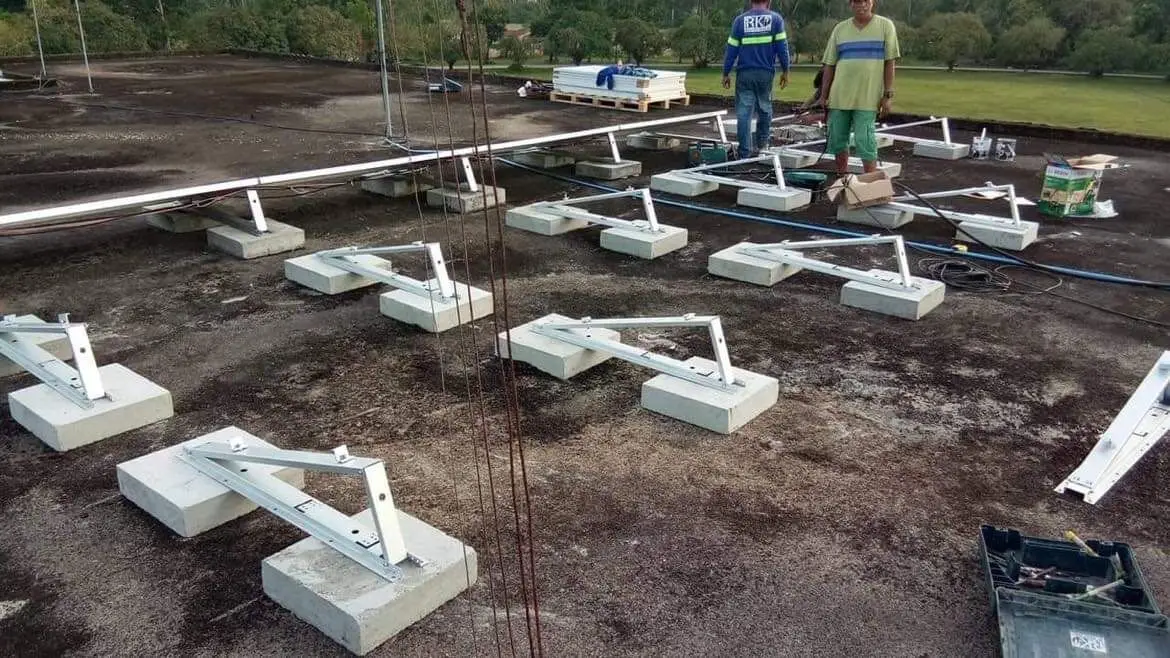

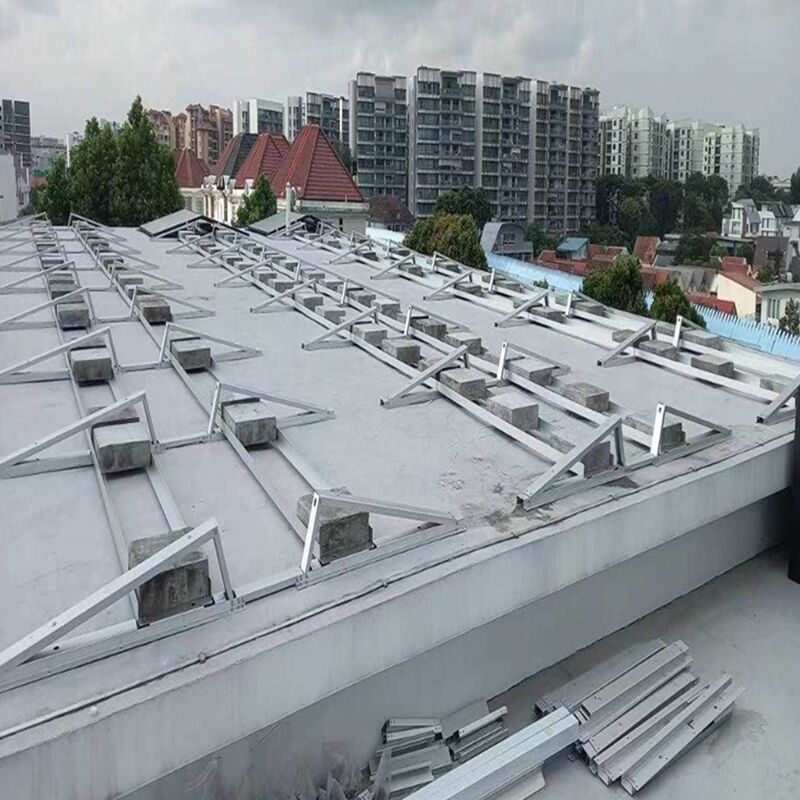

• Ballasted Fixation: Pre-cast concrete blocks hold the solar panel support structure using only weight for stability—perfect for roofs where penetration is prohibited.
• Mechanical Fixation: Expansion bolts anchor the photovoltaic racking system directly to the substrate, ideal for high-wind regions or when minimizing ballast weight.

4. Scalable for Any Project
From small retail rooftops to large ground-mounted solar farms, this modular solar mounting system adapts easily to growing energy needs.

With both ballasted and mechanically fixed options, the SFS-FR-02 photovoltaic support structure delivers reliable versatility for every project.

Frequently Asked Questions：

Necessary info. for Sunforson to design and quote the solar mounting structures:

1. Solar Panels Dimension: __mm (Length) x__mm (Width) x__mm (Thickness)

2. The layout of the solar panels __Nos in a row

3. How many panel are you going to install? __Nos

4. Maximum Wind load: __m/s or __km/h or __mph

5. Maximum Snow Load: __KN/m2 (if have)
6. Solar mount tilt angle: __degree

7. Fixed type: Ballast with cement blocks or fix with expansion screws
