Waterproof Photovoltaic Panel Aluminum Solar Photovoltaic Carport Solar Mounting System Double Car Parking Shed
-Warranty: 10 YEARS
-Free installation service: NO
-Place of Origin: Fujian ,China
-Brand Name: Sunrack
-Model Number: SFS-CP-03
- Overview
- Recommended Products

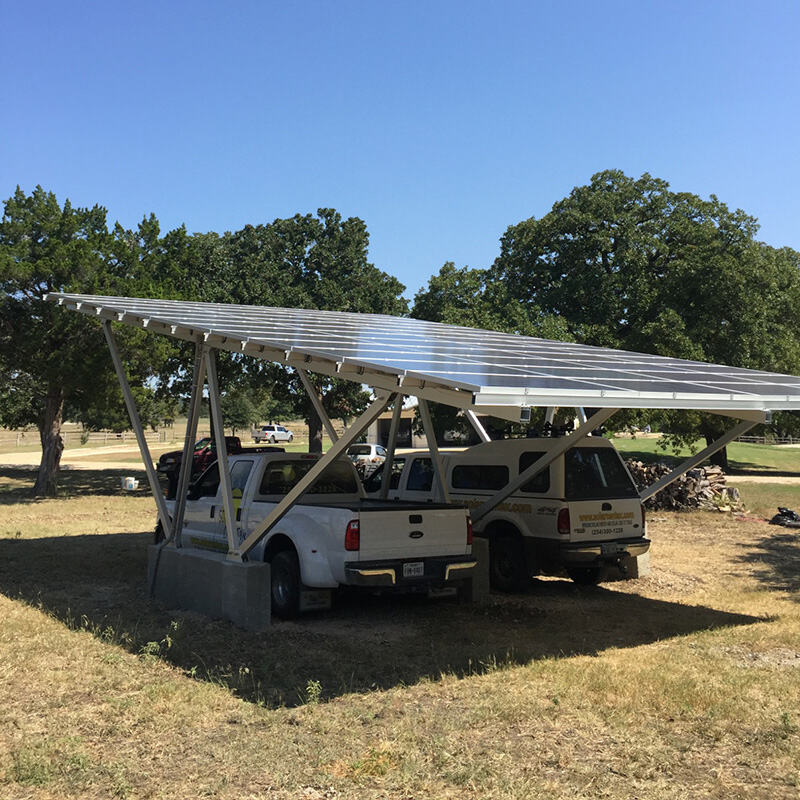

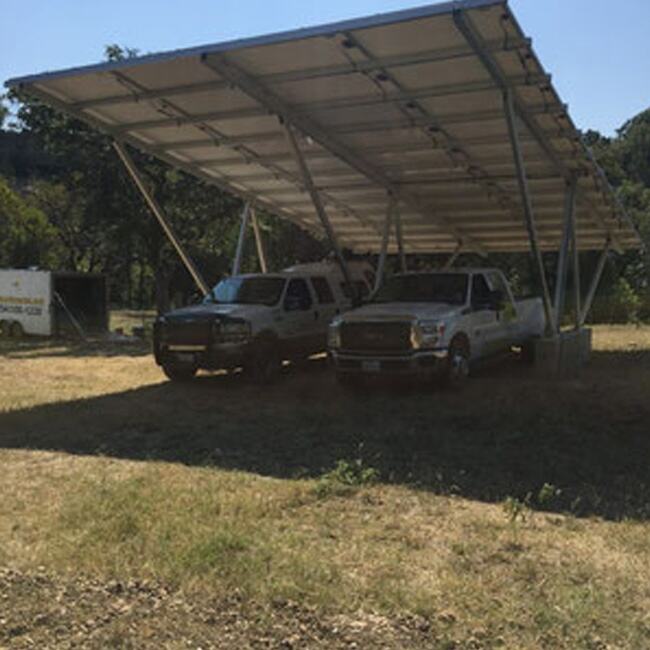

SFS-CP-03 SunRack Carport Mounting System
Sunforson's SFS-CP-03 double row carport mounting adopts triangle supporting structure technology, which is very strong and secure. With full aluminum alloy and SS 304 bolts and nuts, it has a concise and elegant appearance. It is a quite easy and fast installation without any welding on the site.
Features：
1）Quick installation with pre-assembled components, requiring no on-site drilling or welding to save installation time.
2）Professionally engineered for a stable structure and optimized system design, helping reduce overall project costs.
3）Designed to withstand wind, snow, seismic, dynamic, and static loads, ensuring long-term safety and high load capacity.
4）A unique rail design creates a clean and modern appearance while providing effective rain protection.5）Manufactured from high-quality aluminum and stainless steel, offering high corrosion resistance and a 10-year quality assurance.
Product Description:
Item |
Specification |
Installation Site |
Open Ground |
Installation Angle |
5° or 10° or 15° |
Building Height |
2.3~3.5m |
Material |
Aluminum Alloy (AL6005-T5) |
PV Modules |
Framed or Frameless Panel |
Module Orientation |
Horizontal or vertical |
Module Width |
Any Size |
Survival wind speed |
Up to 130mph (60m/s) |
Survival snow pressure |
Up to 30psf (1.4kN/m2) |
Certification Standards |
BS EN 1991-1-4:2005/ASCE7/DPT1311-50 |
Warranty |
10 years on material |
Installation Guide Video
Customer Cases：

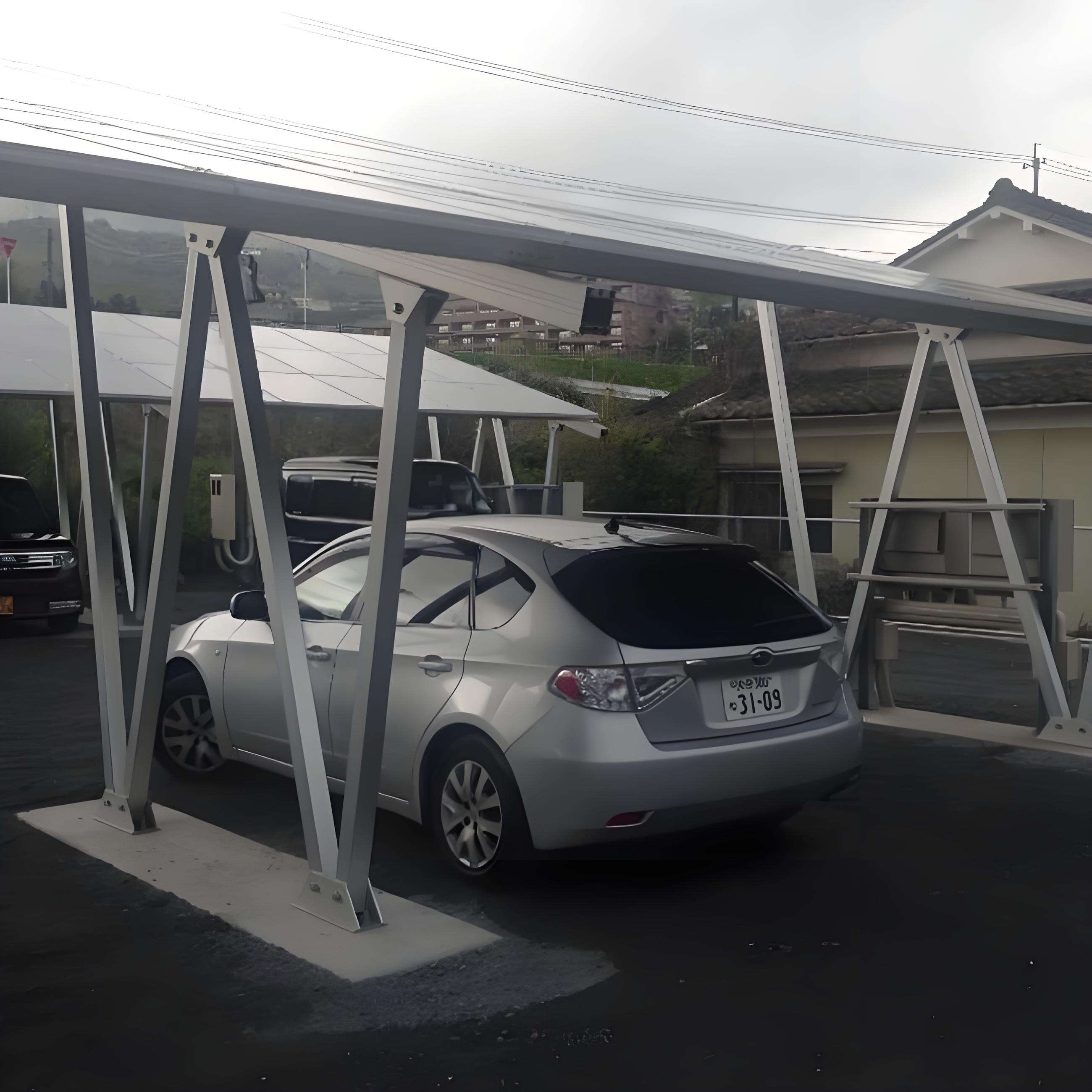

Case 1: Commercial Solar Carport Project – Japan
Project Location: Japan
Project Scale: approx. 300 kW
Application: Commercial parking lot solar carport
Performance & Results:
The double-row carport system was smoothly installed, offering optimized space utilization, stable shading, and increased energy output. It performs reliably under strong winds and seasonal snow, ensuring long-term structural safety and power generation efficiency.

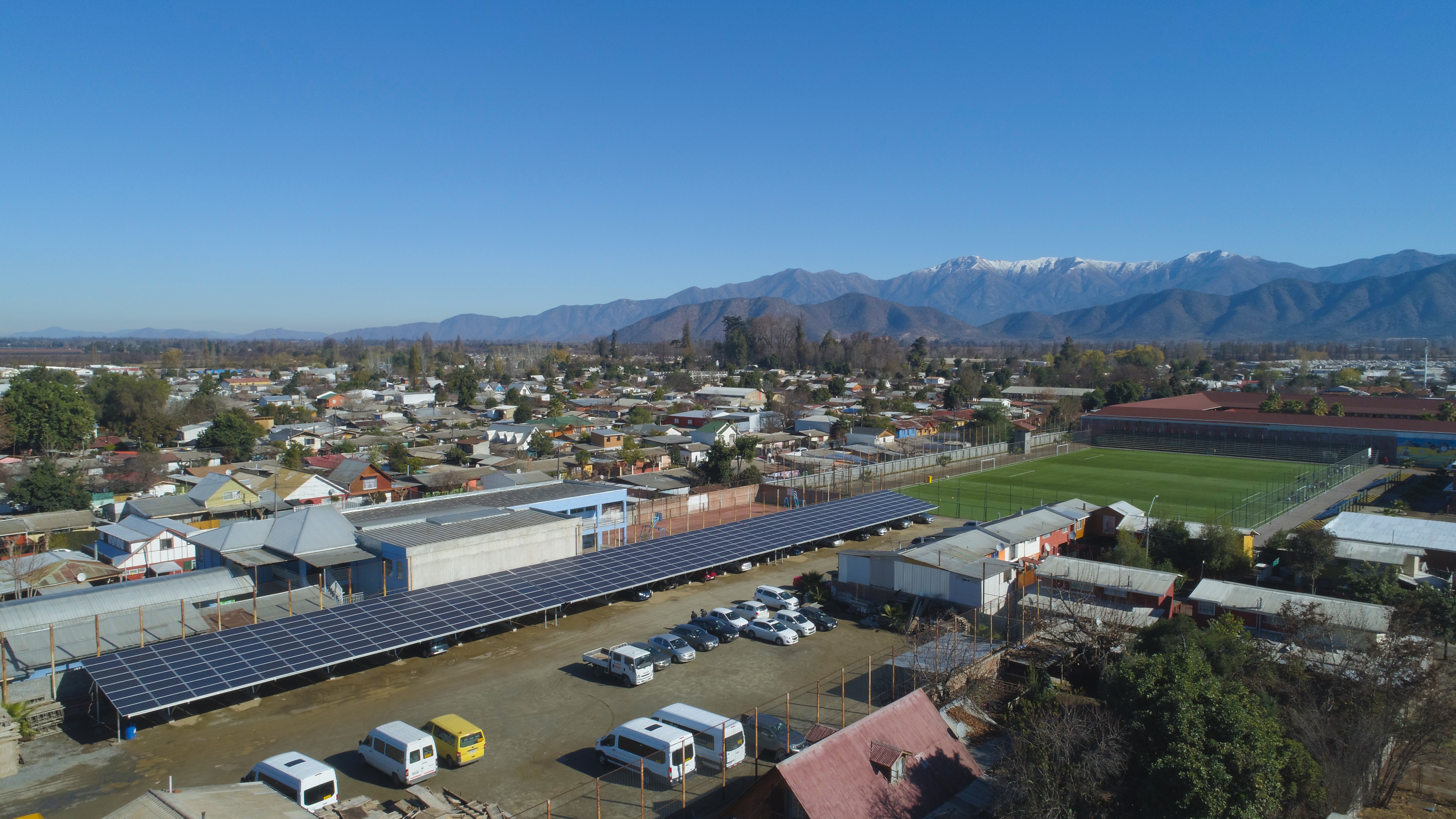

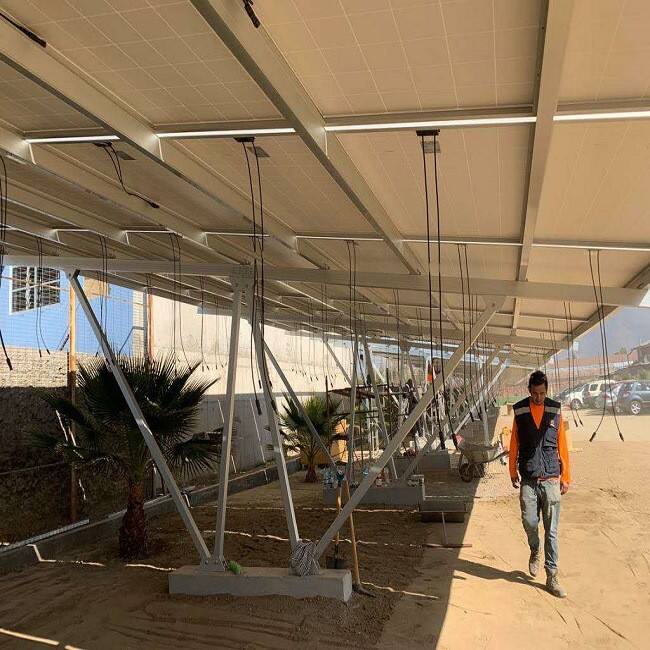

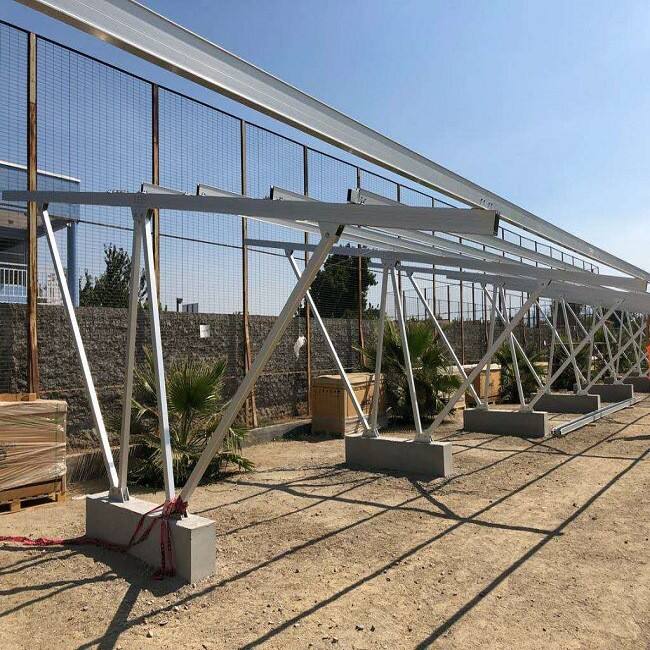

Case 2: Commercial Solar Carport Project – Chile
Project Location: Chile
Project Scale: approx. 500 kW
Application: Commercial parking lot solar carport
Performance & Results:
Designed for efficiency and durability, the dual-row carport system maximizes parking space while delivering stable shading and reliable solar energy output. It withstands wind and snow loads, ensuring long-term safety and performance.
FAQ – Frequently Asked Questions：
Q1: What types of solar panels are compatible with this carport mounting system?
A: The system is compatible with most standard framed solar modules and supports various panel sizes and power ratings.
Q2: What is the warranty period for the carport mounting system?
A: The standard warranty is 10 years, with a design service life of up to 25 years.
Q3: Can the system be customized for different parking layouts?
A: Yes. The carport structure can be customized based on parking space size, layout, and site conditions.
Q4: Is the carport system suitable for high wind or heavy snow areas?
A: Yes. The structure is designed and tested to meet wind and snow load requirements according to local standards.
Q5: Are all mounting accessories included in the supply?
A: Yes. Rails, clamps, fasteners, and necessary accessories are supplied as a complete system.
