Products Description

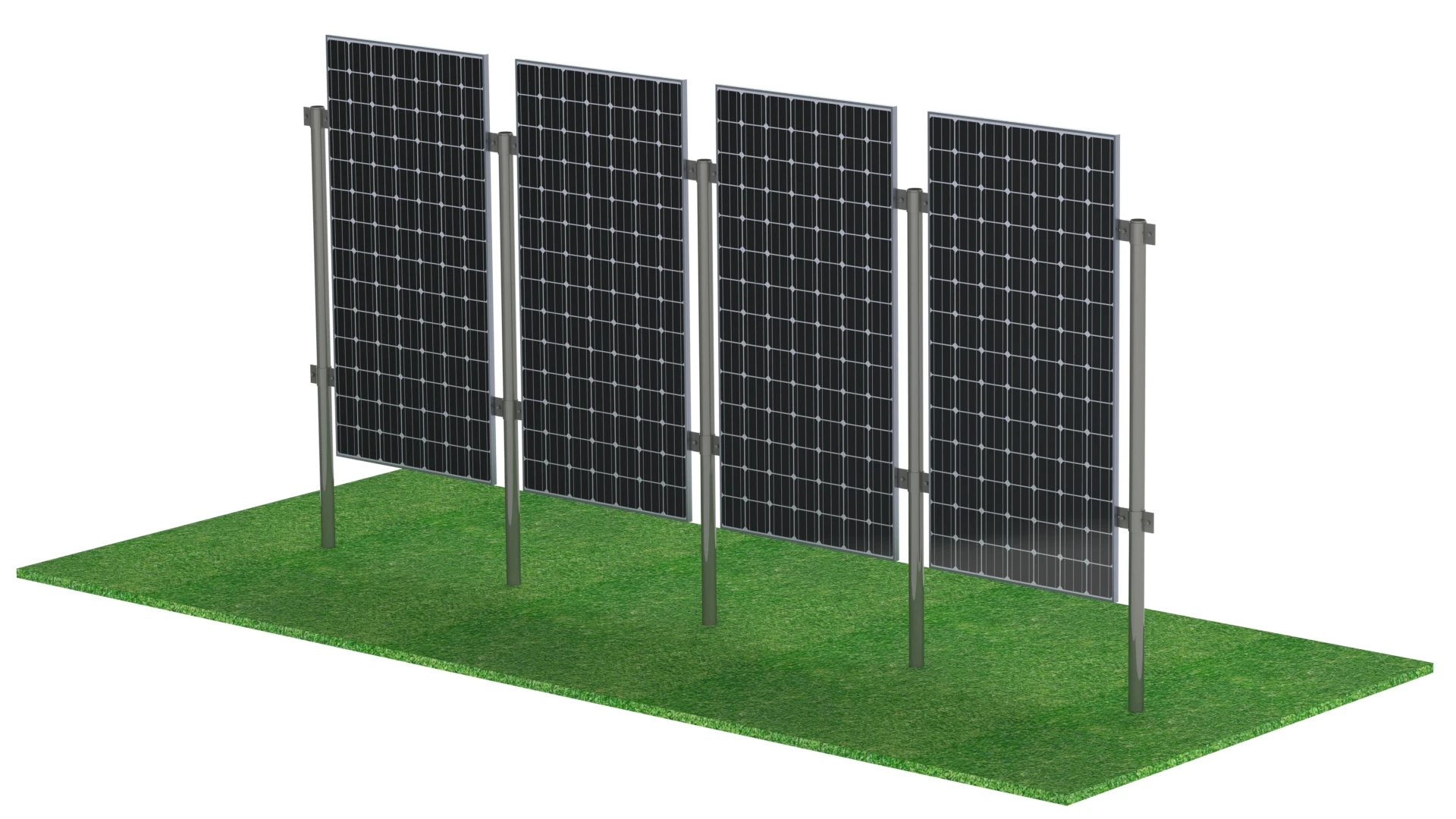

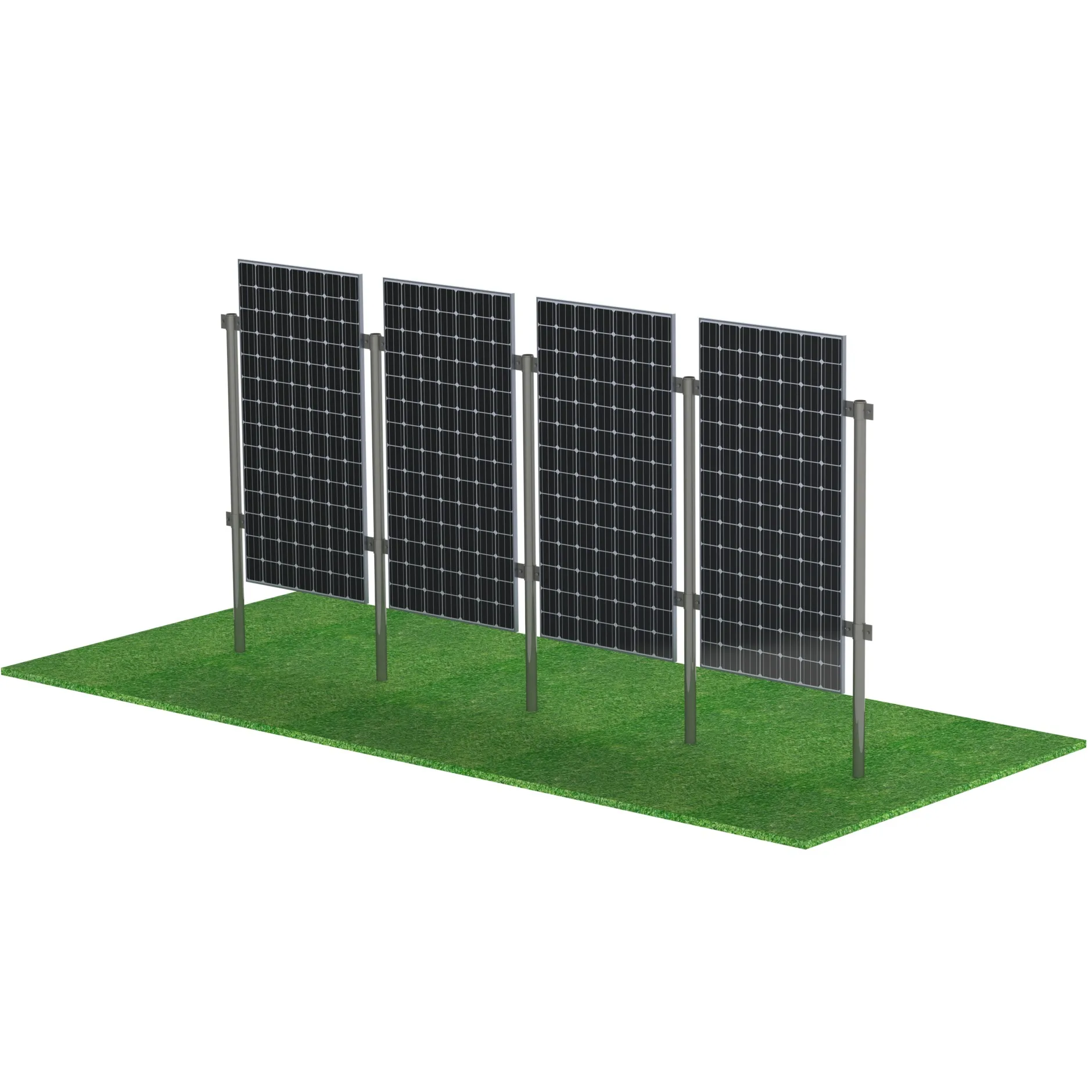

SFS-FFB-01 SunRack ground-mount system is a vertical solar system that is mainly installed on farms or between roads as a barrier. It maximizes the use of land space to generate electricity.
1. Planting crops and producing green electricity on the same land maximizes land utilization.
2. It can provide shade for crops and workers while reducing soil moisture loss.
3. High-strength bracket, taking into account both safety and corrosion resistance.
4. Suitable for solar panel hole installation, the solar panel datasheet is required for bracket design.
1. Planting crops and producing green electricity on the same land maximizes land utilization.
2. It can provide shade for crops and workers while reducing soil moisture loss.
3. High-strength bracket, taking into account both safety and corrosion resistance.
4. Suitable for solar panel hole installation, the solar panel datasheet is required for bracket design.
Mount Type |
Solar Farm Fence Bracket |
Installation Site |
Open ground |
Panels |
Solar panel for any size |
Structural materials |
Q235 hot dip galvanizing |
Survival wind speed |
Up to 45m / s |
Design snow pressure |
Up to 1.2KN / m2 |
Inclination |
Vertical |
Panel layout orientation |
Vertical or horizontal |
Design Standards |
BS EN 1991-1-4:2005 |
Warranty |
2 years on S350/Q235 steel |
Recommend Products
Company Profile
Certification of Solar Roof Rack for Home Solar System- Inquire with suppliers
Our customers visiting and PV EXPO
Why Choose Us
FAQ
Necessary info. for Sunforson to design and quote the solar mounting structures:
Part 1:
1: What kind of solar mount? roof mount,ground mount or carport mount?
Part 2:
2.Solar Panels Dimension: __mm (Length) x__mm (Width) x__mm (Thickness)
3.The layout of the solar panels __Rows x__columns, horizontal or vertical orientation
4.How many panel are you going to install? __Nos
5.Maximum Wind load: __m/s or__km/h or __mph；Maximum Snow Load: __KN/m2 (if have)
Part 3:
A:For Pitch Roof Solar Mounting System；
6.Roof type: tile roof, tin roof, asphalt shingle roof, or other?
B:For Flat Roof Mount Brackets/ Ground Mount Supports/Carport Mount Structures
7. Ground/ roof clearance (Height of panel lowest end off ground/roof floor): __mm
8.Solar mount tilt angle: __degree
