Products Description
SFS-TRG Solar Clip Lock
Aluminum clip lock is for tin/metal standing seam roof solar rooftop mounting. The standing seam roof clamps makes mounting on folded seam roof particularly easy. The clamps are simply attached to the standing seams and offer a secure fastening without penetrating the roof sheets, ensuring great stability with minimum weight. The variety of system combinations allows it to be connected quickly to all rail components. It can also fix panels directly with solar panel clamps.
Specification
Type |
clip lock for standing seam roof solar panel mount |
Site |
standing seam roof |
Material |
Aluminum, Stainless Steel |
Color |
Natural |
Feature |
fast and secure |
Design Standard |
AS/NZS1170 |
Warranty |
10 years |

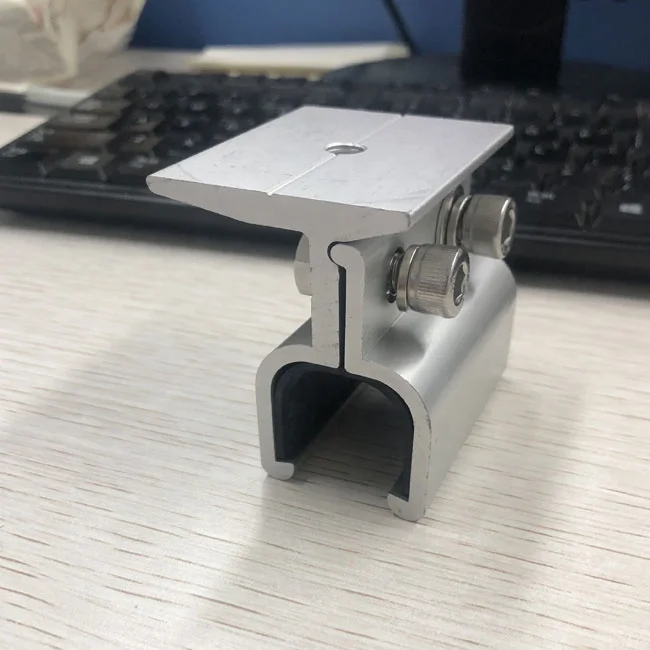

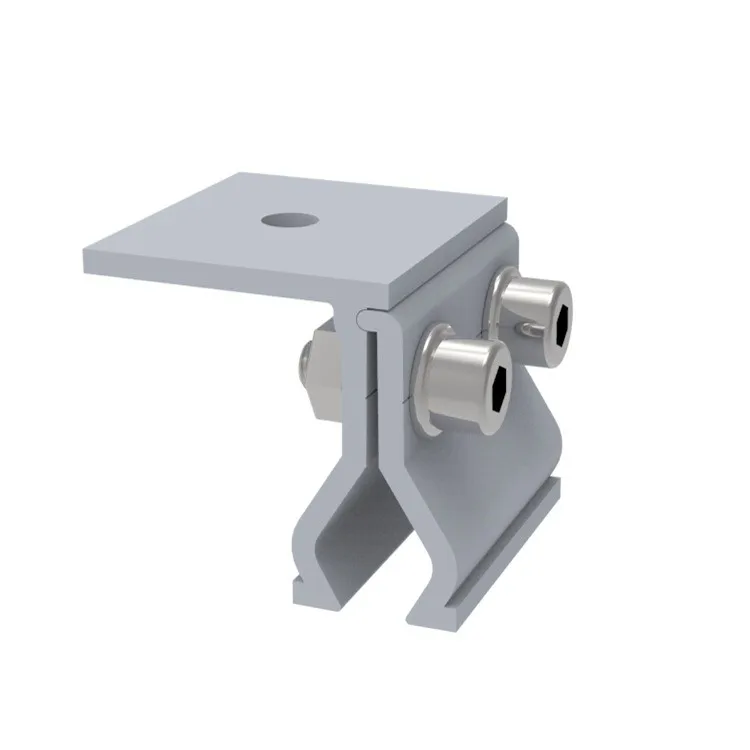

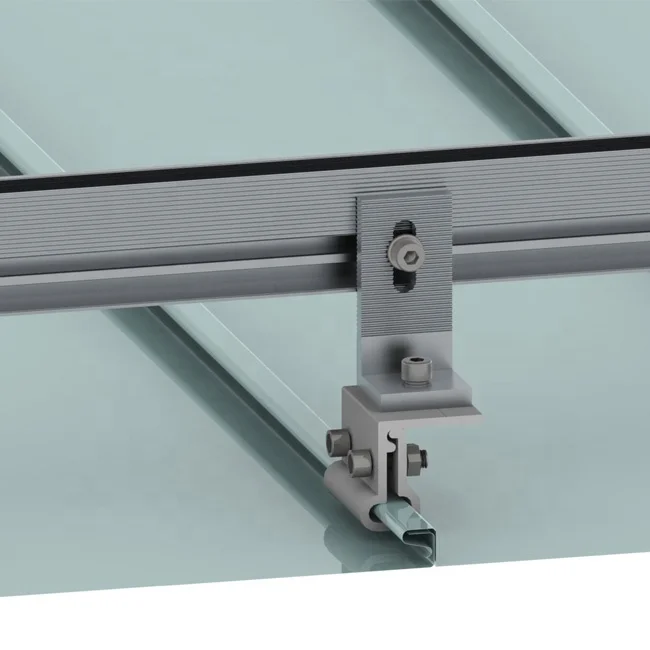

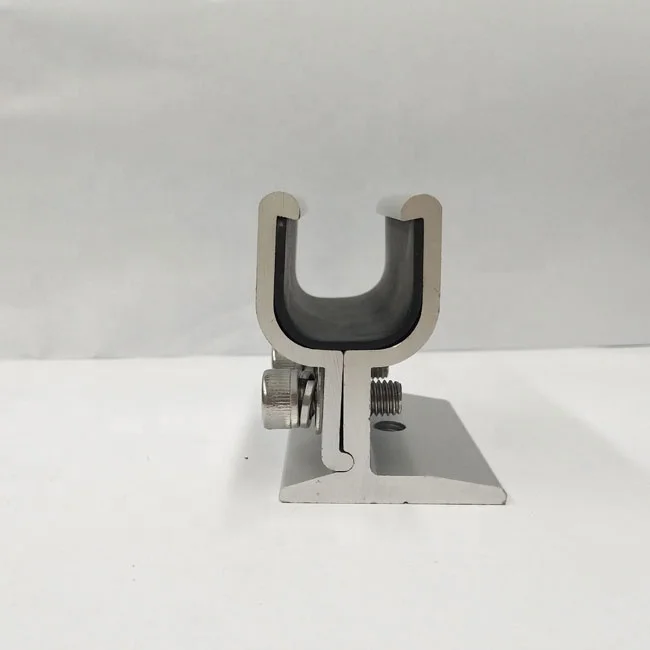

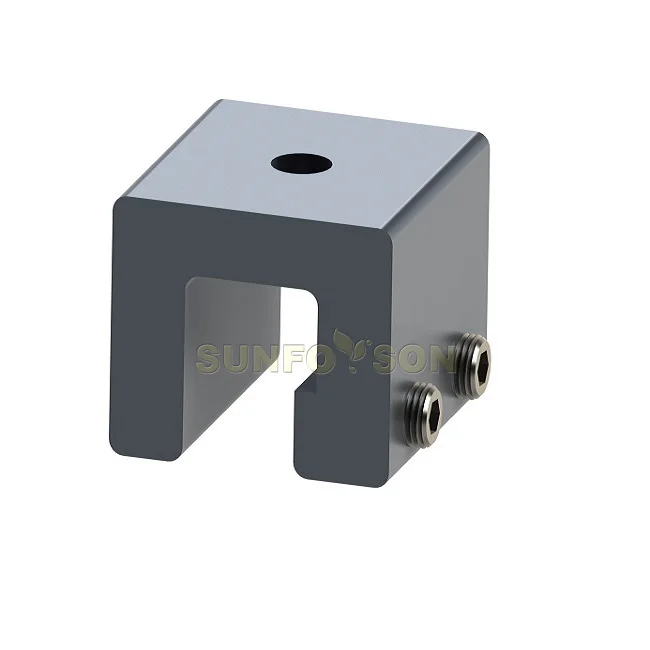

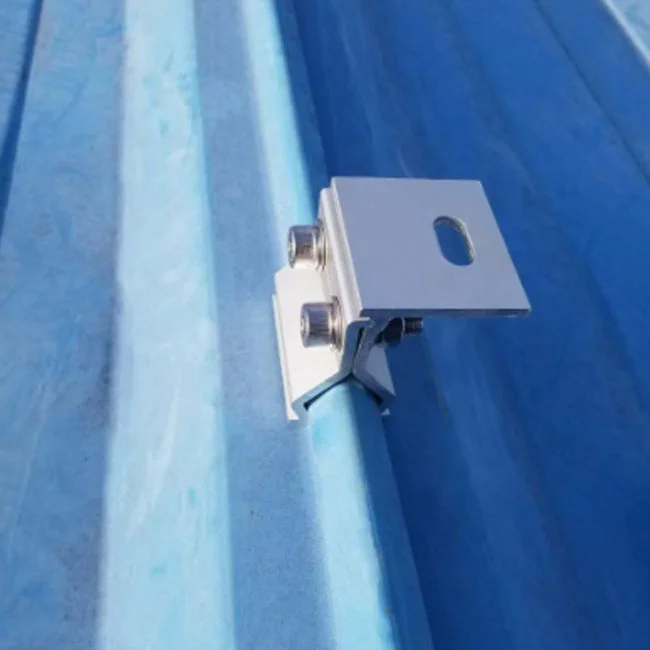

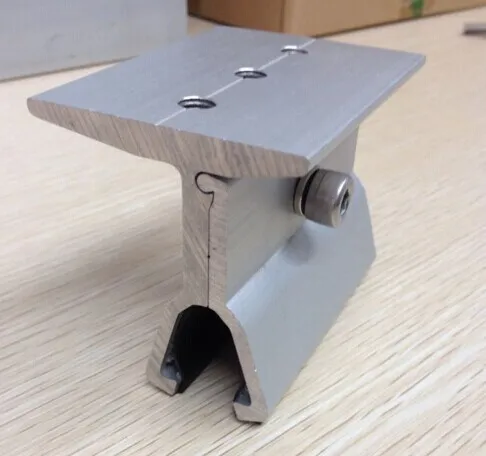

Picture of Solar Clip Lock

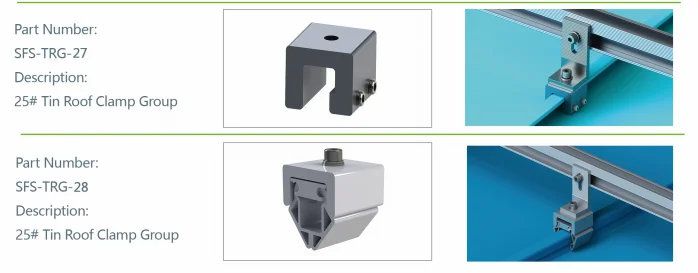

Recommend Products
Company Profile
Certification of Solar Roof Rack for Home Solar System- Inquire with suppliers
Our customers visiting and PV EXPO
Why Choose Us
FAQ
Necessary info. for Sunforson to design and quote the solar mounting structures:
Part 1:
1: What kind of solar mount? roof mount,ground mount or carport mount?
Part 2:
2.Solar Panels Dimension: __mm (Length) x__mm (Width) x__mm (Thickness)
3.The layout of the solar panels __Rows x__columns, horizontal or vertical orientation
4.How many panel are you going to install? __Nos
5.Maximum Wind load: __m/s or__km/h or __mph；Maximum Snow Load: __KN/m2 (if have)
Part 3:
A:For Pitch Roof Solar Mounting System；
6.Roof type: tile roof, tin roof, asphalt shingle roof, or other?
B:For Flat Roof Mount Brackets/ Ground Mount Supports/Carport Mount Structures
7. Ground/ roof clearance (Height of panel lowest end off ground/roof floor): __mm
8.Solar mount tilt angle: __degree
