Mini Rail Solar Mounting Bracket Fast Installation for Metal Roof EPDM Rubber Solar Panel Mounting
- Overview
- Recommended Products
Products Description

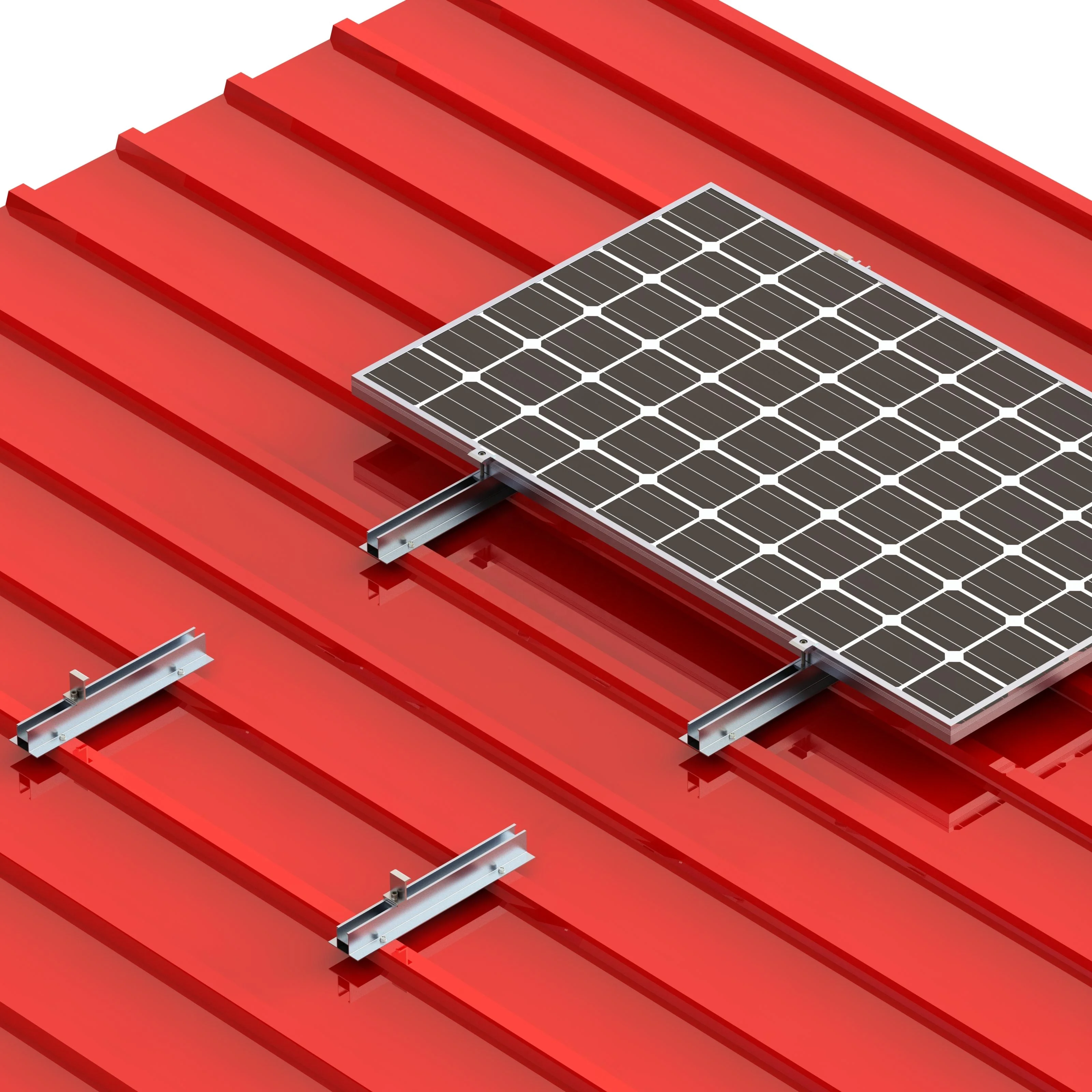

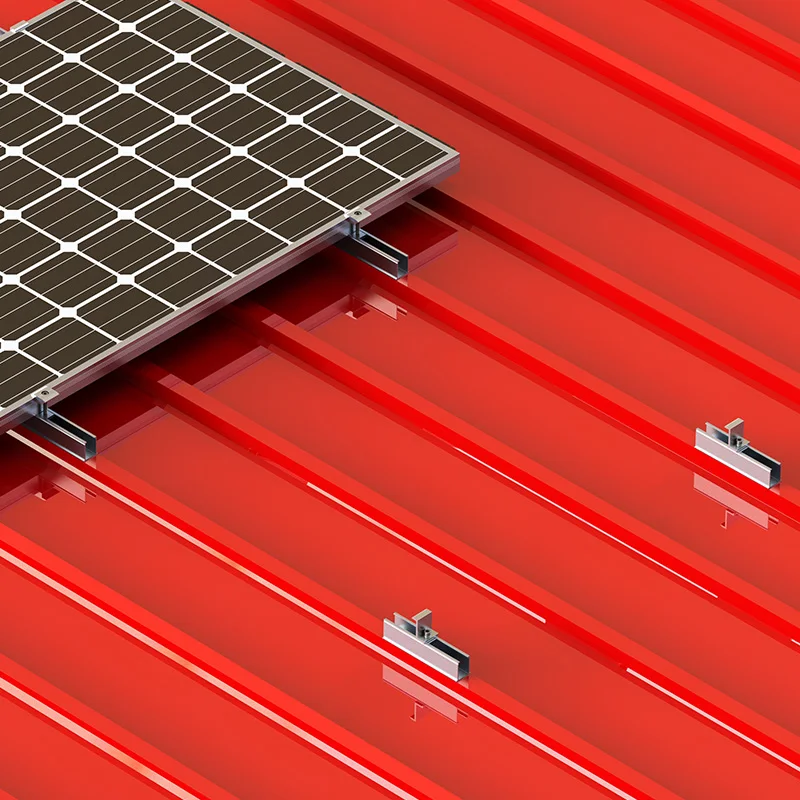

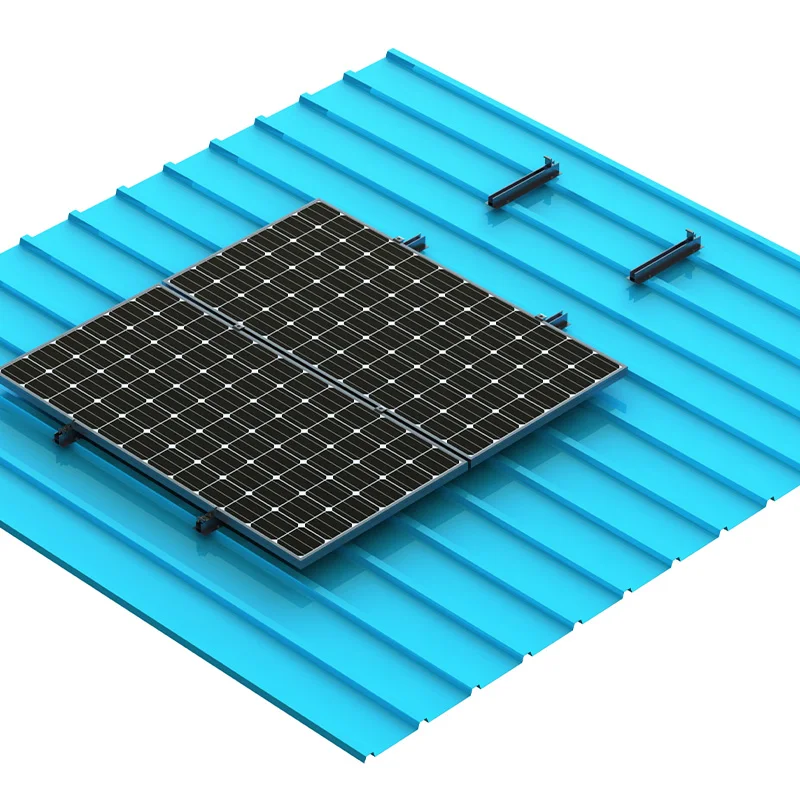

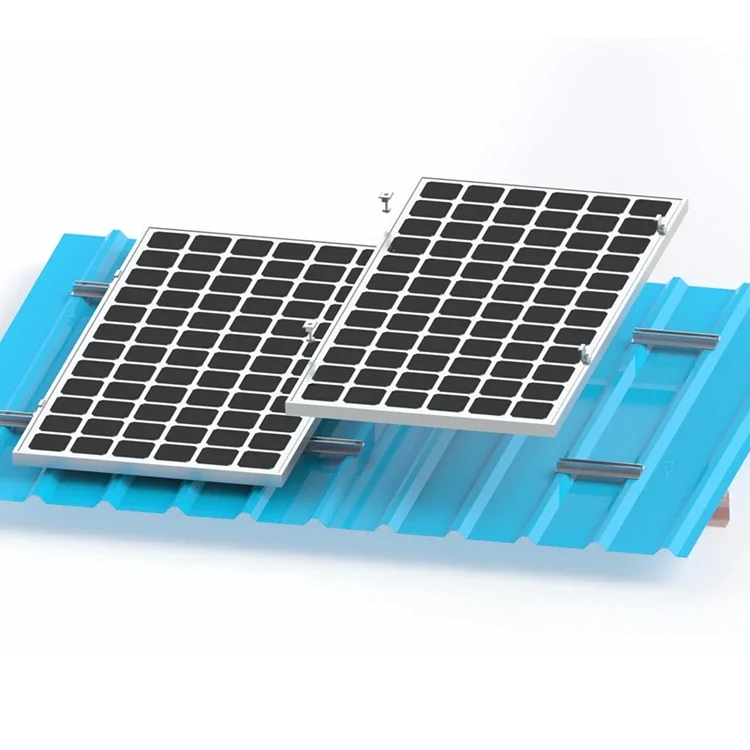

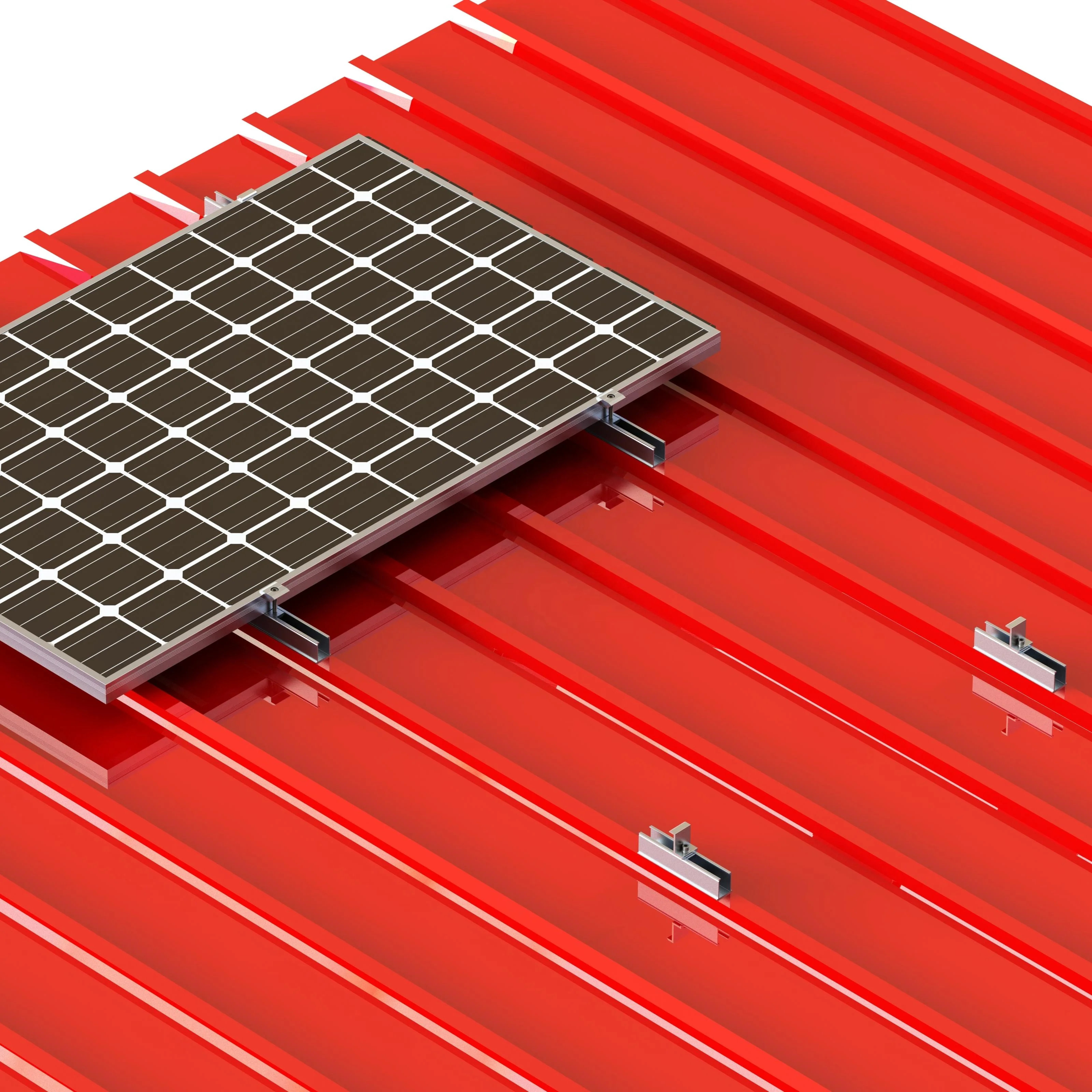

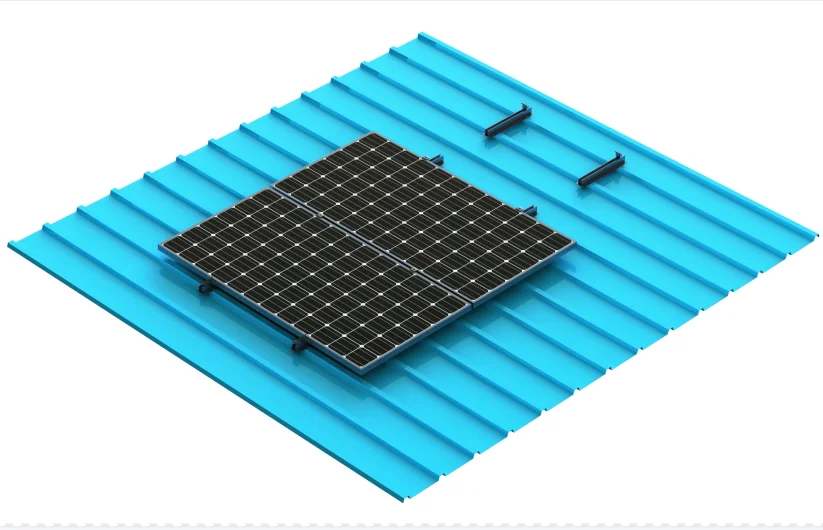

SFS-PR-02 SunRack Pitched Tin Roof
Solar Mounting System
Solar Mounting System

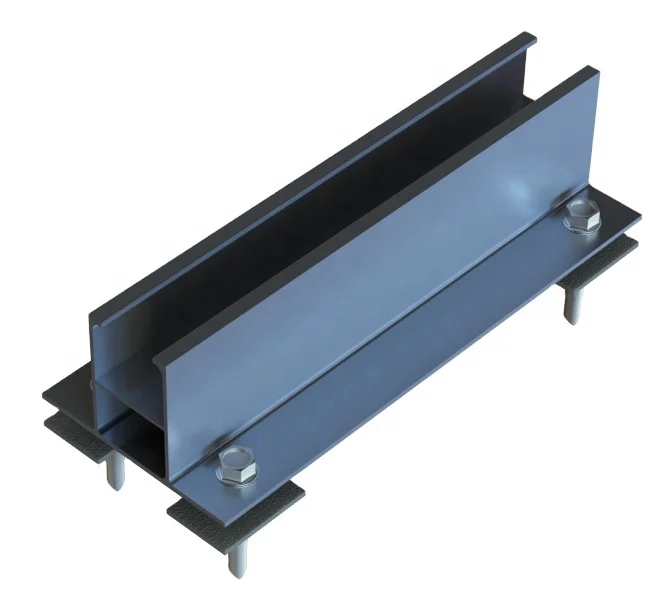

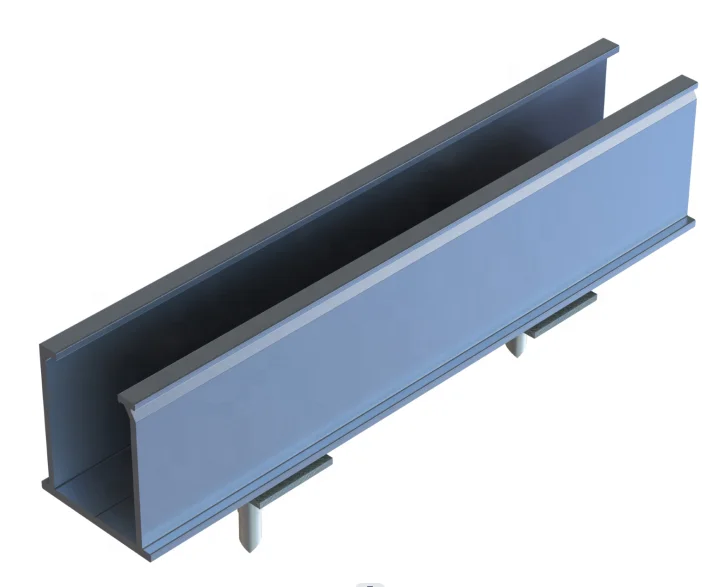

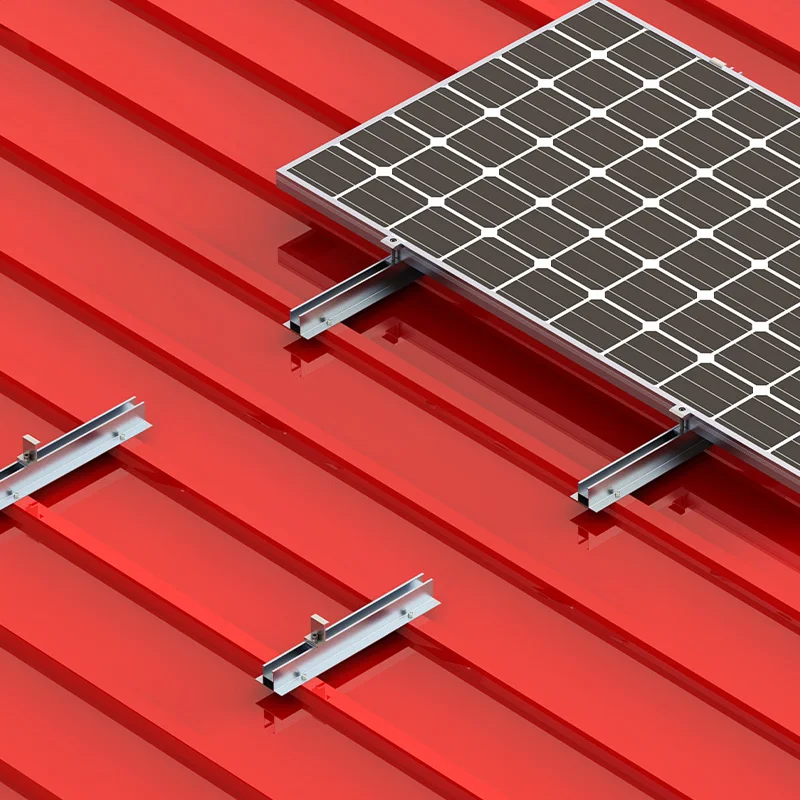

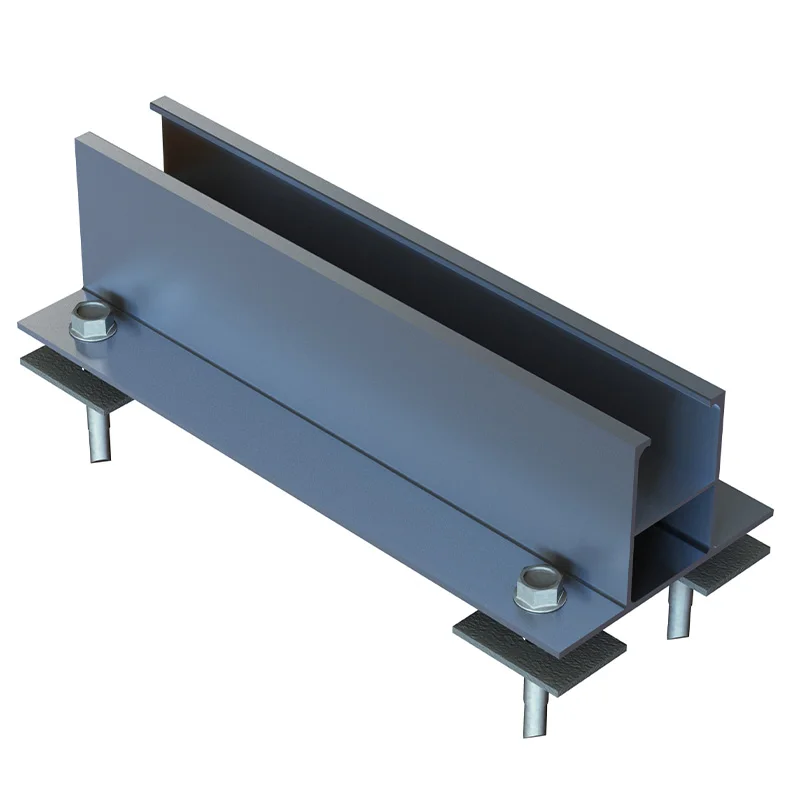

SFS-PR-02 is a mounting system for Tin Roof. With railess rail(mini rail), it saves materials and accessories to the maximum. Sunforson has the excellent engineer team and quality management system to provide the perfect service.
Installation Site |
Tin roof |
Application |
Framed solar panel for any size |
Panel Direction |
Vertical or landscape |
Structural Materials |
Aluminum, stainless steel |
Wind Load |
Up to 45 m/s |
Snow Load |
Up to 1KN/㎡ |
Design Standards |
BS 6399-2-1997 |
Warranty |
10 years on aluminum material |
Installation site: Tin roofs
Application: Framed solar panel for any size
Structural materials: aluminum, stainless steel
Survival wind speed: up to 45m / s
Design snow pressure: up to 1KN / m2
Inclination: 0 degree (the same angle as roof)
Panel direction: vertical or landscape
Design Standards: BS 6399-2-1997
Life: Design Life for 25 years, quality assurance for10 years
Application: Framed solar panel for any size
Structural materials: aluminum, stainless steel
Survival wind speed: up to 45m / s
Design snow pressure: up to 1KN / m2
Inclination: 0 degree (the same angle as roof)
Panel direction: vertical or landscape
Design Standards: BS 6399-2-1997
Life: Design Life for 25 years, quality assurance for10 years
Products Strengths of Sunforson technology
1. Easy Installation: The innovative Sunforson solar rail and G-Screw modules have greatly simplified the installation of PV modules. The System can be installed with a single Hexagon Key and standard tool kit. The Solar Roof system is aided by a very high level of preassembly. The G-Screw module and unique rail extension method allow greatly reduce installation time.
2. Great Flexibility: With the Sunforson Solar Roof, framed photovoltaic modules can be easily mounted on pitched roofs. The Solar Roof system has mounting accessories designed for application on almost every roof cladding available with its unique rail and excellent compatibility. Designed as a universal racking system, framed modules from all the popular manufacturers can be used.
3. High Accuracy: Without the need for onsite cutting, the use of our unique rail extending allows the system to be installed with millimeter accuracy.
2. Great Flexibility: With the Sunforson Solar Roof, framed photovoltaic modules can be easily mounted on pitched roofs. The Solar Roof system has mounting accessories designed for application on almost every roof cladding available with its unique rail and excellent compatibility. Designed as a universal racking system, framed modules from all the popular manufacturers can be used.
3. High Accuracy: Without the need for onsite cutting, the use of our unique rail extending allows the system to be installed with millimeter accuracy.
4. Excellent Adaptability: The height adjustment of the rails from Sunforson allows a level PV array to be established, no matter how uneven the roof is. Engineered to High Standard Sunforson Solar Roof is made to the highest standard, safe and strong structure designed to Comply with BS 6399-2-1997
5. Maximum Lifespan: All components are made of good quality extruded aluminum and stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
6. Guaranteed Durability: Sunforson provides a guarantee of 10 years on the durability of all components used.
5. Maximum Lifespan: All components are made of good quality extruded aluminum and stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
6. Guaranteed Durability: Sunforson provides a guarantee of 10 years on the durability of all components used.
Recommend Products
Company Profile
Certification of Solar Roof Rack for Home Solar System- Inquire with suppliers
Our customers visiting and PV EXPO
Why Choose Us
FAQ
Necessary info. for Sunforson to design and quote the solar mounting structures:
Part 1:
1: What kind of solar mount? roof mount,ground mount or carport mount?
Part 2:
2.Solar Panels Dimension: __mm (Length) x__mm (Width) x__mm (Thickness)
3.The layout of the solar panels __Rows x__columns, horizontal or vertical orientation
4.How many panel are you going to install? __Nos
5.Maximum Wind load: __m/s or__km/h or __mph；Maximum Snow Load: __KN/m2 (if have)
Part 3:
A:For Pitch Roof Solar Mounting System；
6.Roof type: tile roof, tin roof, asphalt shingle roof, or other?
B:For Flat Roof Mount Brackets/ Ground Mount Supports/Carport Mount Structures
7. Ground/ roof clearance (Height of panel lowest end off ground/roof floor): __mm
8.Solar mount tilt angle: __degree
