Solar Panel Mounting Brackets Standing Seam Roof Clamp Aluminum Mounting Solar Clamp Clip Lock

Solar Panel Mounting Brackets Standing Seam Roof Clamp Aluminum Mounting Solar Clamp Clip Lock

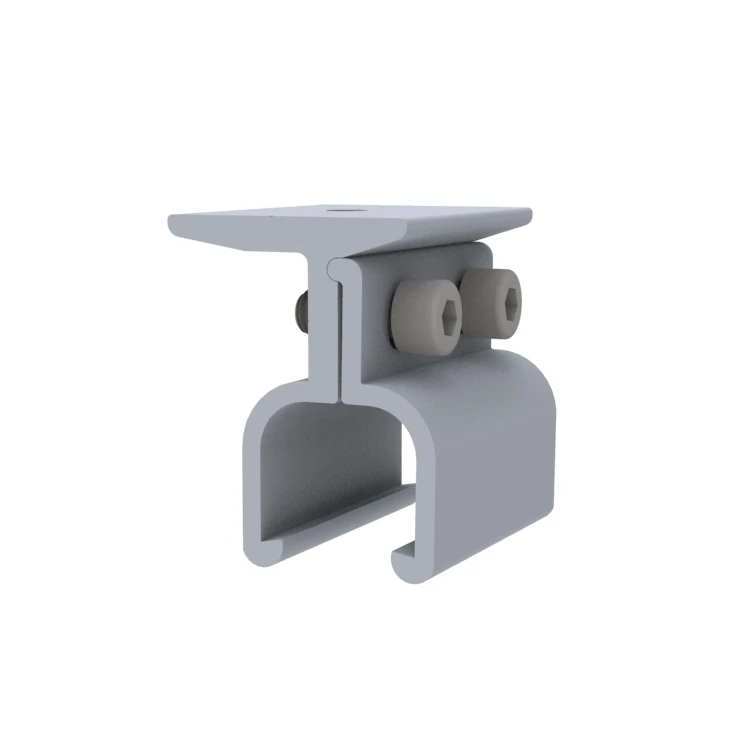

The SFS-TRG aluminum roof clamp is a specialized solar mounting component designed for standing seam metal roofs. Manufactured from high-strength aluminum alloy, this standing seam roof clamp offers excellent corrosion resistance and durability. Compatible with various seam profiles, this roof clamp provides secure attachment for solar panel racking systems without penetrating the roof surface. To ensure proper selection, customers must provide the seam specifications and spacing, allowing us to recommend the appropriate clamp and quantity for your specific roof configuration. Easy to install and maintenance-free.

Specification

Product Compatibility & Advantages:

The Sunforson SFS-TRG Aluminum Roof Clamp is a precision-engineered solar mounting solution designed specifically for standing seam metal roofs. Combining high-strength materials with innovative non-penetrating technology, this roof clamp delivers reliable performance while preserving complete roof integrity.

1. Premium Aluminum Alloy Construction

The SFS-TRG standing seam roof clamp is manufactured from high-grade aluminum alloy, offering an excellent strength-to-weight ratio and superior corrosion resistance. This aluminum roof clamp maintains structural integrity throughout the system's lifespan, even in coastal or industrial environments, while its lightweight nature simplifies handling and reduces installation fatigue.

2. Non-Penetrating Direct Bolt Fastening

This roof clamp utilizes a direct bolt-fastening method that secures onto the standing seam without any roof penetration. The clamp grips the seam firmly using opposing pressure from precision-engineered bolts, requiring no drilling or screws. This non-invasive approach completely eliminates leak risks, preserving the waterproof integrity of the metal roofing and maintaining manufacturer warranties.

3. Compatible with Various Seam Profiles

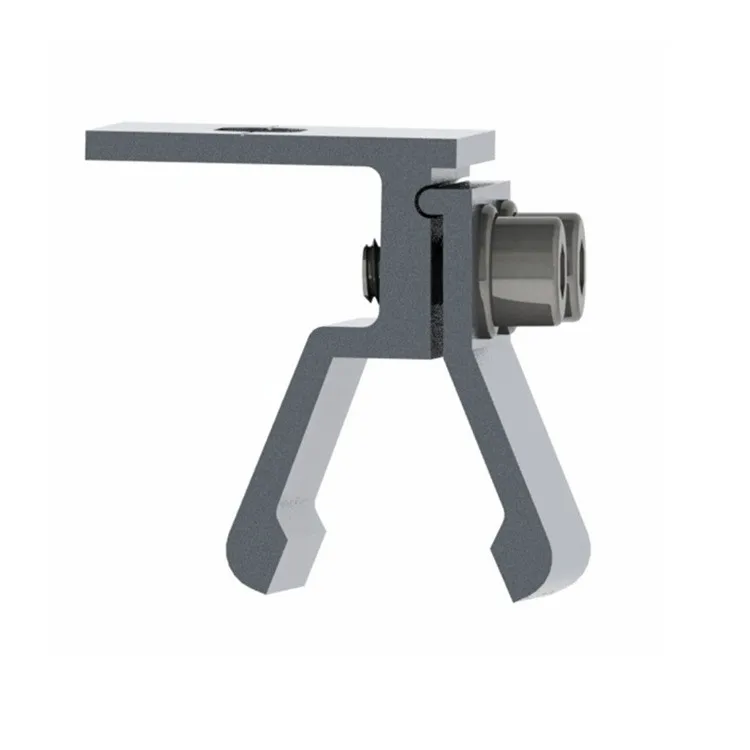

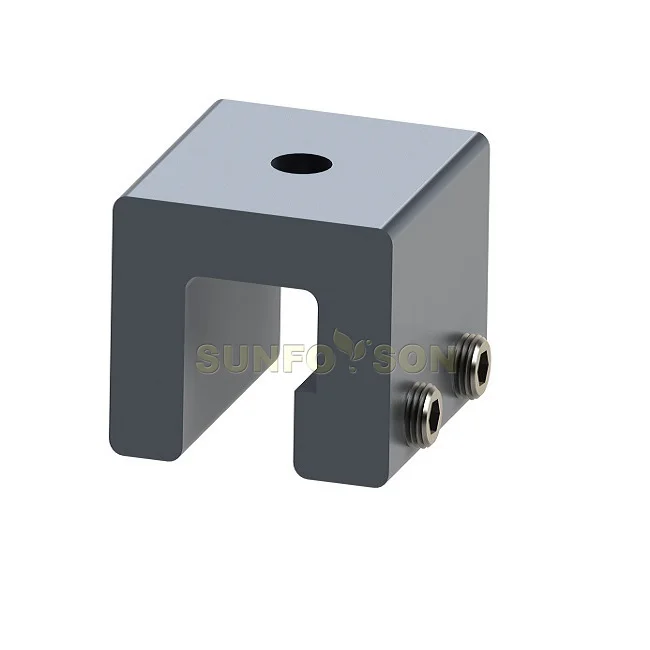

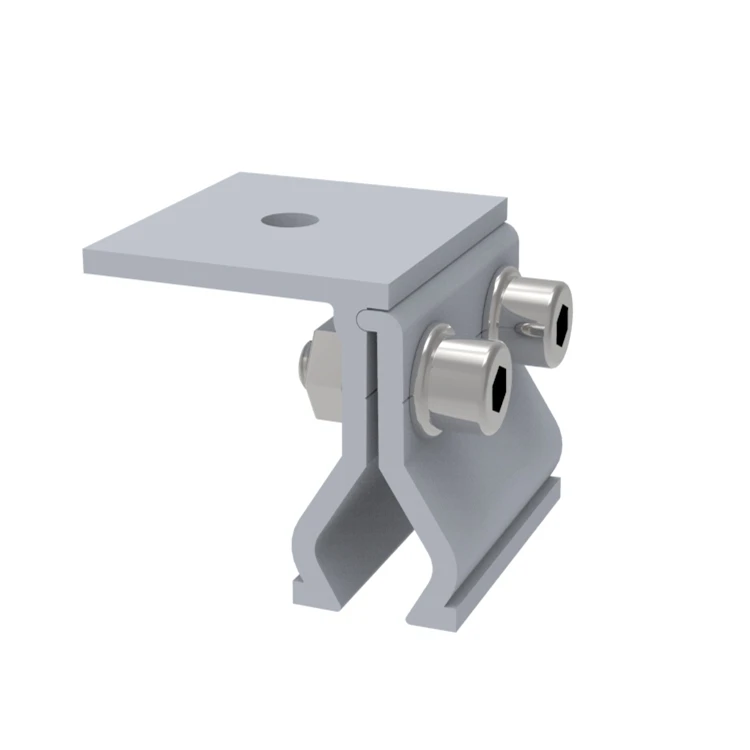

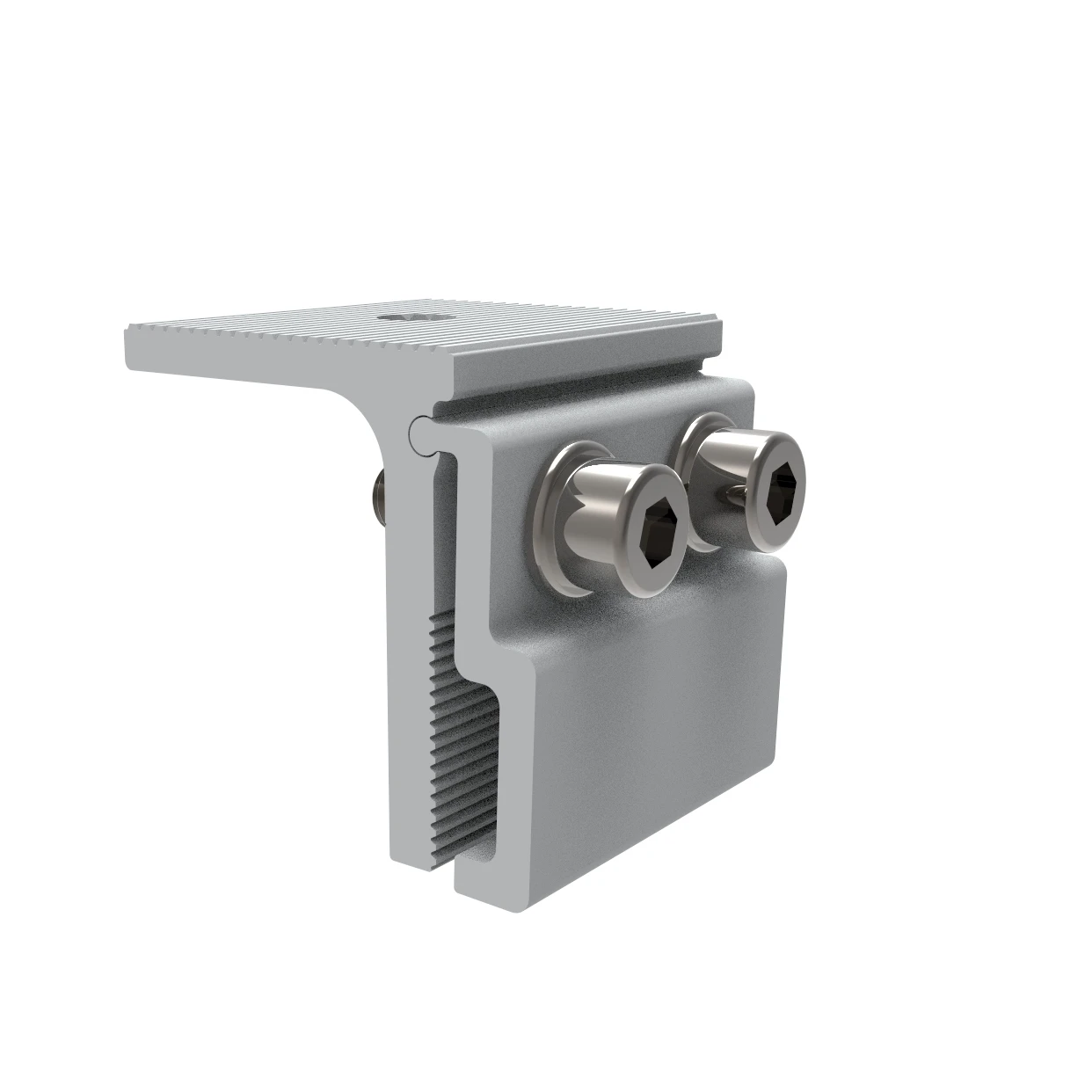

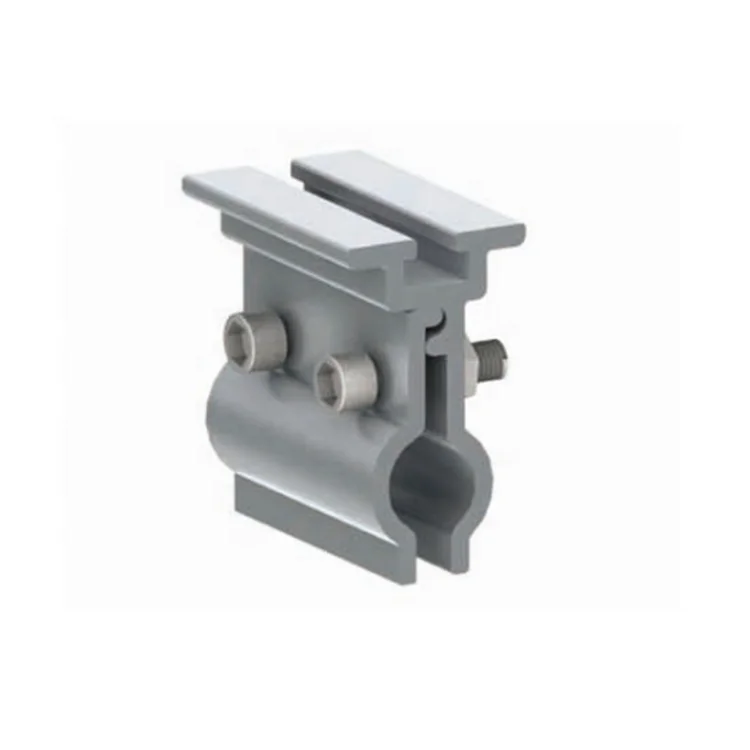

The SFS-TRG aluminum roof clamp is available in multiple configurations to accommodate different standing seam profiles—including trapezoidal seams, rounded seams, and custom profiles. Each clamp is precisely dimensioned to match specific seam widths and heights, ensuring optimal grip without deforming the seam structure.

4. Custom Sizing for Project-Specific Requirements

To ensure perfect compatibility, customers must provide the specific seam specifications and spacing of their metal roof. Our engineering team then recommends the appropriate clamp款式 and quantity for the exact roof configuration. This tailored approach eliminates guesswork and ensures every aluminum roof clamp delivers optimal performance for your unique project conditions.

5. Engineered for Structural Reliability

Every standing seam roof clamp is designed to distribute clamping forces evenly across the seam surface, preventing localized stress concentrations. When properly installed, this aluminum roof clamp provides holding capacities exceeding typical wind uplift and snow load requirements, ensuring long-term system stability.

6. Easy Installation with Minimal Tools

The SFS-TRG roof clamp features straightforward installation—simply position over the standing seam, tighten the opposing bolts to specified torque, and the clamp secures firmly. No special equipment or extensive training required, making installation fast and consistently reliable across the entire array.

7. Versatile System Integration

Once installed, this aluminum roof clamp provides universal mounting points for standard solar rail systems. Pre-drilled attachment holes accept common rail hardware, supporting both portrait and landscape panel orientations while maintaining secure attachment throughout the system's lifetime.

Conclusion

The Sunforson SFS-TRG Aluminum Roof Clamp combines premium materials, non-penetrating fastening, custom sizing, and installation efficiency into one superior product. Choose this standing seam roof clamp for your next metal roof solar project.

Application Scenario：

The Sunforson SFS-TRG Aluminum Roof Clamp is a versatile mounting solution engineered for standing seam metal roofs. Its flexible design and user-friendly features make it ideal for both professional installers and DIY enthusiasts.

• Compatible with Standing Seam Metal Roofs

This aluminum roof clamp is specifically designed for standing seam metal roofs. It secures directly onto the seam without penetration, making it suitable for commercial buildings, warehouses, factories, and agricultural structures with metal roofing.

• Flexible Panel Orientation

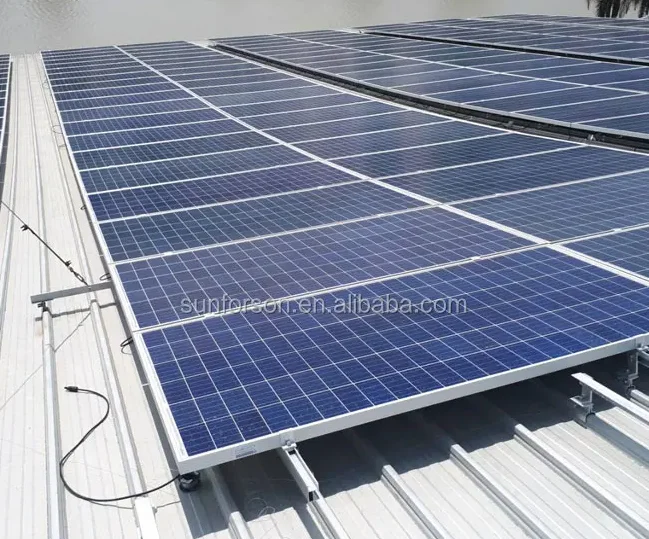

When combined with L feet and standard rail systems, the SFS-TRG roof clamp supports both portrait and landscape solar panel arrangements. Installers can orient photovoltaic modules vertically or horizontally based on roof space optimization and aesthetic preferences.

• Scalable Array Expansion

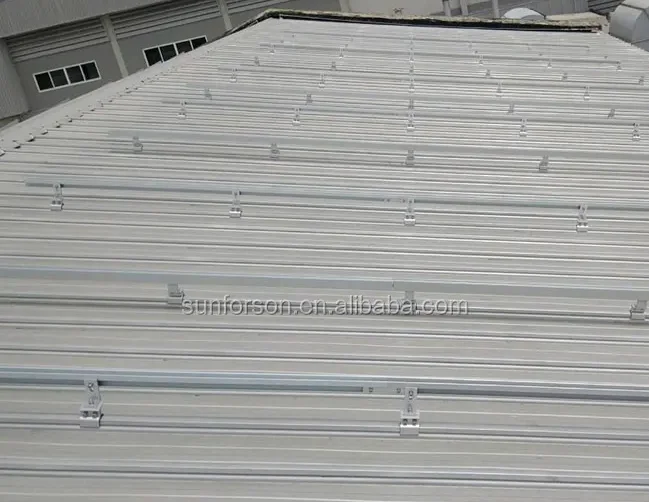

The clamp + L foot + rail configuration enables virtually unlimited solar array expansion. Starting from a small system, this combination allows easy extension to accommodate growing energy needs while maximizing available roof surface utilization.

• Simple and Quick Installation

The SFS-TRG standing seam roof clamp features intuitive installation—simply position over the seam, tighten bolts, attach L feet, and secure rails. No drilling or roof penetration required, significantly reducing installation time and labor costs.

• DIY-Friendly Application

Designed with end-users in mind, this aluminum roof clamp is exceptionally easy to work with. Clear installation logic and minimal components make it accessible for property owners attempting self-installation, while maintaining professional-grade reliability and safety standards.

FAQ – Frequently Asked Questions：

Necessary info. for Sunforson to design and quote the solar mounting structures:

1. Solar Panels Dimension: __mm (Length) x__mm (Width) x__mm (Thickness)

2. The layout of the solar panels __Nos in a row

3. How many panel are you going to install? __Nos

4. Maximum Wind load: __m/s or __km/h or __mph

5. Maximum Snow Load: __KN/m2 (if have)
6. The specification drawing of the standing seam roof
