SunRack Ground Screw Mounting System
-
Item No.:
SFS-GM-02B -
payment:
L/C T/T -
product origin:
Fujian,China -
color:
Natural or Customized -
shipping port:
Xiamen -
lead time:
20
- Overview
- Recommended Products
Using SunRack , Enjoying Sunshine!
Using SunRack not only help you determine the best racking solution for solar power project,but also ensure you win the highest investment return and the most efficient of Enjoying Sunshine.
1. Lower cost, Incomparable value ;
2. Faster installation, Flexible attachment ;
3. More Perfect Service, Complete technical support ;
4.10 years limited warranty , 20 years design life .

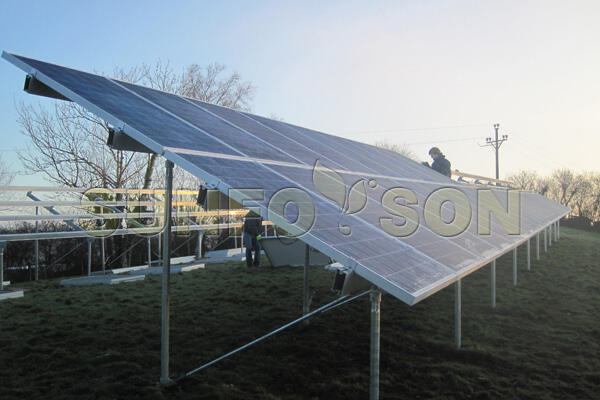

SFS-GM-05 SunRack Ground Screw Mounting System
Sunforson has developed different series ground screws to meet varied applications. This screw-in foundation system is not only suitable for natural ground, but also for dense and even tarred surfaces. Applications are countless, from securing garden umbrellas, windy dryers and fences to carports, flag poles and traffic signs, solar panel systems, advertising boards and even outdoor building for events and expositions for its quick and easy created and removed advantages.
Installation Site:Open ground
Support Rail:Extruded aluminum
Applicable Temperature:50°~100°
Wind Load: 42m/s
Snow Load: 1.0kN/m2
Applicable Module: Framed
Module Orientation: Landscape or portrait
Code Compliance:AS/NZS 1170;
Material: Aluminum, stainless steel
Warranty: 10 years on material
1. Easy Installation
The innovative Sunforson solar rail and G-Screw modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kit.The G-Screw module and unique rail extension method allow greatly reduced installation times.
2. Great Flexbilitity
With the Sunforson ground mounting,framed or frameless photovoltaic modules can be easily mounted on ground.Designed as a unversal racking system,framed modules from all the popular manufacturers can be used
3. High Accuracy
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.
4. Excellent Adaptability
The height adjustment of the rails from Sunforson allows a level PV array to be established, no matter how uneven the ground is. To High Standard Sunforson System is made to the highest standard,safe and strong its designed to Comply with AS/NZS 1170.
5. Maximum Lifespan

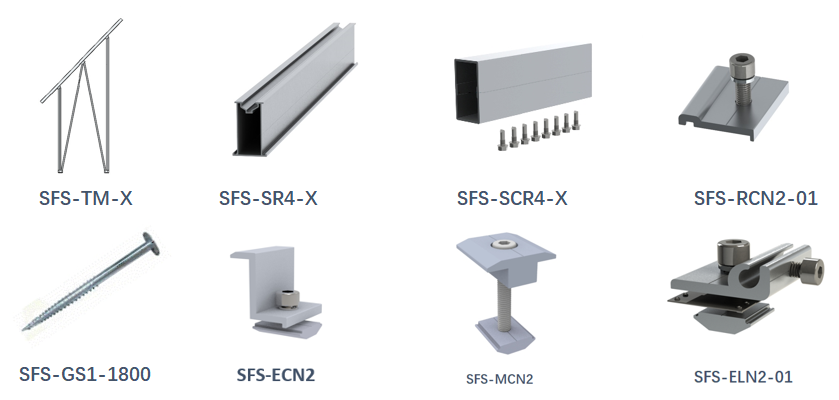

All components are made of quality extruded aluminium and stainless steel, Hot Galvanizing Steel. The high corrosion resistance guarantees the maximun possible lifespan and is also completely recyclable.
6. Guaranteed Durability: Maximum Lifespan
Sunforson provides a guarantee of 10 years on the durability of all components used
