Aluminum Alloy PV Carport Mounting Structure Residential Waterproof Car Shed Canopy Solar Panel Support Frame Corrosion Free Material
-
Item No.:
SFS-CP-03 -
payment:
L/C T/T -
product origin:
Fujian,China -
color:
Natural or Customized -
shipping port:
Xiamen -
lead time:
25
- Overview
- FAQ
- Get Quick Quote
- Recommended Products
SFS-CP-03 Aluminum Alloy PV Carport Mounting Structure

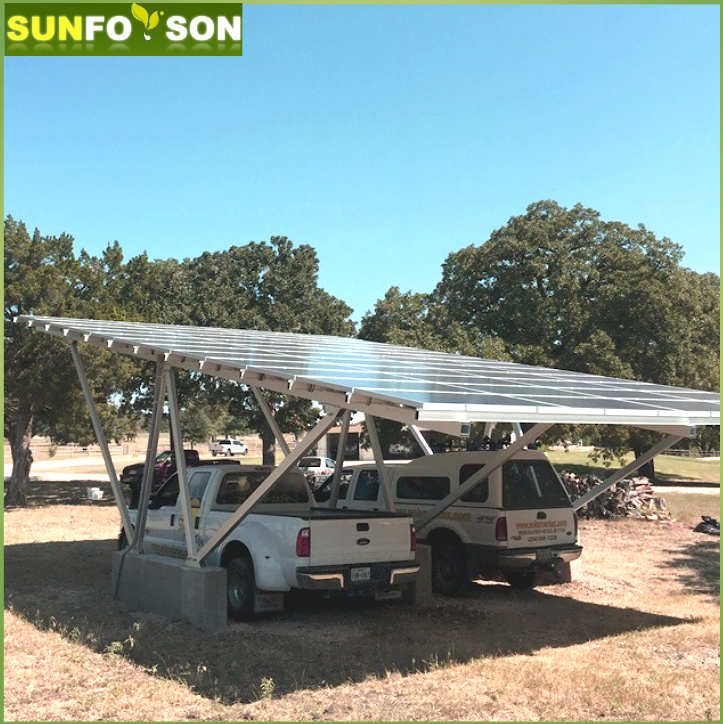

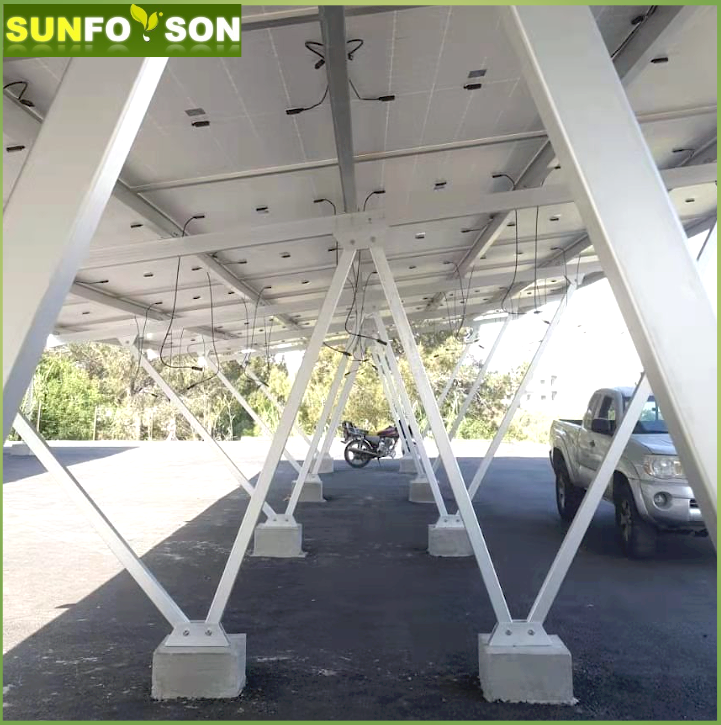

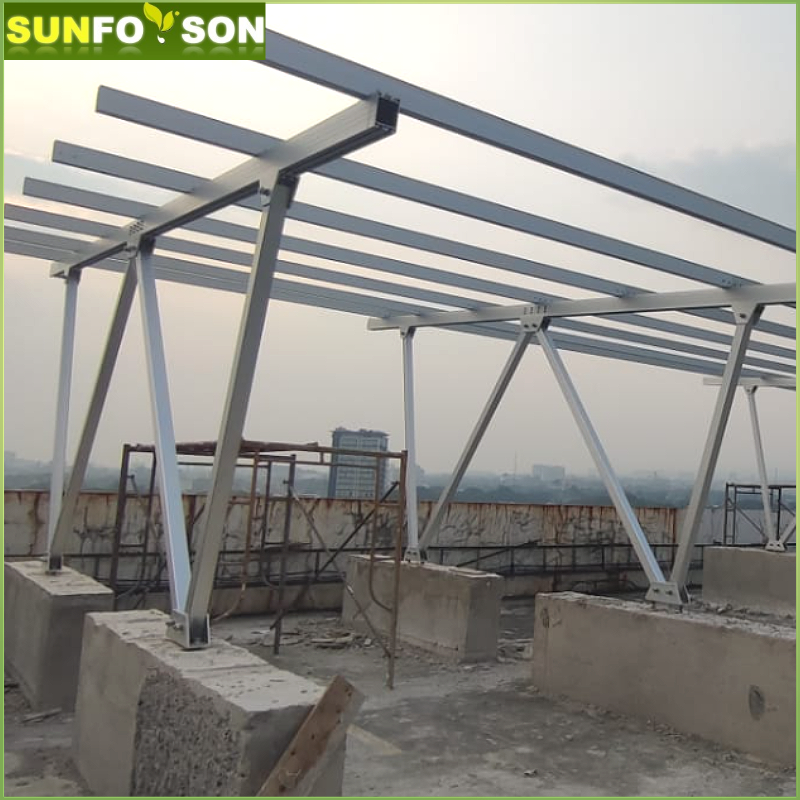

Sunforson's SFS-CP-03 double row carport mounting adopts triangle supporting structure technology, which is very strong and secure. With full aluminum alloy and SS 304 bolts and nuts, it has a concise and elegant appearance. It is a quite easy and fast installation without any welding on the site.
Features：
1）Quick installation with pre-assembled components, requiring no on-site drilling or welding to save installation time.
2）Professionally engineered for a stable structure and optimized system design, helping reduce overall project costs.
3）Designed to withstand wind, snow, seismic, dynamic, and static loads, ensuring long-term safety and high load capacity.
4）A unique rail design creates a clean and modern appearance while providing effective rain protection.5）Manufactured from high-quality aluminum and stainless steel, offering high corrosion resistance and a 10-year quality assurance.
Product Description:
Installation Site |
Open Ground |
Installation Angle |
5° or 10° or 15° |
Building Height |
2.3~3.5m |
Material |
Aluminum Alloy (AL6005-T5) |
PV Modules |
Framed or Frameless Panel |
Module Orientation |
Horizontal or vertical |
Module Width |
Any Size |
Survival wind speed |
Up to 130mph (60m/s) |
Survival snow pressure |
Up to 30psf (1.4kN/m2) |
Certification Standards |
BS EN 1991-1-4:2005/ASCE7/DPT1311-50 |
Warranty |
10 years on material |

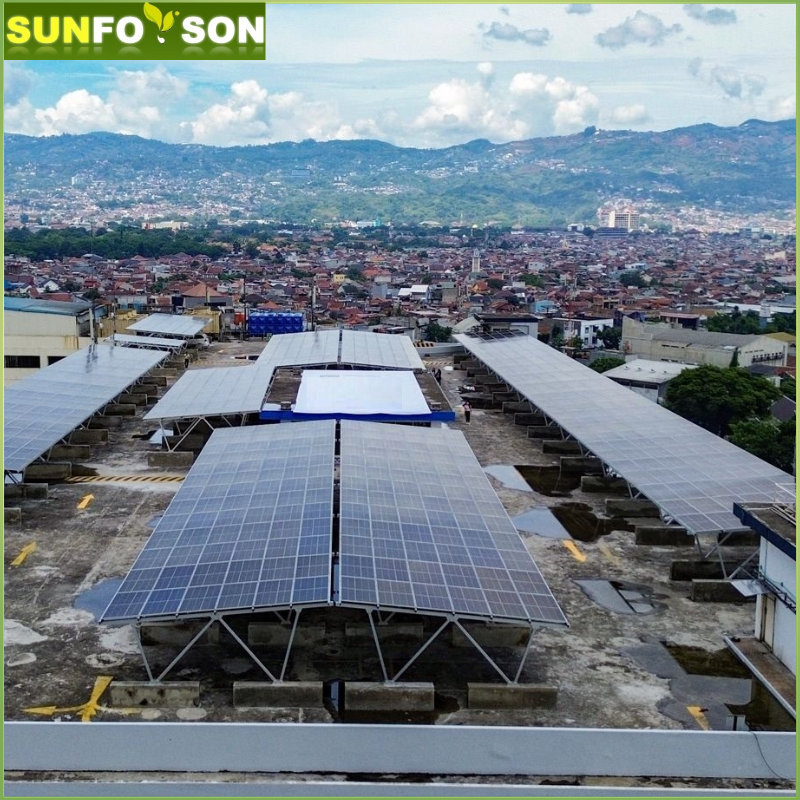

Customer Cases：
Case 1: Commercial Solar Carport Project – Japan
Project Location: Japan
Project Scale: approx. 300 kW
Application: Commercial parking lot solar carport
Performance & Results:
The double-row carport system was smoothly installed, offering optimized space utilization, stable shading, and increased energy output. It performs reliably under strong winds and seasonal snow, ensuring long-term structural safety and power generation efficiency.
Case 2: Commercial Solar Carport Project – Chile
Project Location: Chile
Project Scale: approx. 500 kW
Application: Commercial parking lot solar carport
Performance & Results:
Designed for efficiency and durability, the dual-row carport system maximizes parking space while delivering stable shading and reliable solar energy output. It withstands wind and snow loads, ensuring long-term safety and performance.
Product Compatibility & Advantages:
1）Quick installation with pre-assembled components, requiring no on-site drilling or welding to save installation time.
2）Professionally engineered for a stable structure and optimized system design, helping reduce overall project costs.
3）Designed to withstand wind, snow, seismic, dynamic, and static loads, ensuring long-term safety and high load capacity.
4）A unique rail design creates a clean and modern appearance while providing effective rain protection.
5）Manufactured from high-quality aluminum and stainless steel, offering high corrosion resistance and a 10-year quality assurance.
FAQ – Frequently Asked Questions：
Q1: What types of solar panels are compatible with this carport mounting system?
A: The system is compatible with most standard framed solar modules and supports various panel sizes and power ratings.
Q2: What is the warranty period for the carport mounting system?
A: The standard warranty is 10 years, with a design service life of up to 25 years.
Q3: Can the system be customized for different parking layouts?
A: Yes. The carport structure can be customized based on parking space size, layout, and site conditions.
Q4: Is the carport system suitable for high wind or heavy snow areas?
A: Yes. The structure is designed and tested to meet wind and snow load requirements according to local standards.
Q5: Are all mounting accessories included in the supply?

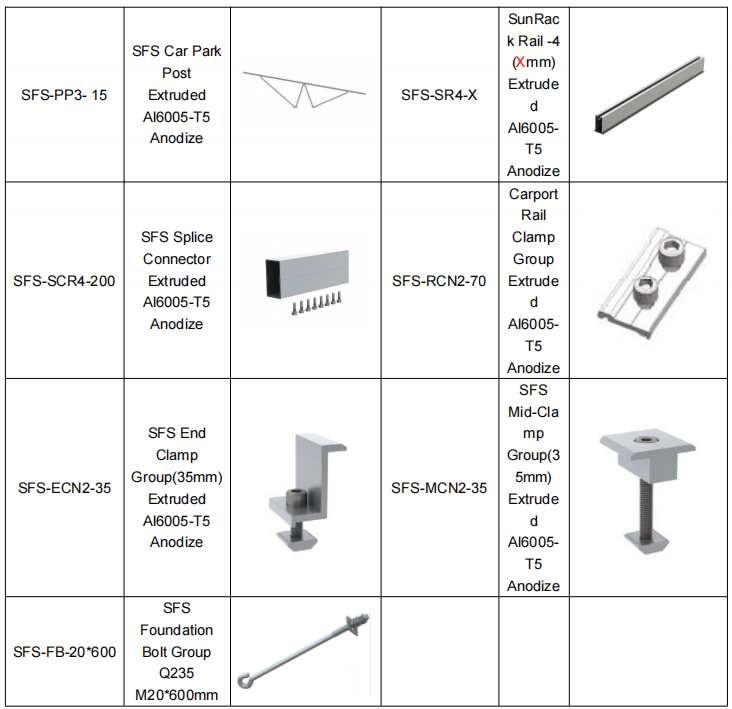

A: Yes. Rails, clamps, fasteners, and necessary accessories are supplied as a complete system.
Q: What’s the lead time for custom brackets? Do you provide installation support?
A: Standard materials are in stock; custom design lead time is about 15-30 days, subject to the real situation. We provide an installation manual or video.
Q: What is the MOQ for custom orders? How are samples charged and shipped?
A: MOQ typically depends on the structural material and type. Samples are chargeable but fully refundable against bulk orders. We ship small samples via DHL/UPS (5-7 business days worldwide).
Q: Are your brackets internationally certified (e.g., CE)?
A: Yes. Our standard designs are certified by CE.
Q: What is your quality warranty period and coverage?
A: We offer a 10-year product warranty (aluminum) and a 5-year product warranty (carbon steel). Exclusions include improper installation, natural disasters, or lack of maintenance.
Q: What are your payment terms?
A: Standard terms: 100% payment before shipment(small order). 30% deposit + 70% balance before shipment (big orders).
If you need a detailed structure drawing and a quotation sheet, please provide the following necessary info to help our engineer design:
1.Solar panels dimension: __mm (L) x __mm (W) x __mm (T), Power: __W, Qty:___, Frame or Frameless ?
2. The layout of the solar panels: __rows x__columns, horizontal or vertical orientation
3. Maximum Wind load: __m/s or __km/h or __mph
4. Maximum Snow Load: __KN/m²(if have)
5. Minimum Ground Clearance:____mm
6. Solar mount tilt angle: __degree
