In the architecture of a photovoltaic system, every component must perform with absolute precision. The Mid Clamp Solar is a quintessential element that defines the structural cohesion and longevity of the entire solar array. At Sunforson, we have leveraged our extensive experience in engineering and international building standards to develop a Mid Clamp Solar solution that addresses the critical challenges of panel fastening: mechanical stability, material compatibility, and installation efficiency.

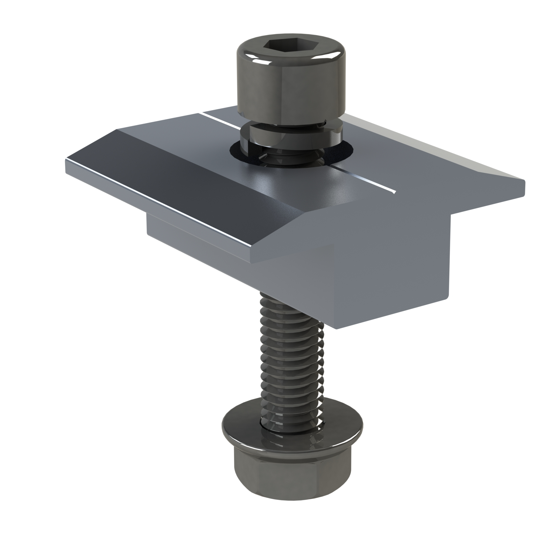

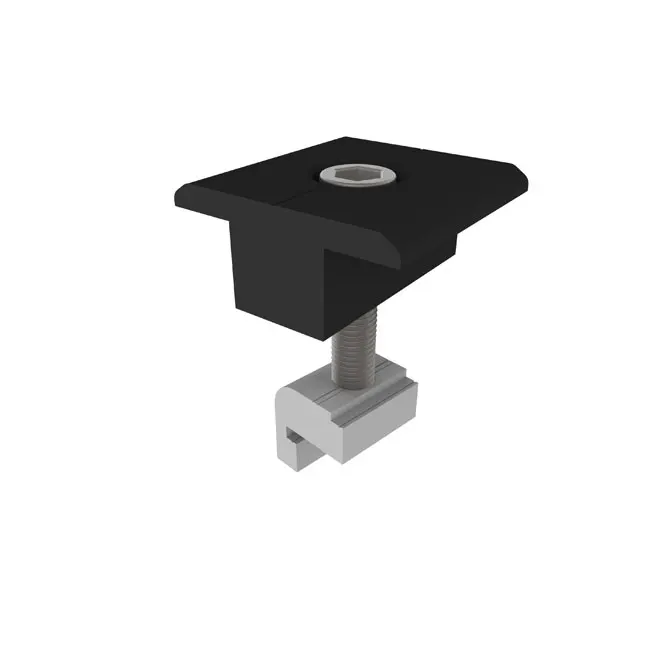

The primary function of the Mid Clamp Solar is to act as the central fastener that joins two solar panels side-by-side onto a mounting rail. This is distinct from end clamps, which cap the ends of the array. When designing our Mid Clamp Solar, we focused on the mechanical stresses that occur over a system’s lifetime. Solar panels are subject to dynamic loads from wind uplift, snow accumulation, and thermal expansion. A substandard Mid Clamp Solar can loosen over time, leading to panel misalignment, increased stress on the module frames, or even catastrophic failure. Our solution utilizes high-strength aluminum alloy and A2-70 stainless steel bolts, allowing for precise torque application that secures the panels without warping their frames. The anti-loosening mechanism within our Mid Clamp Solar ensures that the clamping force remains consistent despite decades of thermal cycling.
Application scenarios for our Mid Clamp Solar are diverse. In a typical residential pitched roof installation, our clamps are used to secure panels across roof hooks and rails. Here, the lightweight nature of the aluminum Mid Clamp Solar is crucial for handling on elevated surfaces. For a large-scale commercial ground mount project in a region like Nigeria, where high winds are a factor, the Mid Clamp Solar provides the necessary grip to prevent uplift. We have successfully supplied our Mid Clamp Solar components to projects in Thailand and Vietnam where high humidity and coastal conditions demand superior corrosion resistance. The anodized finish and material selection ensure that the clamp does not become a point of failure due to rust or galvanic corrosion.

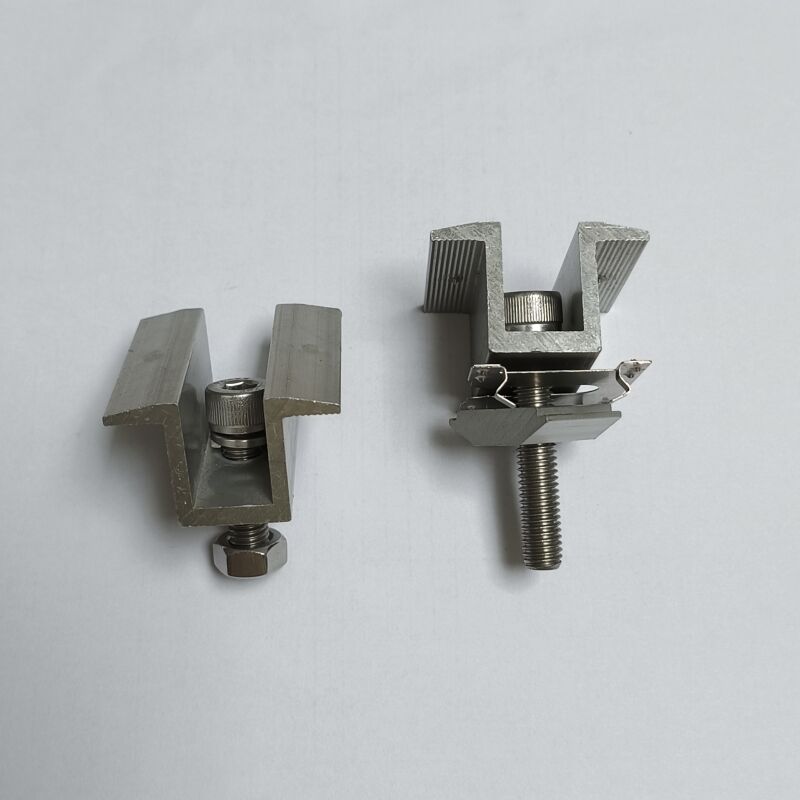

Furthermore, we understand that time is money for our installers and distributors. Our Mid Clamp Solar is designed for what we call "tool-ready" efficiency. The Mid Clamp Solar arrives with pre-assembled bolts and EPDM gaskets. Installers need only slide the clamp into the T-slot of the rail, place the panels, and tighten to the specified torque. This process is streamlined for large-scale projects where thousands of clamps are required. We also offer compatibility with a wide range of rail profiles, ensuring that our Mid Clamp Solar can be integrated into existing structures or new builds without logistical hurdles. By choosing Sunforson’s Mid Clamp Solar, our partners—from installers to distributors—benefit from a product that reduces installation time, enhances system safety, and guarantees performance, all backed by our global service network and technical expertise.
