BIPV Solar Mounting System Aluminum PV Brackets
-
Item No.:
SFS-BIPV-01 -
Payment:
L/C T/T -
Product Origin:
Fujian,China -
Color:
Natural or Customized -
Shipping Port:
Xiamen -
Lead Time:
20 days
- Overview
- Recommended Products
FAQ for BIPV Solar mounting Structures?Necessary info. for Sunforson to design and quote the solar mounting structures:
-
1. What kind of solar mount? roof mount,ground mount or carport mount?2. Solar Panels Dimension: __mm (Length) x__mm (Width) x__mm (Thickness)3.The layout of the solar panels __Rows x__columns, horizontal or vertical orientation4.How many panel are you going to install? __5.Maximum Wind load: __m/s or__km/h or __mph6.Maximum Snow Load: __KN/m2 (if have)7.Roof type: tile roof, tin roof, asphalt shingle roof, or other?8. Ground/ roof clearance (Height of panel lowest end off ground/roof floor): __mm9.Solar mount tilt angle: __degre
BIPV Solar Mounting System
The Sunforson “SunBIPV” leads the most advanced BIPV technology, gets rid off the metal sheet which many others primary BIPV solutions adopting- using metal sheet under panels increasing the cost and is not the real BIPV solution.The SunBIPV solution greatly cuts off the installation time and lower the cost, makes the final installation appearance is much better than primary solutions.
SFS-BIPV-01 is a waterproof bracket with frame photovoltaic panels, which can be used for the waterproof of roof, car shed, sunshine shed and other supports. With excellent waterproofing property, BIPV Sloar Mounting System is popular with customers.
Product Specification:
| Structural materials | Aluminum, stainless steel |
| Solar Panel Type | Any type of solar panels |
| Survival wind speed | Up to 50m / s |
| Design snow pressure | Up to1.4KN / ㎡ |
| Tilt Angle | Customized |
| Component direction | Vertical |
| Design Standards | IBC&AS / NZS 1170 |
| Life | Design Life for 25 years, quality assurance for 10 years |
Features
1.Easy Installation
2.Great Flexbilitity
3.High Accuracy
4.Excellent Adaptability
5.Maximum Lifespan

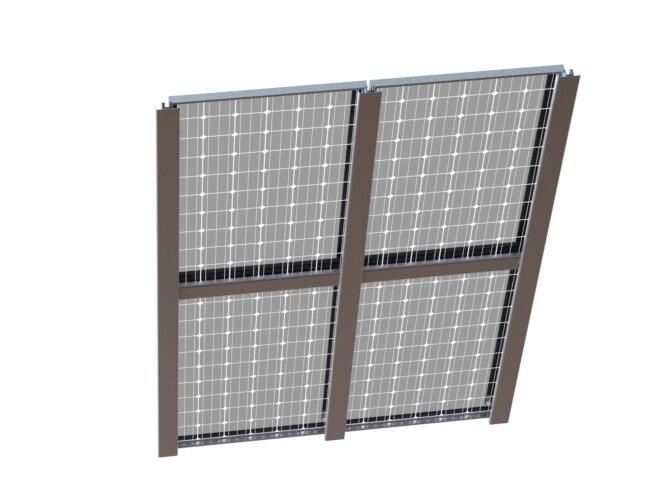

Overview of system components
The details show

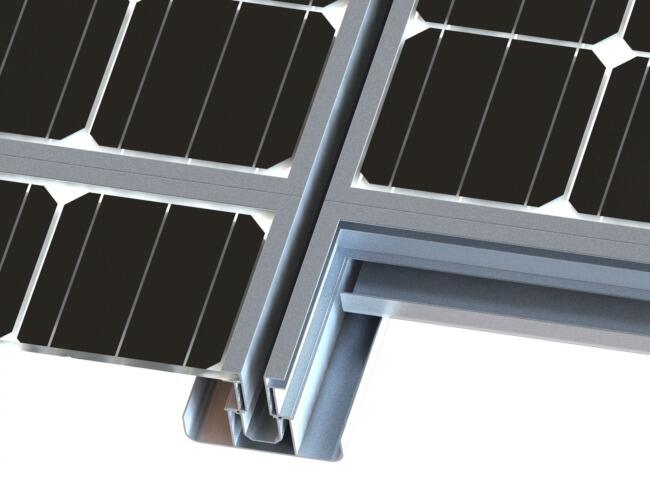

1. Double drainage structures, fast drainage and good waterproof

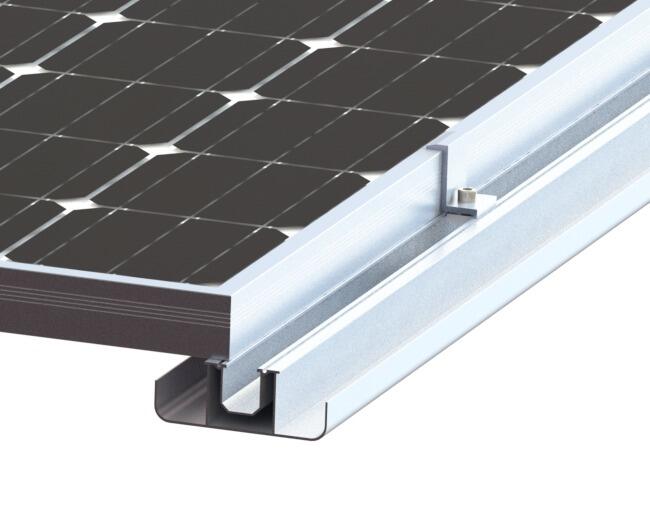

2. Widen the gutter to include the panel border
