SunRack Triangular Mounting Support
-
Item No.:
SFS-FR-03 -
payment:
L/C T/T -
product origin:
Fujian,China -
color:
Natural or Customized -
shipping port:
Xiamen -
lead time: 15 days
- Overview
- FAQ
- Recommended Products

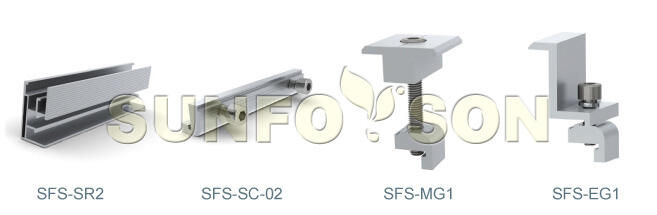

- Present the installation steps in 4-6 simple steps (avoid lengthy descriptions): ① Plan the layout and place the pre-assembled triangular brackets on the roof; ② Install the ballast pan and place concrete blocks (ballast) to fix the brackets; ③ Attach aluminum rails to the brackets; ④ Clamp the solar panels onto the rails; ⑤ Complete wiring and grounding (if applicable).
- Support with installation diagrams or short videos: Each step is matched with a clear diagram, marking key components (e.g., ballast pan, clamps, rails). The video can show the entire installation process of a single bracket, highlighting that no professional drilling equipment is needed, and installation can be completed quickly with standard tools, saving labor costs and time.
- Add installation tips: Such as “No on-site cutting or welding required” and “Pre-assembled components reduce on-site installation time by 30%” to emphasize convenience.

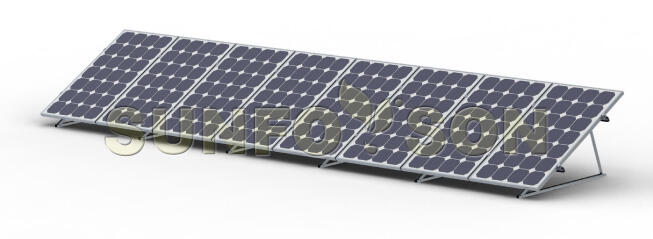

SFS-FR-03 SunRack Flat Roof Triangular Mounting System II
The solar flat roof racking system technology features a simple and dignified appearance, a delicate and stable structure, and enables on-site installation without welding, ensuring high reliability. It meets the characteristics of structural bearing capacity, combines practicality, and optimizes material usage. Some solar panels are connected using a rail-mounted installation method, which is suitable for various solar panels and easy to install. This significantly improves on-site construction efficiency and saves costs.

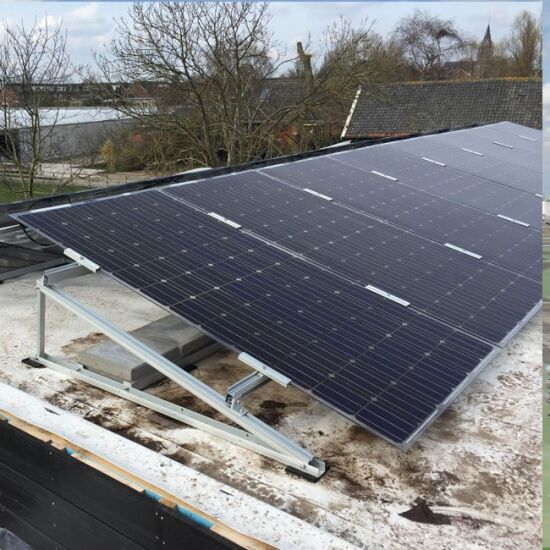

Installation Location: Flat roof
Solar Panels: Solar panels of any size
Wind Speed: Up to 60 m/s
Snow Load: 1.4 kN/㎡
Applicable Orientation: Landscape
Code Compliance: AS/NZS 1170
Materials: Aluminum, stainless steel
Warranty: 10-year material warranty
1. Compatible with any panel type
2. Stable under extreme weather conditions
3. Foldable triangular bracket for easy installation
4. All-aluminum structure with high quality
-

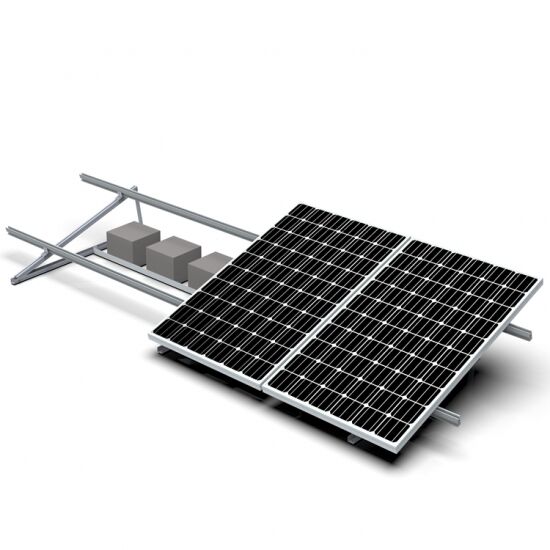

Q: How does the ballasted design ensure stability without drilling into the roof?
-
A: The bracket relies on the weight of ballast (concrete blocks, etc.) and the triangular structure’s inherent stability to resist wind and snow loads. It has passed professional load-bearing tests and meets international standards for wind and snow resistance, ensuring long-term stable operation without roof penetration.
-
Q: Can the tilt angle be adjusted according to different regions? A: Yes, the tilt angle can be customized within the range of 10°-60° (or actual adjustable range) to adapt to solar irradiation conditions in different latitudes, maximizing solar energy generation efficiency.
-
Q: Is the bracket compatible with my solar panels? A: SFS-FR-03 is compatible with most standard monocrystalline, polycrystalline, thin-film, and bifacial solar panels. It supports panel lengths up to XX cm and frame thickness of XX mm. Customization is available for special-sized panels.
-
Q: What is the warranty period, and how to get after-sales service? A: We provide a 10-year product warranty and 25-year design lifespan. For after-sales needs (installation guidance, component replacement), customers can contact our global after-sales team via email or phone, and we will respond
