Specification

Product Compatibility & Advantages:

The SunRack FR-03 is a versatile solar PV mounting structure designed for pitched roofs, combining precision engineering with installation flexibility. This photovoltaic support system utilizes advanced rail technology to deliver a reliable solar panel racking solution for residential and commercial applications. Below are the core strengths of this solar mounting system:

1. Simplified Installation with Innovative Solar Rails
The FR-03 solar PV racking system features uniquely designed solar rails and N modules that streamline the installation process. These photovoltaic supports enable rapid assembly of solar panel mounts without complex procedures. The intelligent solar module racking design reduces labor requirements while ensuring every PV support structure is securely positioned, making this solar mounting structure ideal for projects demanding efficiency.

2. Flexible Solar Panel Mounting Options
This photovoltaic racking system offers exceptional adaptability through multiple installation methods. For roof protection, the solar PV mounts can utilize ballast, creating a non-penetrating solar panel support system that preserves roofing integrity. Alternatively, installers can employ expansion bolts with the solar rails for a fixed solar mounting structure that reduces material costs. The solar module brackets accommodate framed photovoltaic panels on nearly any roof cladding, making this PV support system universally compatible.

3. Extendable Solar Rails for Custom Configurations
A standout feature of this solar panel racking system is its extendable rail design. The unique solar rail connection mechanism allows installers to lengthen the photovoltaic support structure precisely according to array requirements. This solar PV mounting approach eliminates onsite cutting, enabling millimeter-perfect solar module support placement. Whether expanding a small residential array or configuring a larger solar racking structure, the extendable solar rails provide unlimited configuration possibilities without compromising structural integrity.

4. Precision Engineering for Uneven Roofs
The FR-03 photovoltaic mounting system incorporates height-adjustable solar rails that compensate for roof irregularities. These adjustable solar panel supports ensure a perfectly level PV array structure regardless of underlying surface variations. Each solar mount and photovoltaic bracket maintains precise module alignment, optimizing energy production across the entire solar panel racking installation. This engineering precision makes the solar support structure reliable even on challenging roof geometries.

5. Durable PV Support Construction
Built to the highest standards, this solar mounting system utilizes premium extruded aluminum and stainless steel components. The corrosion-resistant solar PV rails and photovoltaic brackets guarantee maximum system lifespan while being fully recyclable. Engineered to comply with EN-1991 standards, the solar panel racking structure delivers safe, strong performance backed by a 10-year durability guarantee on all solar module supports and PV mounting components.

Application Scenario：

Application Scenarios of SunRack SFS-FR-03 Solar PV Mounting System

The SunRack SFS-FR-03 is a versatile solar mounting solution designed for various installation environments with flexible fixation options.

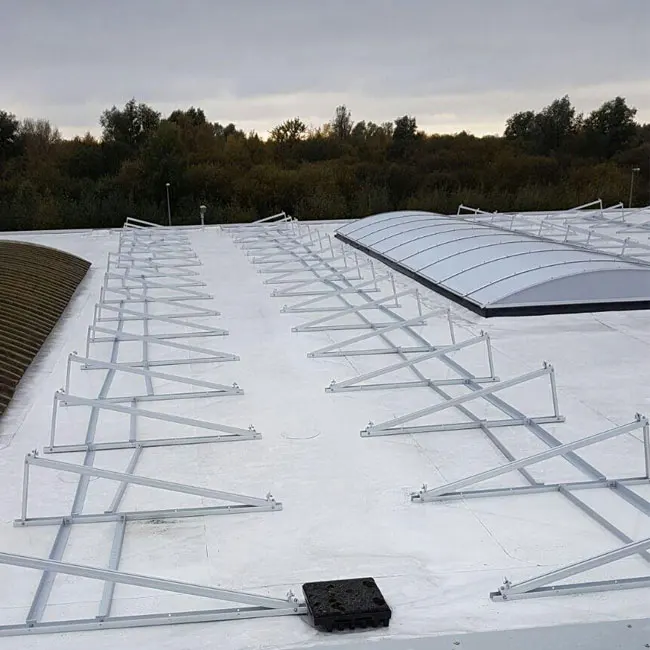

1. Flat Commercial Roofs

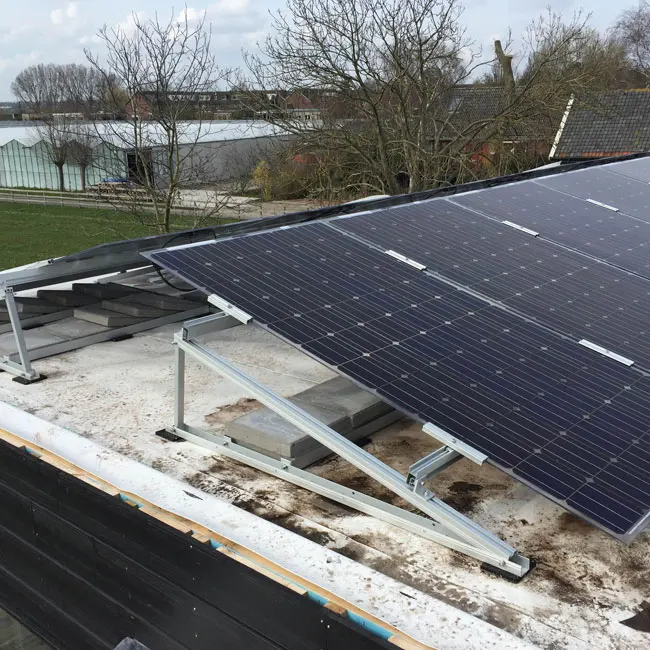

Ideal for warehouses, factories, and office buildings, this solar PV support structure uses concrete ballast blocks to secure the photovoltaic mounts without any roof penetration. This non-invasive method preserves the waterproof membrane and maintains roof warranties.

2. Flat Open Ground Areas
The solar panel racking system performs excellently on agricultural land, industrial plots, or commercial campuses. For ground installations, expansion bolts can fasten the solar mounts directly to concrete foundations, reducing material costs and installation time.

3. Flexible Fixation Methods

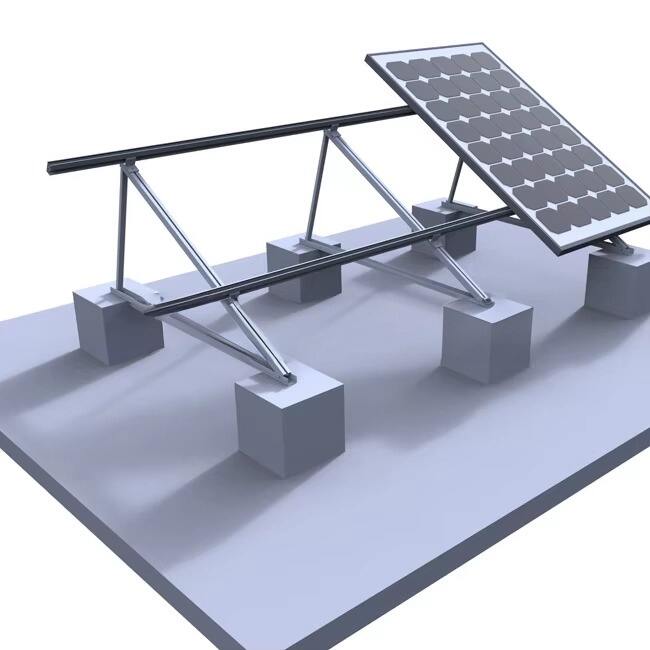

• Ballasted Fixation: Pre-cast concrete blocks hold the solar panel support structure using only weight for stability—perfect for roofs where penetration is prohibited.
• Mechanical Fixation: Expansion bolts anchor the photovoltaic racking system directly to the substrate, ideal for high-wind regions or when minimizing ballast weight.

4. Scalable for Any Project
From small retail rooftops to large ground-mounted solar farms, this modular solar mounting system adapts easily to growing energy needs.

With both ballasted and mechanically fixed options, the SFS-FR-03 photovoltaic support structure delivers reliable versatility for every project.

FAQ – Frequently Asked Questions：

Necessary info. for Sunforson to design and quote the solar mounting structures:

1. Solar Panels Dimension: __mm (Length) x__mm (Width) x__mm (Thickness)

2. The layout of the solar panels __Nos in a row

3. How many panel are you going to install? __Nos

4. Maximum Wind load: __m/s or __km/h or __mph

5. Maximum Snow Load: __KN/m2 (if have)
6. Solar mount tilt angle: __degree

7. Fixed type: Ballast with cement blocks or fix with expansion screws
