Factory Wholesale Solar Mounting System Balcony Solar Panel Bracket

-Panel: Suitable for any type of panels
-Survival wind speed: Up to 35m / s
-Design snow pressure:  Up to 0.5KN / m2
-Tilt Angle: Customized
-Component direction: Landscape orientation

  • Overview
  • Recommended Products
Factory Wholesale Solar Mounting System Balcony Solar Panel Bracket details
Factory Wholesale Solar Mounting System Balcony Solar Panel Bracket supplier

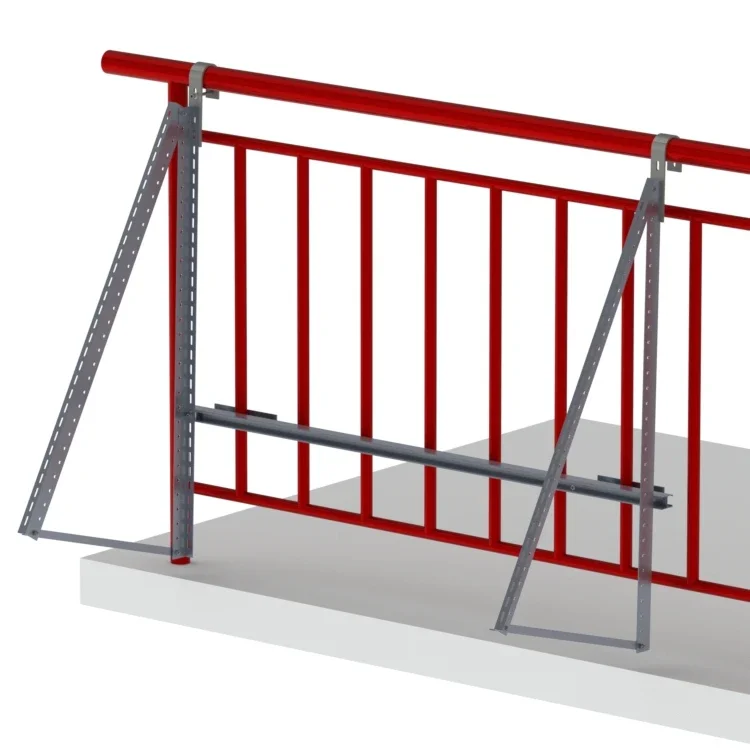

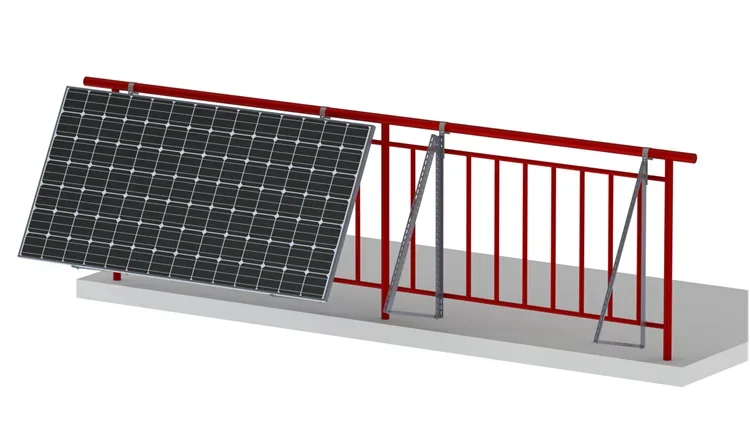

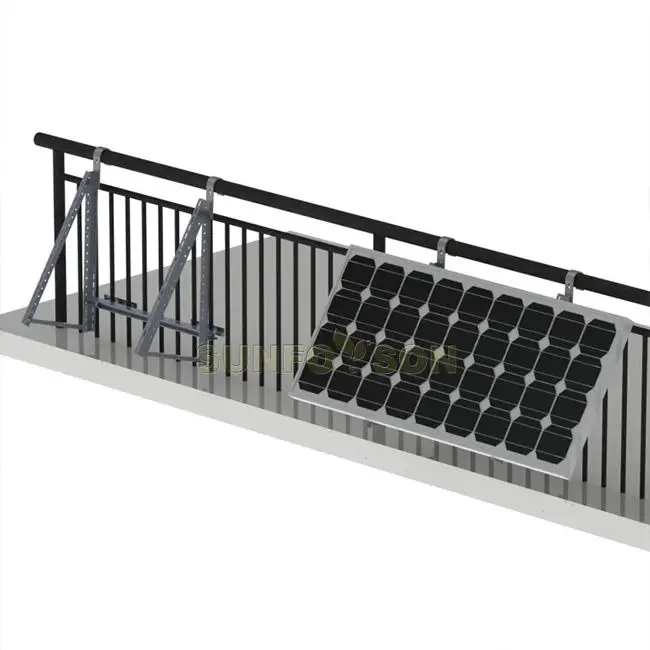

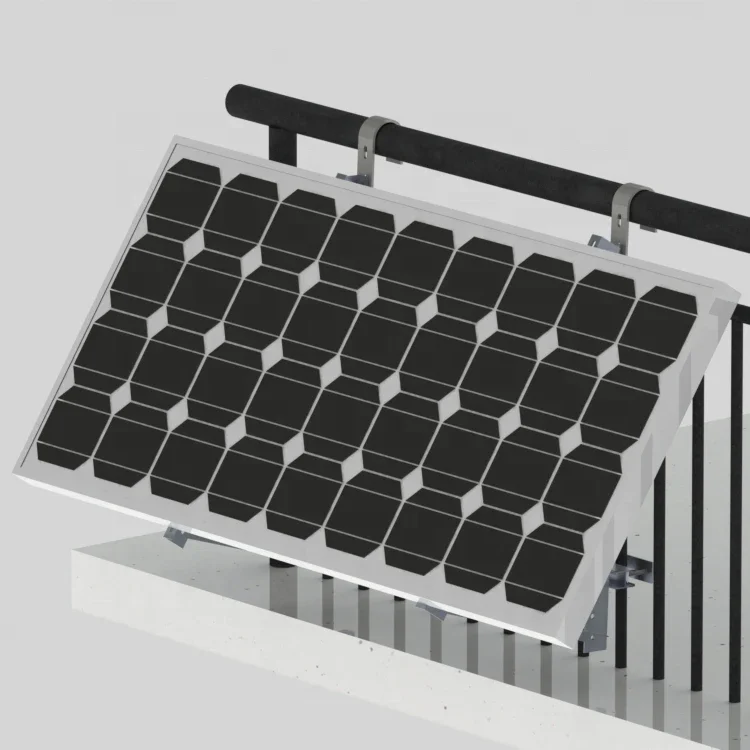

SFS-YT-02 SunRack Balcony Mounting System

SFS-YT-02 is a bracket mounted on a balcony,mainly suitable for family balconies.Angle selection diversification can adapt to different light angles.With the advantages of small environmental impact,convenient and flexible installation,it is welcomed by the majority of customers.

Products Strengths of Sunforson technology

1. Suitable for fences of various sizes.
Upgraded wire rope fixing method,it can suitable for any size of fences.

2.Quick installation saves time

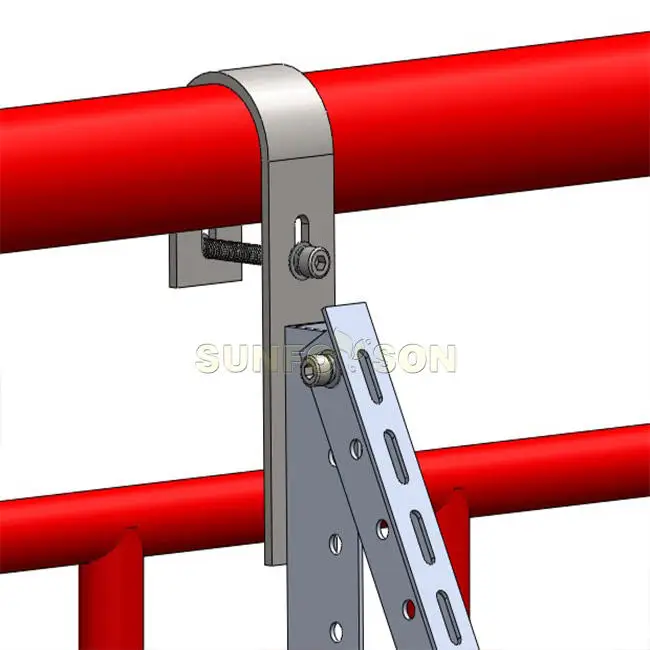

With an efficient installation method, the bracket is fixed to the balcony railing using a
portable bracket with hooks and wire rope, without drilling holes.

3.Professional design, stable structure
Product design by experienced designers, the design of the system, stable structure, mature technology, can meet AS/ NZS1170, and save costs for customers.

4.A beautiful appearance

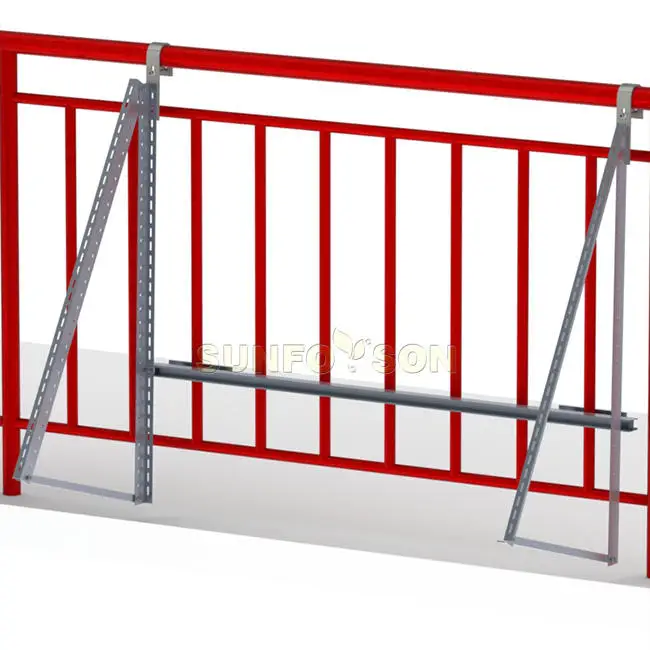

In order to make the balcony bracket a beautiful decoration, the bracket system uses a unique
tripod design to achieve a unique look, and can be mounted on most of the round tubes using hooks.(The diameter of the round tube must be less than 60cm)

Panel Suitable for any type of panels
Module Orientation Horizontal
Tilted Angle Customized
Certification CE
Wind load 35m/s
Snow load 0.5kN/m2
Material Aluminum alloy,stainless steel
Warranty 10 years on aluminum material
Survival wind speed  Up to 35m / s
Design snow pressure Up to 0.5KN / m2
Component direction Landscape orientation
Design Standards  BS6399
Structural materials  Aluminum, stainless steel
Life Design Life for 25 years, quality assurance for
10 years
Factory Wholesale Solar Mounting System Balcony Solar Panel Bracket details
Factory Wholesale Solar Mounting System Balcony Solar Panel Bracket manufacture

Factory Wholesale Solar Mounting System Balcony Solar Panel Bracket supplier
Factory Wholesale Solar Mounting System Balcony Solar Panel Bracket factory
Factory Wholesale Solar Mounting System Balcony Solar Panel Bracket factory
Factory Wholesale Solar Mounting System Balcony Solar Panel Bracket manufacture
Certification of Solar Roof Rack for Home Solar System- Inquire with suppliers
Our customers visiting and PV EXPO
Factory Wholesale Solar Mounting System Balcony Solar Panel Bracket supplier
Factory Wholesale Solar Mounting System Balcony Solar Panel Bracket factory
Factory Wholesale Solar Mounting System Balcony Solar Panel Bracket supplier
Factory Wholesale Solar Mounting System Balcony Solar Panel Bracket details
