SFS-CP-04B SunRack Concrete Based Ground Mounting
- SFS-CP-04B SunRack sun shed solar mountingWidely used in the home garden, balcony, not only can provide users with a comfortable shading environment, but also can effectively transform sunlight into electricity.
- Overview
- Recommended Products
- SFS-CP-04B SunRack sun shed solar mountingWidely used in the home garden, balcony, not only can provide users with a comfortable shading environment, but also can effectively transform sunlight into electricity.
- Dual functionality – Provides vehicle shading while generating clean solar energy.
- Efficient space utilization – Makes productive use of existing parking areas.
- Cost-saving benefits – Reduces electricity costs and improves return on investment.
- Weather protection – Protects vehicles from sun, rain, and snow.
- Scalable design – Easily expandable to match different parking layouts and project sizes.

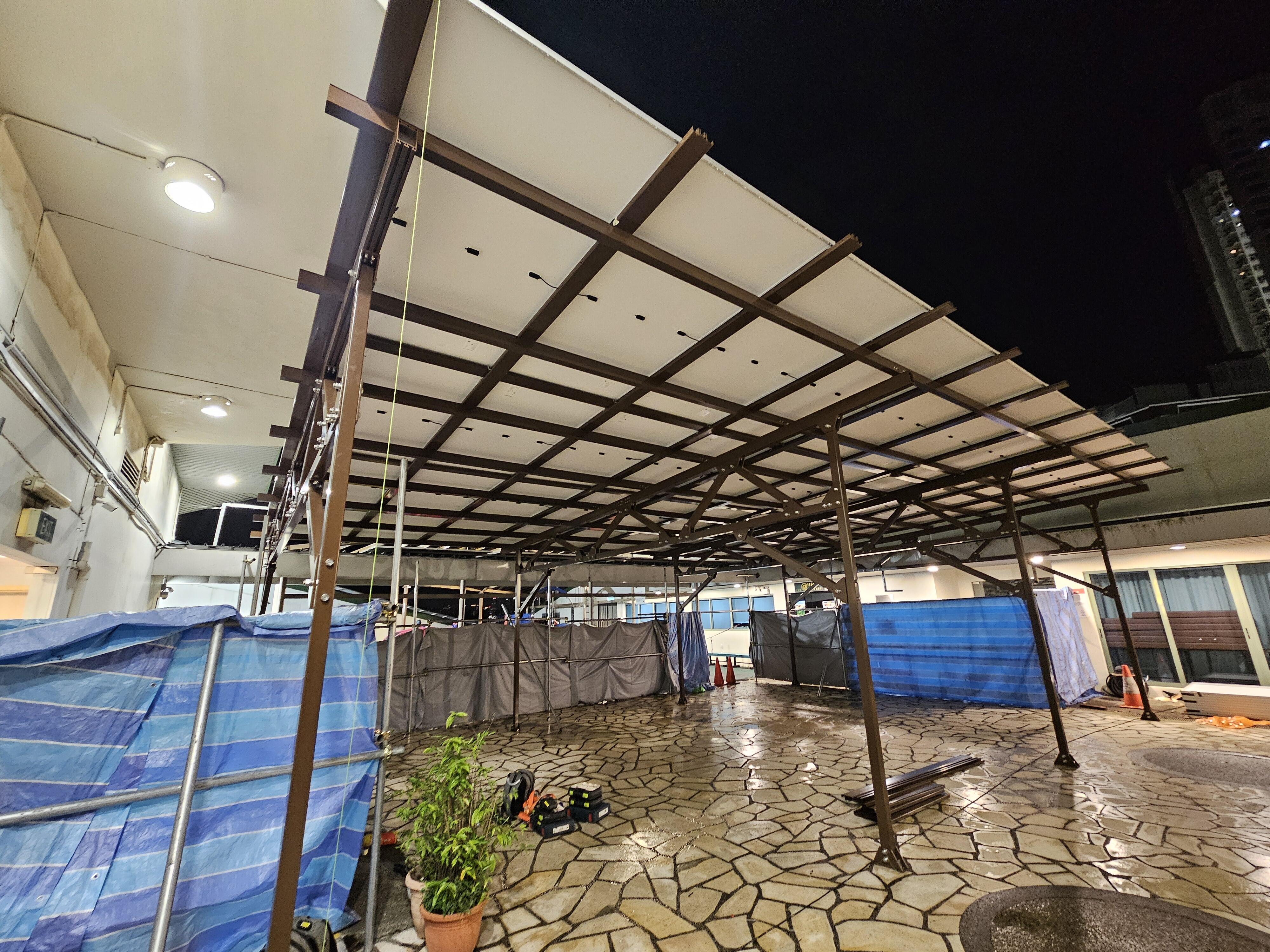

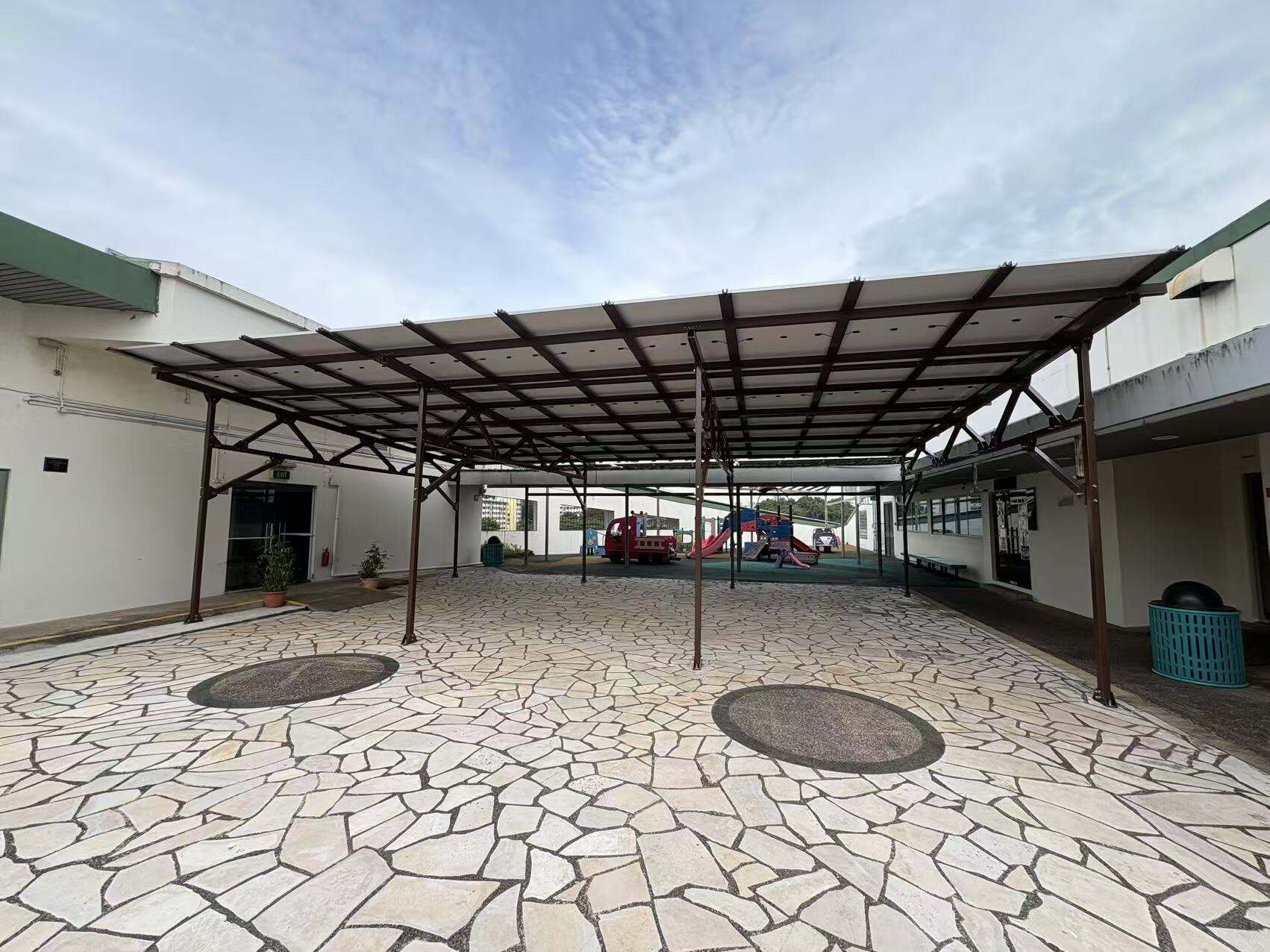

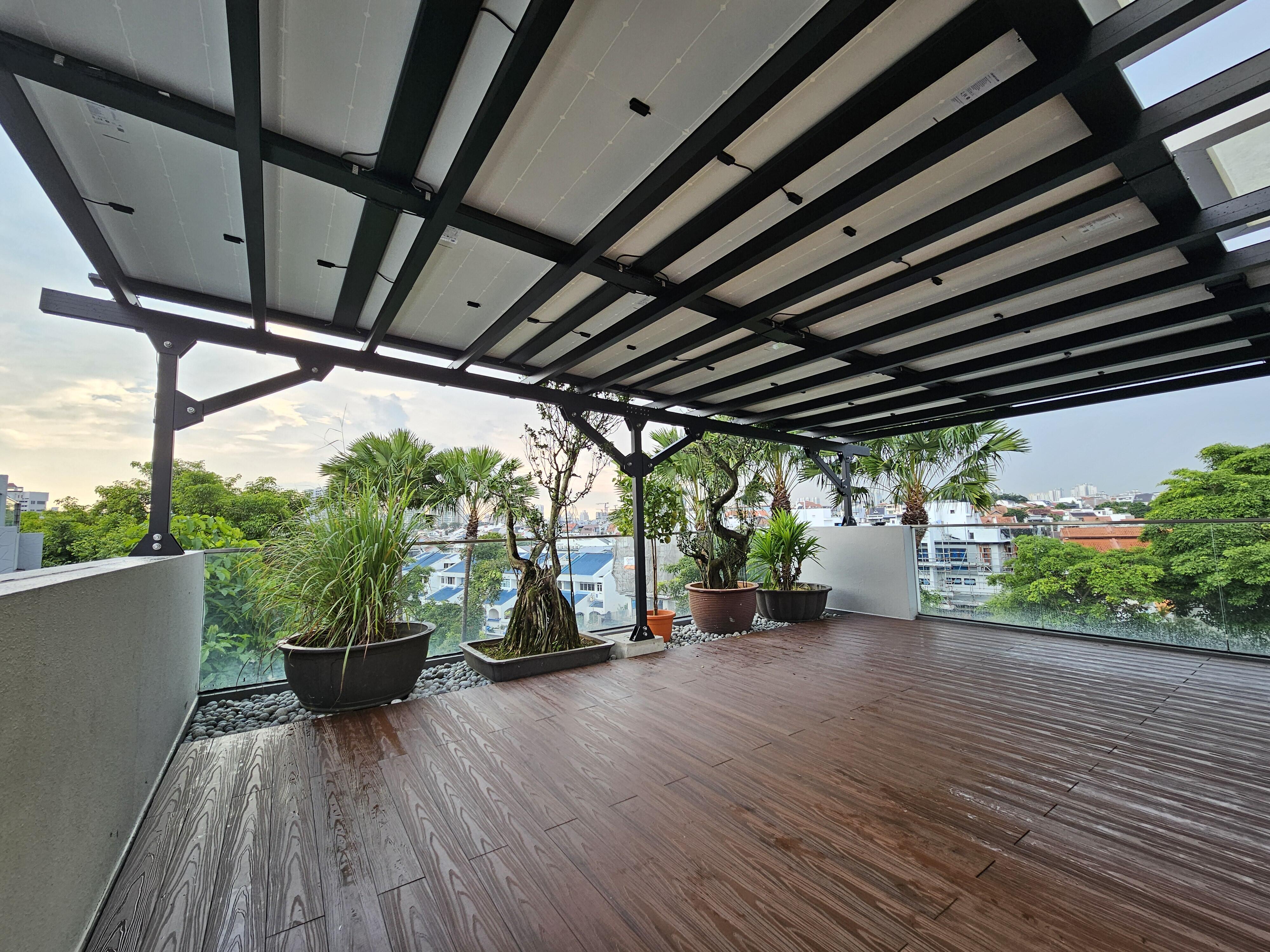

- Completed Installation – Real Project View
SFS-CP-04B SunRack Concrete Based Ground Mounting
Specification
Place of Origin: |
Fujian,China |
Brand Name: |
Sunforson |
Model Number: |
SFS-CP-04B |
Installation Site |
Open Ground |
Installation Angle |
5° or 10° or 15° |
Building Height |
2~3m |
Material |
Aluminum Alloy (AL6005-T5) |
PV Modules |
Framed or Frameless Panel |
Module Orientation |
Horizontal or vertical |
Module Width |
Any Size |
Survival wind speed |
Up to 50m/s |
Survival snow pressure |
Up to 1.2kN/m2 |
Certification Standards |
BS EN 1991-1-4:2005/ASCE7/DPT1311-50 |
Warranty |
10 years on material |
Packaging Details: |
Customized |
Delivery Time: |
25 days |
Payment Terms: |
30% T/T in advance as deposit, 70% T/T balance before shipment |
Features of a solar carport：
Solar Carport (Sun Canopy) Application Scenarios：
Product Compatibility & Advantages:
Designed specifically for solar carports, the structure supports various module sizes. It delivers stable power generation while providing reliable shading and weather protection.
Core Matching Point:
Carport dedicated: dual-function design + space-efficient layout + stable structure
FAQ – Frequently Asked Questions
Q1: What types of solar panels are compatible with this system?
A: It is compatible with most standard framed solar modules.
Q2: Is professional installation required?
A: Professional installation is recommended to ensure safety and compliance with local regulations.
Q3: What is the warranty period?
A: Standard warranty is 10 years, with a design service life of up to 25 years.
Q4: Can the system be customized?
A: Yes, customization is available based on parking layout, wind load, and snow load requirements.
Q5: Is it suitable for high wind or heavy snow areas?
A: Yes, the system is designed and tested to meet wind and snow load standards.
Q6: Are all accessories included?
A: Yes, rails, clamps, fasteners, and accessories are supplied as a complete system.
