SunRack Pitched Roof Solar Mounting System
Customized Solar Mounting Solution for Metal Roof, Tile Roof, Shingle Roof, etc.
-Item No.: SFS-PR-01
-Panel: Suitable for any panel
-Module Orientation: Horizontal/Vertical
-Structure Material: AL6005-T5 And SS304
- Overview
- Quick Inquiry Info
- Recommended Products

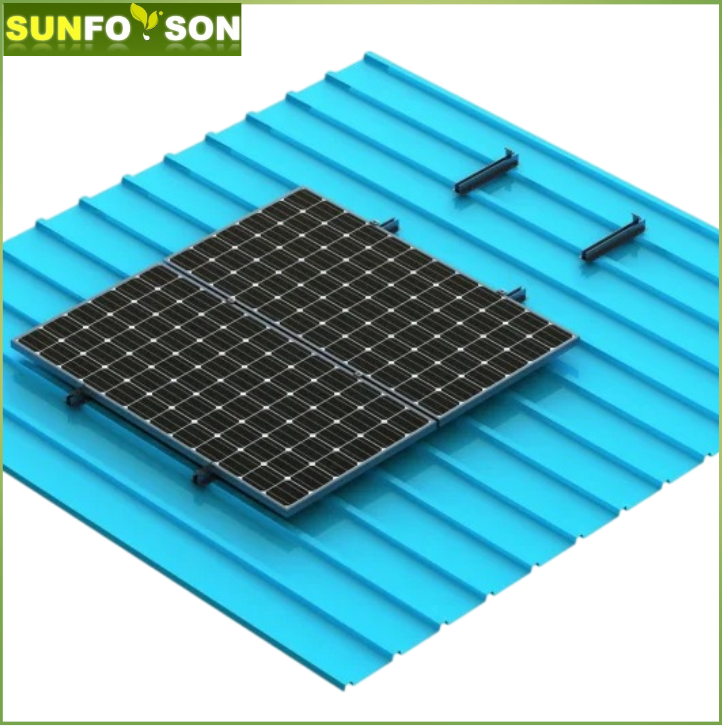

SFS-PR-01 SunRack Pitched Roof Solar Mounting System

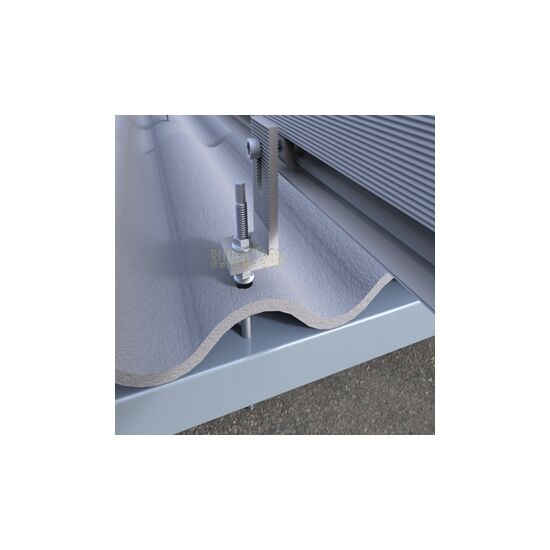

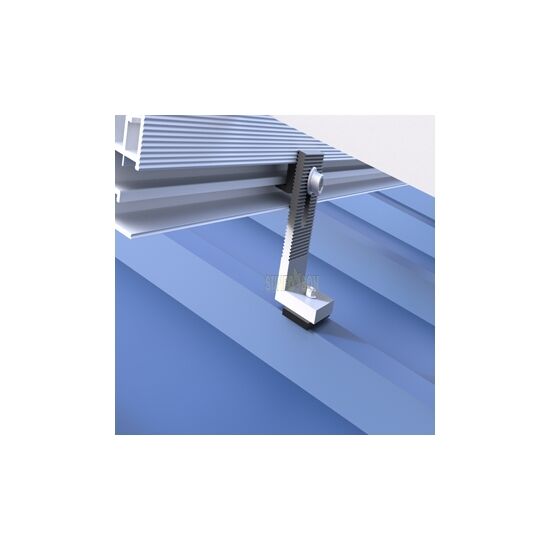

With a variety of different roof brackets, the SunRack tin roof mounting system can meet various roof demands with or without penetrating the roof. Sunforson has an excellent engineering team and quality management system to provide the perfect service.
1. Easy Installation:
The innovative Sunforson solar rail and N- modules have greatly simplified the installation of PV modules. The System can be installed with a single Hexagon Key and standard tool kit. The Solar Roof system is aided by a very high level of preassembly. The N module and unique rail extension method greatly reduce installation time.
2. Great Flexibility:
With the Sunforson Solar Roof, framed photovoltaic modules can be easily mounted on pitched roofs. The Solar Roof system has mounting accessories designed for application on almost every roof cladding available, with a unique rail and excellent compatibility. Designed as a universal racking system, framed modules from all the popular manufacturers can be used.
3. High Accuracy:
Without the need for on-site cutting, the use of our unique rail extending allows the system to be installed with millimeter precision accuracy.
4. Excellent Adaptability:
The height adjustment of the rails from Sunforson allows a level PV array to be established, no matter how uneven the roof is. Engineered to a high standard, Sunforson solar roof is made to the highest standard, safe and strong design to comply with BS 6399-2-1997.
5. Maximum Lifespan:
All components are made of quality extruded aluminum and stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
6. Guaranteed Durability: Maximum Lifespan: Sunforson provides a 10-year guarantee on the durability of all components used.

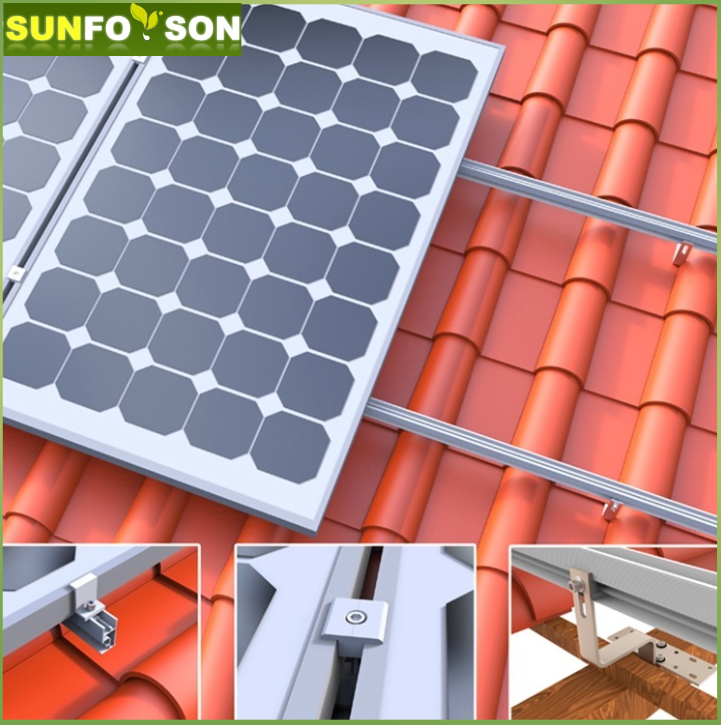

SunRack Roof Mounted solution, accommodating a wide range of modules, framed or frameless, is suitable for most types of roofs with different roof hooks. The innovative SunRack aluminum rail and G&N lock module enable significantly faster and easier installation.

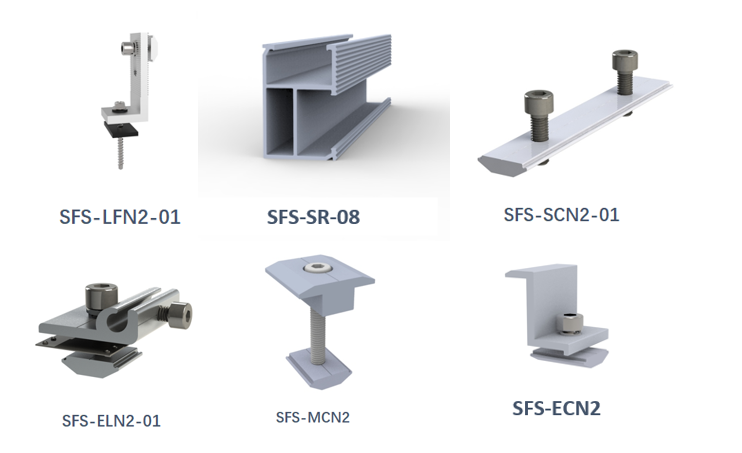

Overview of system components:

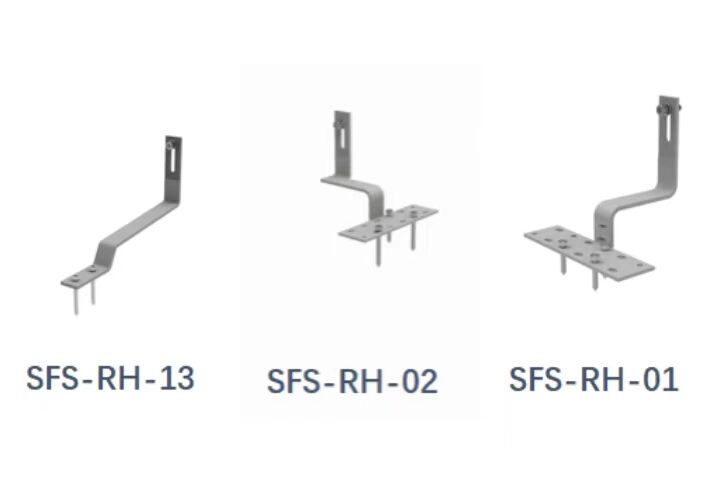

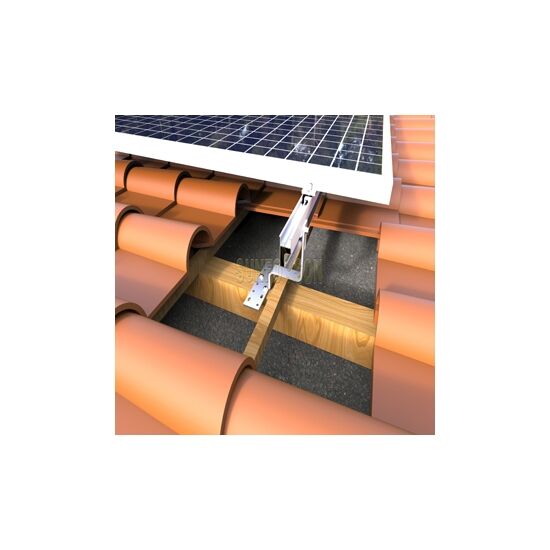

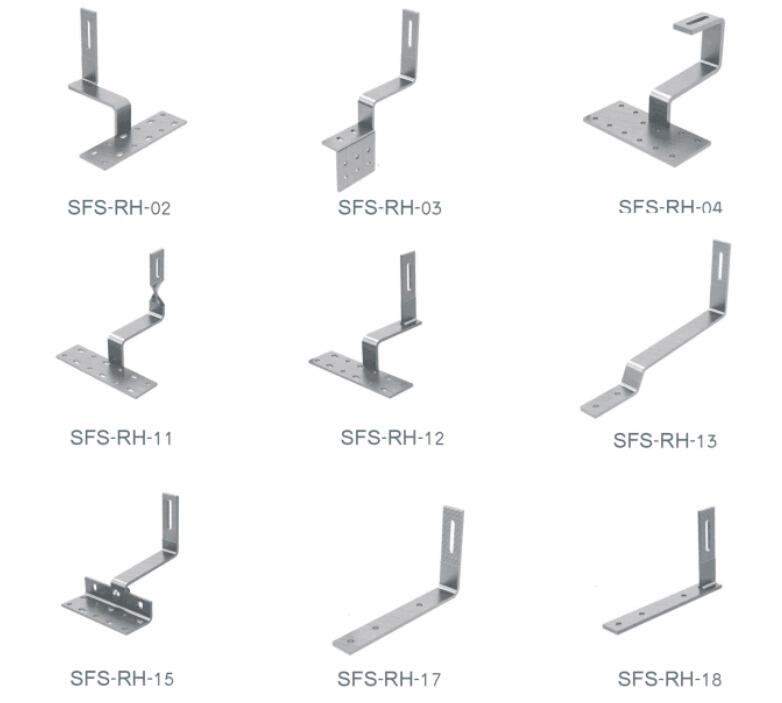

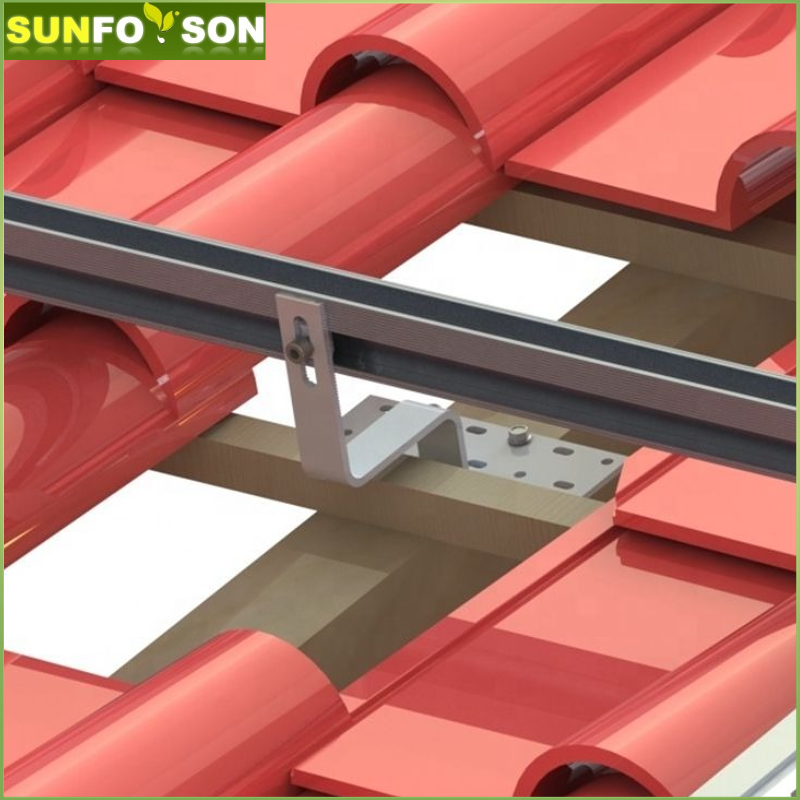

Tile Roof Hook:
If you need a detailed structure drawing and a quotation sheet, please provide the necessary info below to help our engineer design:
Roof Type: Tin Roof, Tile Roof, Shingle Roof, or Concrete?
Fixed Solution: Hook, L foot, Clamp, Ballast, or Tripod?
Wood or Steel Purin Span:_____mm
Roof sheeting cross-section drawing or photo
Solar panels dimension: __mm (L) x __mm (W) x __mm (T), Power: __W, Qty:___, Frame or Frameless ?
The layout of the solar panels: __rows x__columns, horizontal or vertical orientation
Local Maximum Wind load: __m/s or __km/h or __mph
Local Maximum Snow Load: __KN/m²(if have)
